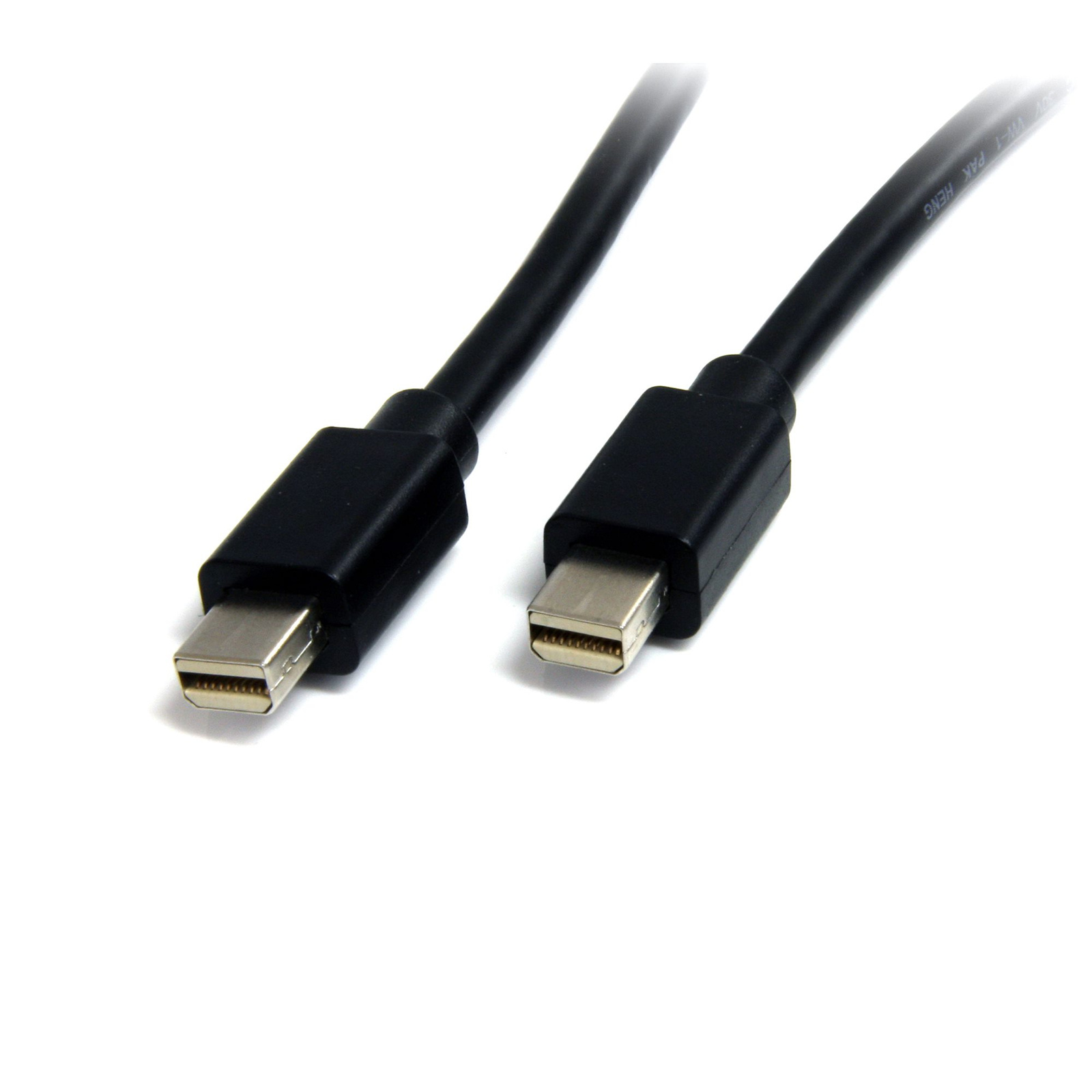

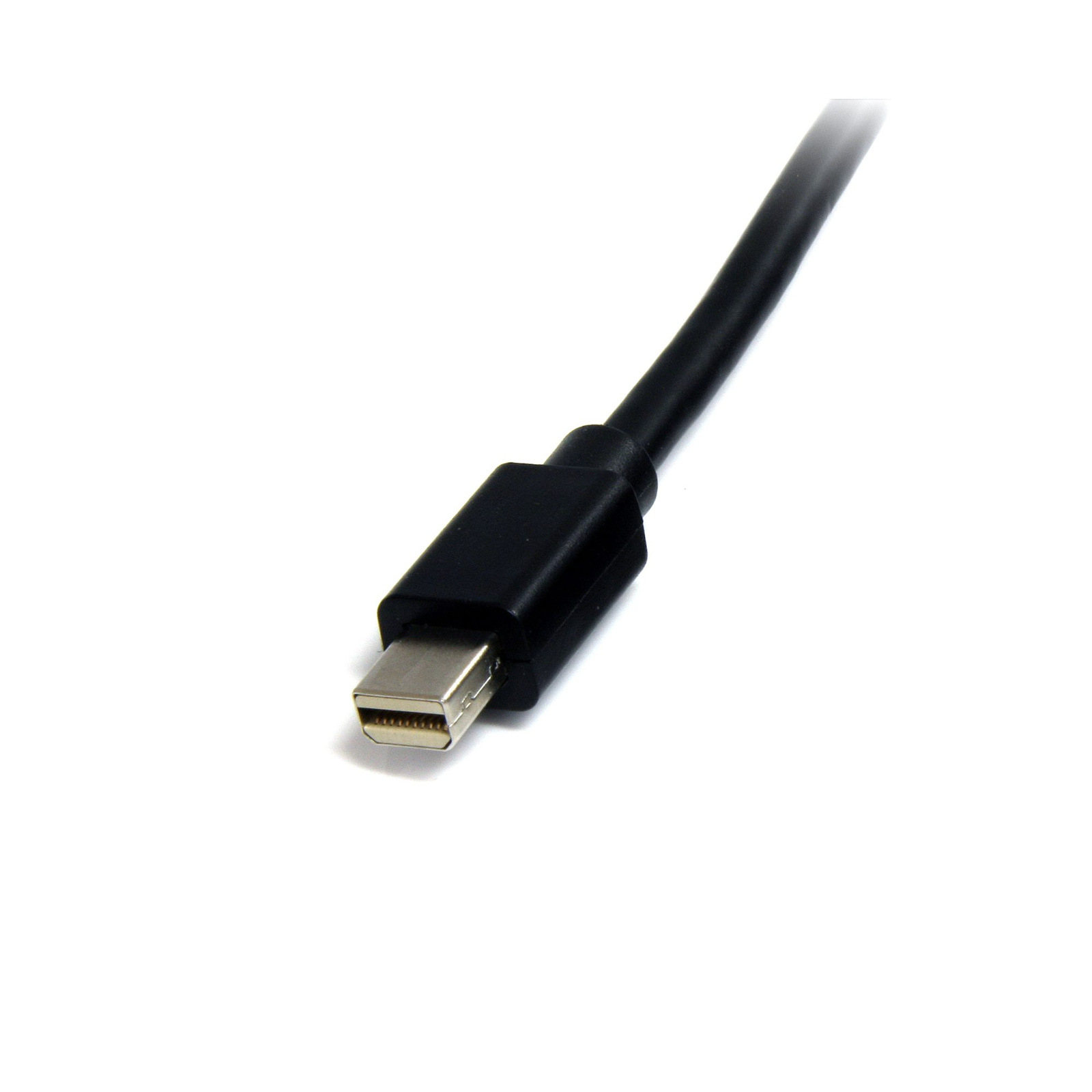

StarTech.com MDISP2M 2m Mini DP Cable - M/M
StarTech.com MDISP2M 2m Mini DP Cable - M/M
- Brand: StarTech.com
- MPN: MDISP2M
- Part #: CABSTT1991366
- UPC:
- Brand: StarTech.com
- MPN: MDISP2M
- Part #: CABSTT1991366
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular DisplayPort Cables





StarTech.com MDISP2M 2m Mini DP Cable - M/M
- Brand: StarTech.com
- MPN: MDISP2M
- Part #: CABSTT1991366

Product URL: https://www.pbtech.com/product/CABSTT1991366/StarTechcom-MDISP2M-2m-Mini-DP-Cable---MM
Features
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and monitor
- MINI DISPLAYPORT 1.2 CABLE: This 2m (6.6ft) Mini DisplayPort v1.2 cable supports 4K x 2K video (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- COMPATIBILITY NOTE: This is not a Thunderbolt cable and is not compatible with Thunderbolt peripherals such as Docking Stations, Displays or External Enclosures; It can however be used to connect a Thunderbolt 2 laptop to a Mini-DisplayPort monitor
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevents fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding
- QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity & reliability; Superior EMI shielding with double sided copper foil provides higher quality video and audio; mDP cable is Backward compatible with DP1.1
The MDISP2M 2m Mini DisplayPort™ 1.2 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.
The mDP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDISP2M is backed by StarTech.com's Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
Applications
Connect your Mini DisplayPort laptop or desktop to a Mini DisplayPort compatible display
Specifications
Connector(s)
Connector A
1 - Mini-DisplayPort (20 pin)
Connector B
1 - Mini-DisplayPort (20 pin)
Hardware
Number of Conductors
19
Connector Plating
Nickel
Cable Jacket Material
PVC - Polyvinyl Chloride
Cable Shield Material
Aluminum-Mylar Foil with Braid
Fire Rating
CMG Rated (General Purpose)
Performance
Maximum Digital Resolutions
4k x 2k (3840 x 2160) @ 60Hz
Physical Characteristics
Product Width
11.5 mm [0.5 in]
Product Height
0.8 cm [0.3 in]
Colour
Black
Connector Style
Straight
Wire Gauge
32 AWG
Cable Length
2 m [6.6 ft]
Product Length
2.0 m [6.6 ft]
Weight of Product
64.0 g [2.3 oz]
What's in the Box
Included in Package
1 - 2m Mini DisplayPort 1.2 Cable - M/M
