StarTech.com ICUSB2322F 1-Port - FTDI - COM Retention USB to Serial Cable FTDI USB to Serial Adapter Cable with COM Retention - Bidirectional USB to RS232 DB9 Serial Adapter
- Brand: StarTech.com
- MPN: ICUSB2322F
- Part #: CABSTT690140
- UPC:065030843492
Product URL: https://www.pbtech.com/product/CABSTT690140/StarTechcom-ICUSB2322F-1-Port---FTDI---COM-Retenti
Features
Add two RS232 serial ports with COM retention to your laptop or desktop computer through USB
- CUSTOMIZABLE SOLUTION: This USB serial hub features an FTDI chipset, making it highly customizable and compatible, and the ideal solution for any setup; Integrated 2500Vrms Optical Isolation Circuits
- MULTI-USE FUNCTIONALITY: This versatile USB to serial RS232 adapter is perfect for a range of applications, from digital signage to connecting point-of-sale systems and barcode scanners
- COMPACT DESIGN: Designed with a small form factor, this serial RS232 converter is USB powered and requires no bulky power adapters or an outlet; Wall mountable design
- EASY INSTALLATION: This serial adapter ensures easy installation and operation with COM port retention that provides robust serial connectivity for legacy devices

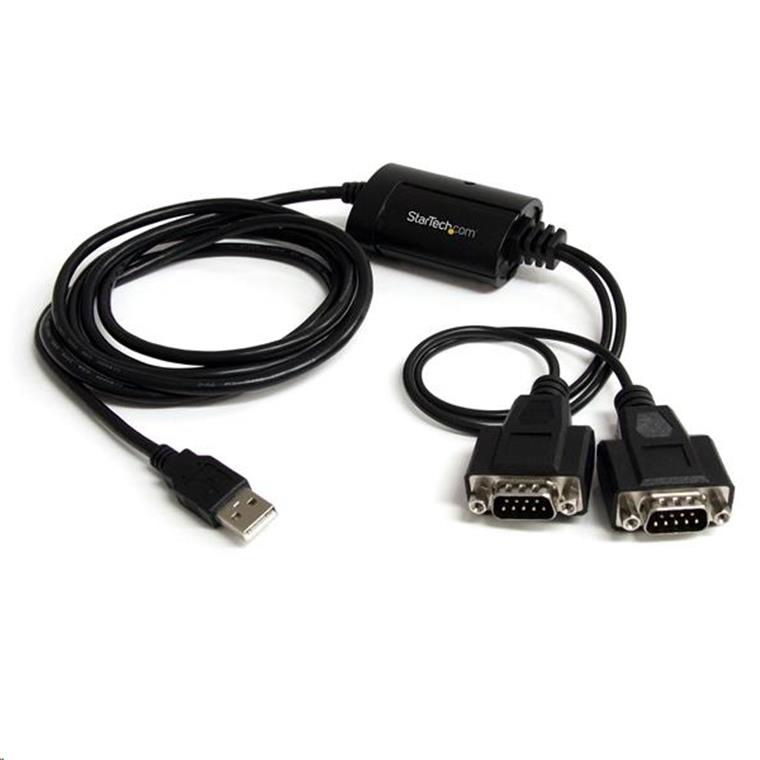

The ICUSB2322F 2-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into 2 RS232 serial DB9 ports to connect, monitor and control your serial devices.
This compact adapter features COM retention, allowing the same COM port values to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. Unlike most USB-serial adapters, this one uses the FTDI chipset, which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
This USB-serial adapter is compatible with a broad list of Operating Systems, including Windows®, Windows CE, Mac OS and Linux, making this product the perfect solution for integrating into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- Perfect for IT Administrators looking to add legacy functionality to newer laptops, PCs and servers that lack an integrated RS232 port
- Connect, monitor and control industrial/automotive sensors and equipment
- Connect bar code scanners, receipt printers and other point of sale devices
- Connect a satellite receiver, RS232 serial modem, or PDU
- Connect and program LED and Digital signage boards with serial communication ports
The StarTech.com Advantage
- Simple installation and operation with COM port retention provides robust connectivity for serial devices
- Portable USB-Powered design requires no bulky power adapter or outlet
- The FTDI chipset is highly customizable and compatible, making it the ideal solution for any setup
Specifications
Connector(s)
Connector Type(s)
2 - DB-9 (9 pin, D-Sub)
1 - USB 2.0 Type-A (4 pin, 480Mbps)
Environmental
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-20°C to 85°C (-4°F to 185°F)
Humidity
5~95% RH
Hardware
Ports
2
Interface
Serial
Bus Type
USB 2.0
Port Style
Cable Adapters
Chipset ID
FTDI - FT2232D
Packaging Information
Package Height
1.7 in [4.2 cm]
Package Length
8.3 in [21.1 cm]
Shipping (Package) Weight
10.0 oz [284.0 g]
Package Width
5.7 in [14.6 cm]
Package Quantity
1
Performance
Serial Protocol
RS-232
Max Baud Rate
921.6 Kbps
Data Bits
7, 8
FIFO
128 Bytes
Parity
None, Odd, Even, Mark, Space
Stop Bits
1, 2
Physical Characteristics
Weight of Product
5.5 oz [156 g]
Color
Black
Material
Plastic
Cable Length
6.0 ft [1.8 m]
Product Length
7.0 ft [2.1 m]
Product Width
1.8 in [4.5 cm]
Product Height
0.8 in [2 cm]
Power
Power Source
USB-Powered
Software
OS Compatibility
Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11, 11 ARM
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
macOS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0, 15.0, 26.1
Linux 2.4.x and up - LTS Versions only
Special Notes / Requirements
System and Cable Requirements
One available USB 1.1 (or better) port
Compatibility
Windows 11
Windows 11 ARM
Windows 10
Windows 8
Windows 7
Windows Server 2022
Windows Server 2019
Windows Server 2016
Windows Server 2012
macOS Sequoia (15.0)
macOS Sonoma (14.0)
macOS Tahoe (26.0)
macOS Ventura (13.0)
macOS Monterey (12.0)
macOS Big Sur (11.0)
macOS Catalina (10.15)
macOS Mojave (10.14)
macOS High Sierra (10.13)
macOS Sierra (10.12)
Linux
Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11, 11 ARM
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
macOS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0, 15.0, 26.1
Linux 2.4.x and up - LTS Versions only

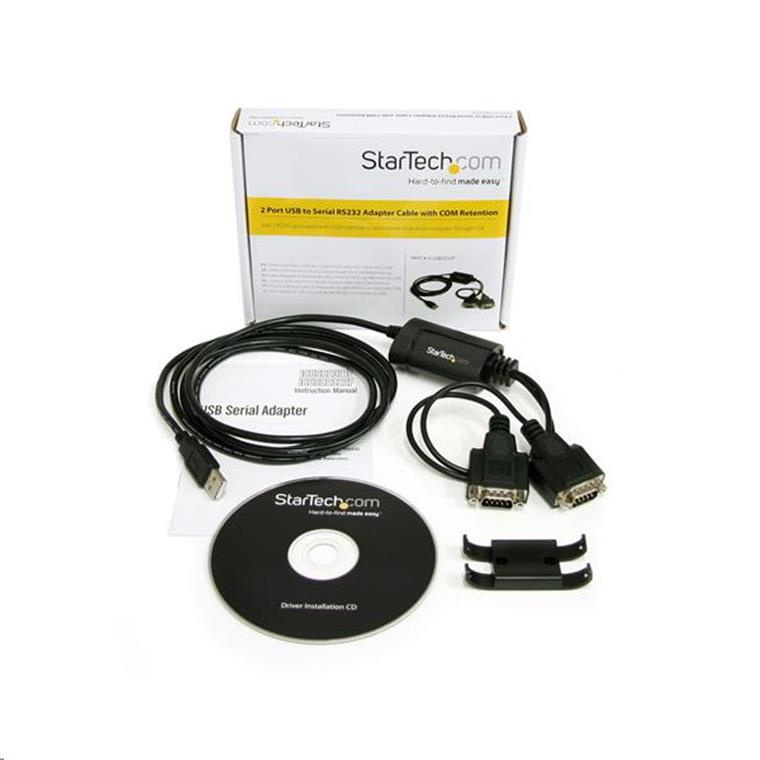

What's in the Box
Included in Package
1 - 2 Port USB to RS-232 Serial Adapter
1 - Wall Mounting Kit
1 - Driver CD
1 - Instruction Manual
