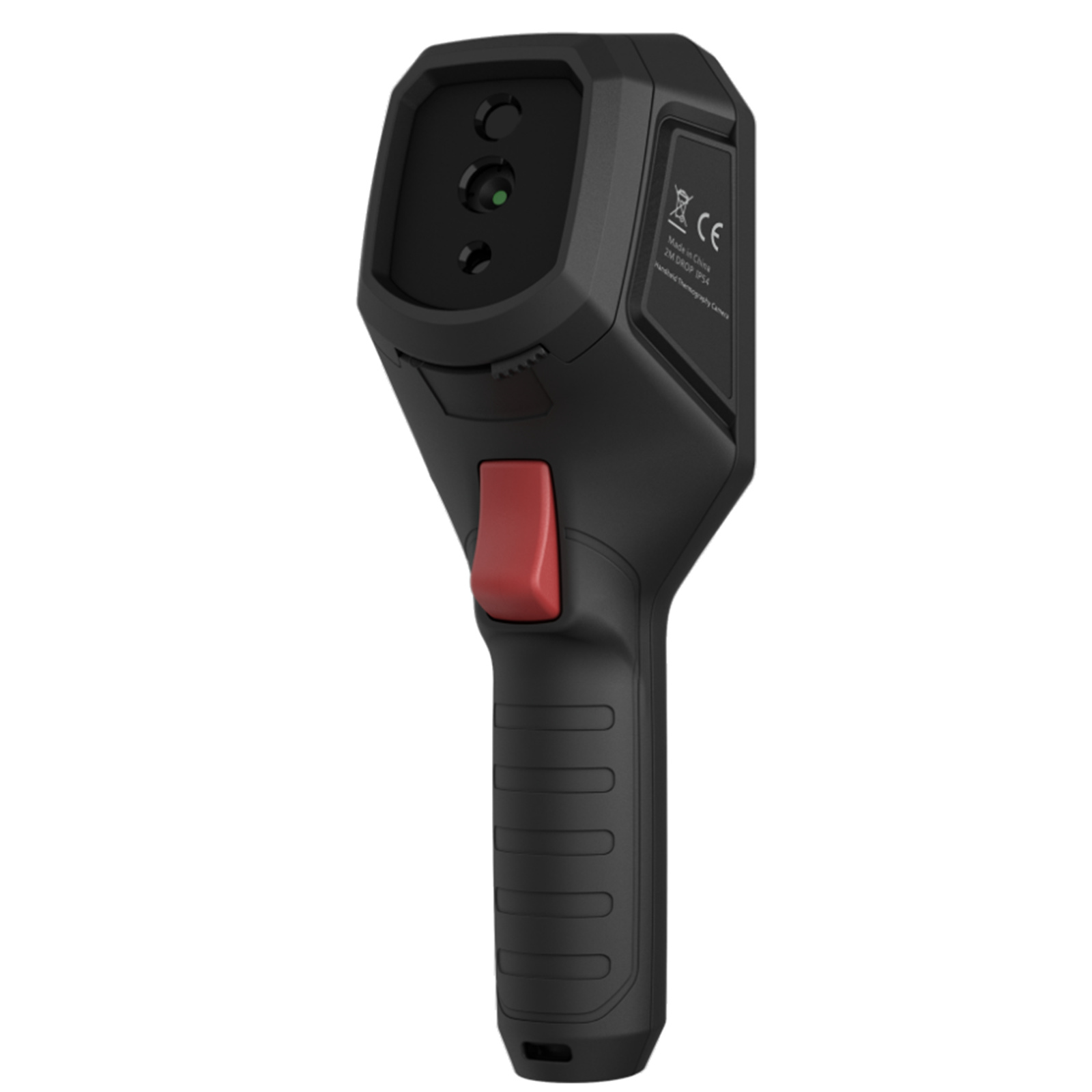

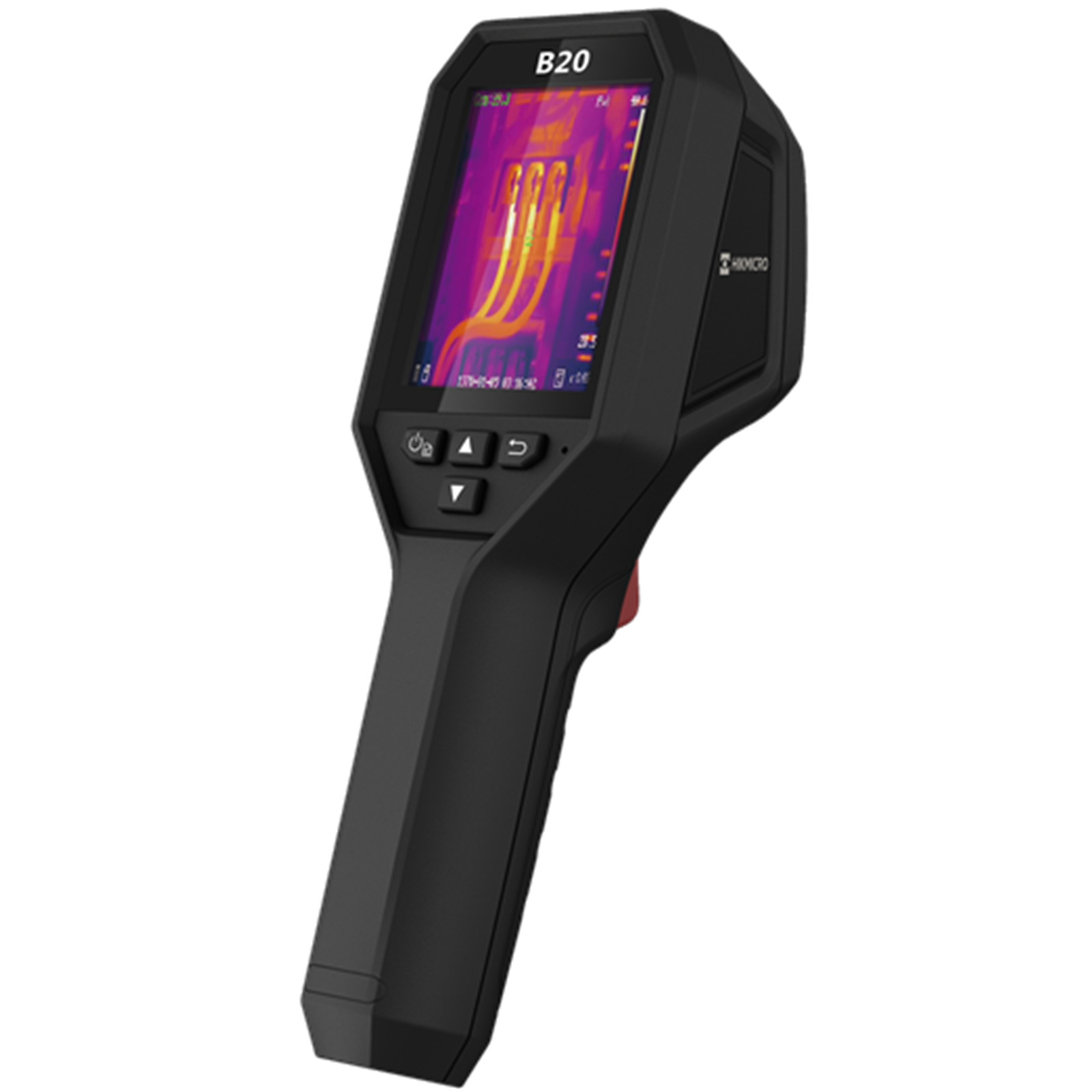

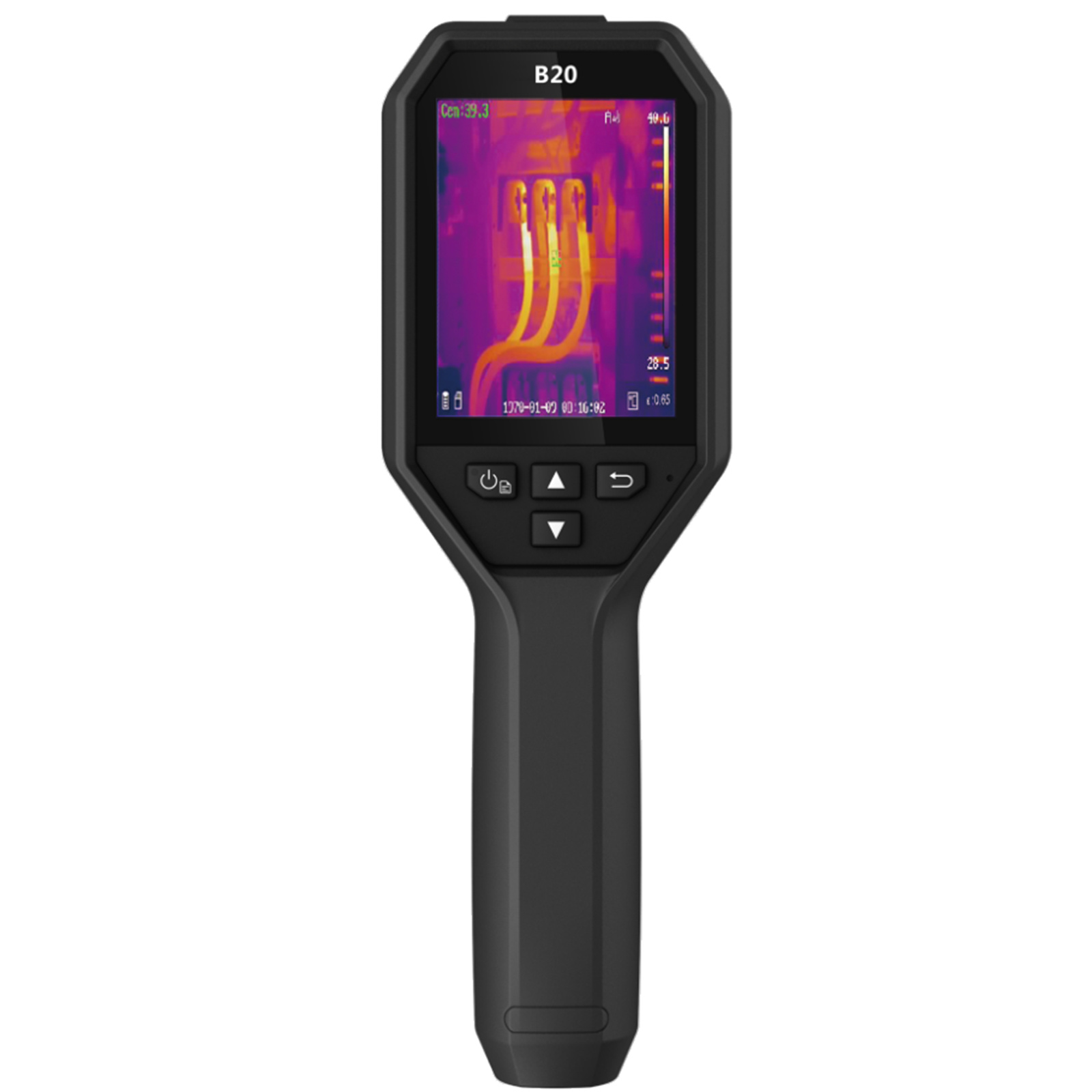

HIKMICRO B20 Compact Hand Held Wi-Fi Thermal Imaging Camera. Thermal Resolution 256x192(49,152pixels) Temp Range -20 C to 350 C Accuracy 2 C or 2%. Center Spot, Hot Spot, Cold Spot. Up to 6 hours.

PB Tech price
PB Tech price
AUD $ 1,162 .71
$ 1,162 .71
$1,162.71  +GST
$1,162.71

HIKMICRO B20 Compact Hand Held Wi-Fi Thermal Imaging Camera. Thermal Resolution 256x192(49,152pixels) Temp Range -20 C to 350 C Accuracy 2 C or 2%. Center Spot, Hot Spot, Cold Spot. Up to 6 hours.

  • Brand: HIKMICRO
  • MPN: B20
  • Part #: CAMHKM1003
  • UPC:
PB Tech price
AUD $ 1,162 .71 $ 1,162 .71


Delivery: Order now and it ships on 10 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$1,162.71  +GST
$1,162.71

Features

HIKMICRO B20 Compact Hand Held Wi-Fi Thermal Imaging Camera. Thermal Resolution 256x192 (49,152 pixels) Temp Range -20 °C to 350 °C Accuracy ±2 °C or ±2%. Center Spot, Hot Spot, Cold Spot. Up to 6 hours.

HIKMICRO HM-TP52-3AQF/W-B20 is designed for temperature measurement to find invisible faults. It's equipped with a 256 × 192 resolution HIKMICRO thermal detector and a 2MP optical detector. The thermography ranges from -20°C to 550°C, which fits most situations. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance and ensures safety. The device is mainly applied to various industries, such as building, HVAC, and auto industries.

- Thermal resolution: 256 × 192 (49,152 pixels)

- NETD: < 40mK (@ 25°C, F# = 1.0)

- Temperature measurement range: -20°C ~ 550°C

- Accuracy: Max. (± 2°C, ± 2%), for ambient temperature 15°C ~ 35°C and object temperature above 0°C

- Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point

- 25 Hz image frequency

- 3.2" LCD screen display

- Up to 6 hours of continuous running

Specifications

Thermal Module

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

IR Resolution

256 ~ 192 (49,152 pixels)

Pixel Pitch

12µm

Spectral Range

8 ~ 14µm

NETD

< 40mK (@ 25°C), F# = 1.0

Focal Length

3.6mm

FOV (Field of View)

37.2° ~ 50.0°

Image Frequency

25Hz

Focus

Fixed

IFOV (Spatial Resolution)

3.3 mrad

Aperture

F1.0

Minimum Focus Distance

0.3m

Optical Module

Picture Resolution

1600 ~ 1200 (2MP)

FOV

55°~ 42°

Focal Length

2mm

Image Display

Display

240 ~ 320 Resolution, 3.2" LCD Screen

Color Palettes

White Hot, Black Hot, Rainbow, Ironbow

Image Modes

Thermal/Optical/Fusion/PIP

PIP

Thermal Picture in Optical Picture

Fusion

Thermal Picture and Optical Picture Combined

Measurement and Analysis

Object Temperature Range

-20°C to 550°C

Accuracy

Max. (± 2°C, ± 2%), for ambient temperature 15°C to 35°C  and object temperature above 0°C

Measurement Presets

Center Spot, Hot Spot, Cold Spot, Point Presets, Off

High Temperature Alarm

Audible and Visual Warning

Storage

Storage Media

EMMC (16GB)

Image Storage

Capacity 90,000 Images

Image File Format

JPEG with Measurement Data Included

Functions

LED Light

Yes

Wi-Fi

802.11 b/g/n (2.4GHz)

UVC Cast Screen

Yes

Level/Span

Auto/Manual

Power System

Power Supply

3.7 VDC/ 0.5A

Power Consumption

1.8W

Battery Type

Rechargeable Li-ion Battery

Battery Operating Time

6 Hours Continuous Running

Battery Charging Time

3 Hours

General

Menu Language

21 Languages - English, German, French, Spanish (Spain), Portuguese (Portugal), Italian, Czech, Slovak, Polish, Hungarian, Romanian, Dutch, Danish, Norwegian, Finnish, Swedish, Russian, Turkish, Japanese, Korean, Chinese (Traditional)

Working Temperature Range

-10°C ~ 50°C

Storage Temperature Range

-20°C ~ 60°C

Protection Level

IP54

Drop Test Height

2m

Interface

USB Type-C

Weight

Approx. 380g

Dimension

221.7mm ~ 73.5mm ~ 80.6mm

Tripod Mounting

UNC ¼"-20

Manufacturer Part No:
B20
Brand:
HIKMICRO
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
CAMHKM1003
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
