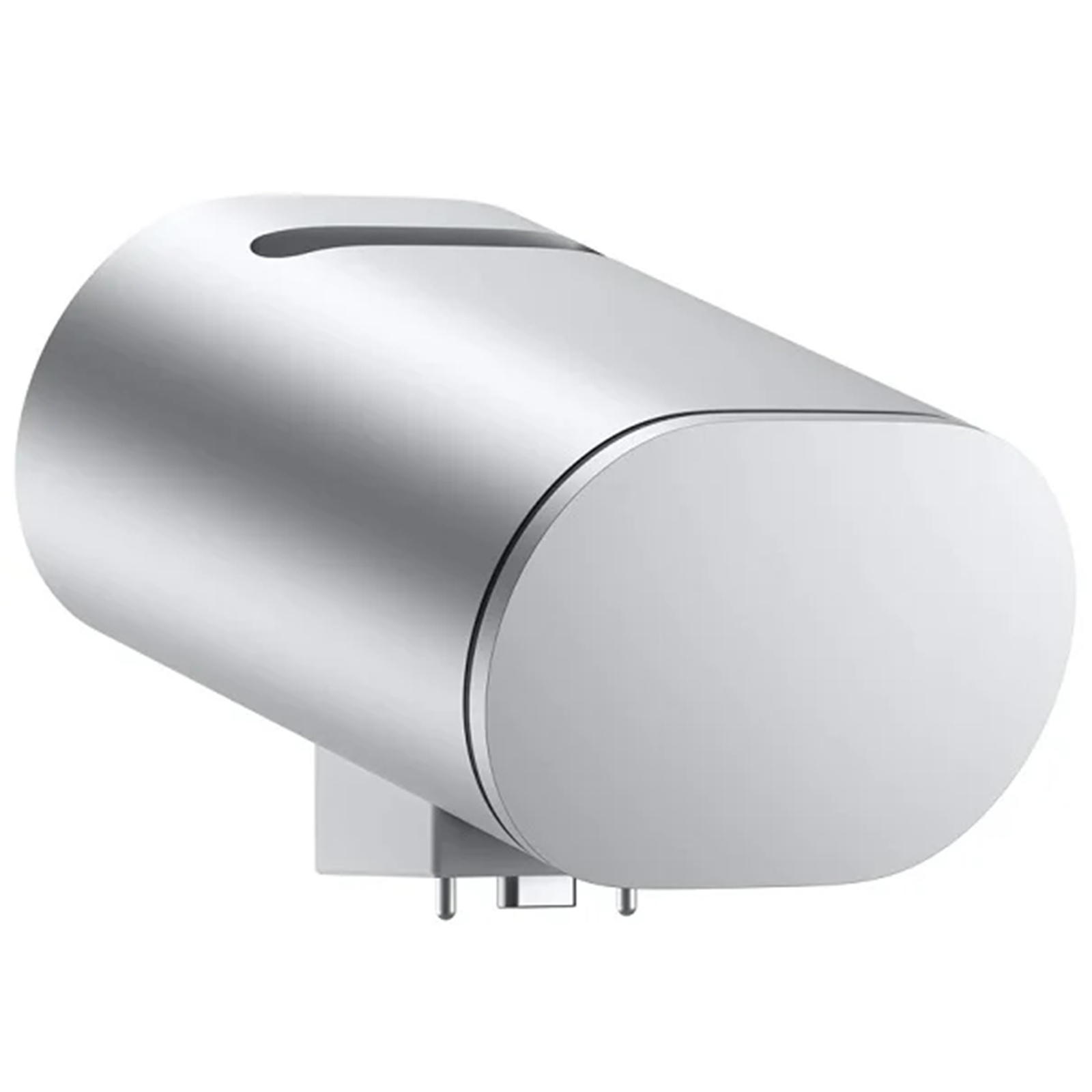

Microsoft Surface Hub 2S Smart Camera (New)
- Brand: Microsoft
- MPN: 2IN-00006
- Part #: CAMMST5506003

Product URL: https://www.pbtech.com/product/CAMMST5506003/Microsoft-Surface-Hub-2S-Smart-Camera-New
Features
Remote participants have a seat at the table with the best possible view of the room thanks to AI-powered Surface Hub Smart Camera. People in the room can move freely knowing they'll be captured on camera as they interact with remote team members in vibrant and clear life-size video with sharp focus and a wide field of view.
A dynamic view of in-room interactions
Dissolve boundaries for hybrid teams so they can inclusively engage everyone's voices, faces, and ideas.
The best view of the room
AI-powered Surface Hub Smart Camera dynamically adjusts the video feed, re-framing the view when someone leaves, more people come in, or a person interacts with content on the display.
Meetings are always in focus
With sharp focus on the foreground and background, remote participants can see people interact with content on the Surface Hub, even as they can see everyone else in the room.
Elevate every video call
Surface Hub Smart Camera has a wide field of view that's greater than 130°, digital pan-tilt-zoom, high-quality glass optics, and a great low light sensor.
Specifications
General
Dimensions
43mm high (54.6mm high with foot) x 67mm wide x 66mm deep (42mm wide foot)
Weight
180g (0.4 lb) with Camera Cover
Memory
1 GB DRAM, 8 GB eMMC (None user accessible)
Processor
Intel Myriad X 2085 (Image Signal Processor and NN SOC with 1 TFLOPS of DNN acceleration and 18 cores)
Security
Camera software updatable through Windows Update via Hub
Software updates protected by signature security process
Software
Built-in functionality
"Auto framing" (automatically frames people in field of view)
Image optimization (auto exposure, auto white balance, anti-flicker)
Tilt angle adapting de-warp/un-distortion for natural faces across the field of view
Upgradability
Internal Camera firmware can be updated with new functionality or bug fixes through Windows Update
Sensors
Sensor Resolution
4K
What's in the box
Contains
Surface Hub 2 Smart Camera with privacy cover
Quick Start Guide
Safety and warranty documents
Connections
Mounting
Top of Surface Hub 2S 85" and 50" only
Mechanical & Electrical Interface to Hub
USB-C break-away magnetic attach to top of bezel
Interface to Surface Hub 2S 85"and 50"
Customized USB-C
Reversible USB-C connection
Not supported
Hub Rotation
Not supported
Cameras, video, and audio
Features
Fixed focus lens with 11 glass elements
1 RGB Camera Module
Privacy cover magnetically attaches to front of camera for privacy, and magnetically attaches to back of camera for convenient storage
Working Distances
1.0 - 7.4m
HFOV
136 degrees
Tilt range
+20deg and -20deg from horizontal. Surface Hub 2 Smart Camera adapts its de-warp mesh to un-distort the image according to the camera tilt angle, so the image always looks natural.
Video Format
16:9 (NV12 at 360p, 720p, 1080p, 1440p)
Exterior
Casing
Anodized Aluminum
Colour
Platinum
Physical buttons
None
