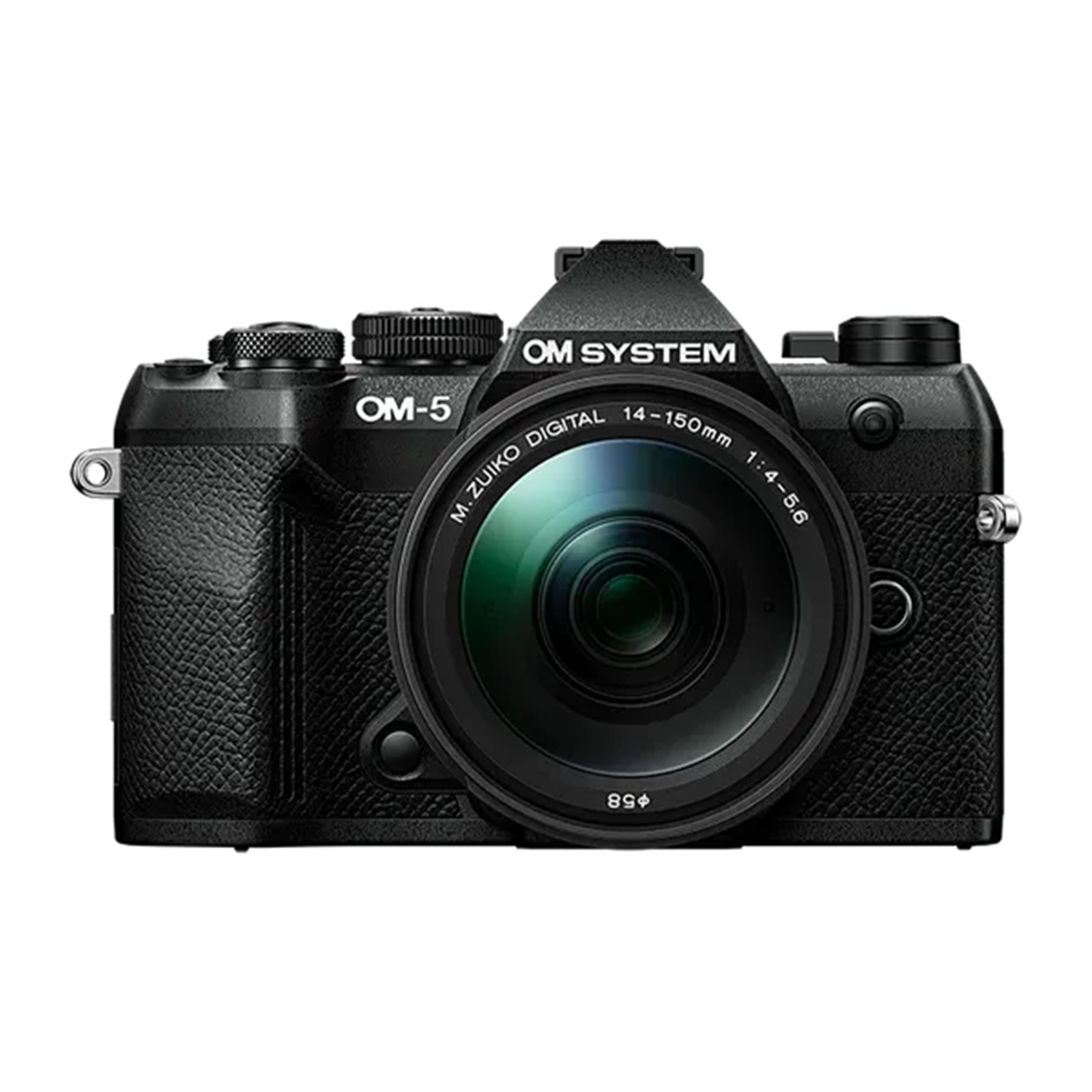

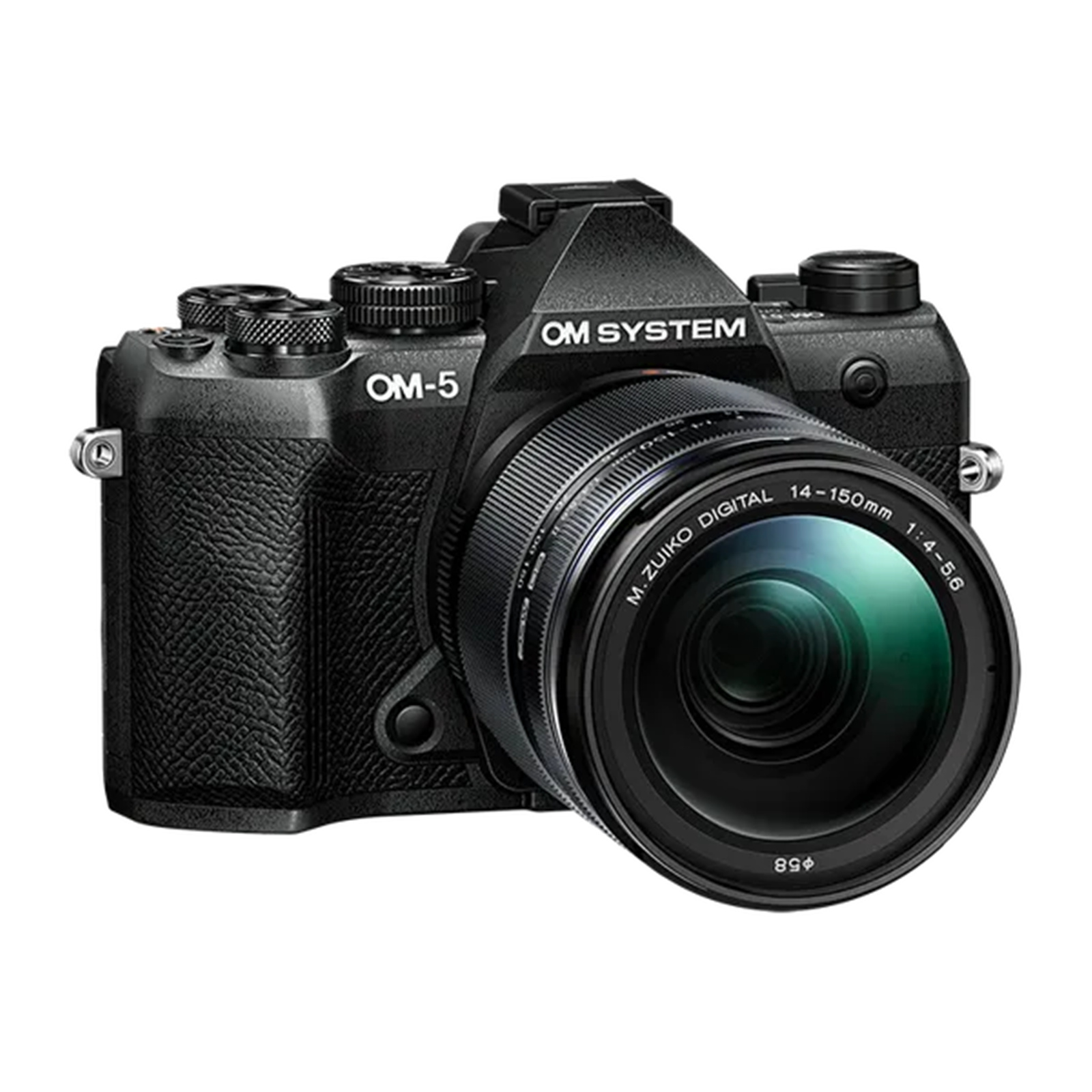

OM-SYSTEM OM-5 Mark II Mirrorless Camera(Black)

Type

Lens mount

Micro Four Thirds

Image Sensor

Type

4/3'' Live MOS sensor

Effective pixels

20.4 Megapixels

Full resolution

21.8 Megapixels

Aspect ratio & area

4:3 / 17.3 x 13.0mm

Filter array

Primary colour filter (RGB)

Engine

Type

TruePic IX

Filter

Dust reduction filter

Supersonic Wave Filter

Viewfinder

Type

OLED Electronic Viewfinder

Pixel number

2.360K dots

Magnification

Max. 1.37x with a 50mm lens set to infinity at -1 dioptre (depending on selected viewfinder style)

Angle of view

Approx. 100%

Style

3 styles selectable

Correction of color temperature

+/- 7 levels

Diopter adjustment

Equipped -4.0 - +2.0 diopters / built-in type

Eye point

27mm at -1 dioptre from eyepiece lens

S-OVF

Expands the Live View dynamic range

Note

*Available in the EVF when in P, A, S and M modes. Art filter, WB and exposure are not reflected in EVF.

Displayed information

AF confirmation mark, AF frame (super impose), AF lock, Aperture value, Auto bracket, Battery check, Exposure compensation indicator, Exposure compensation value indicator, Exposure level indicator, Exposure mode, Flash, FP flash, Highlight & Shadow, Histogram, IS activating mode, Level Gauge, Live Pre-view function, Metering mode, Number of storable sequential pictures, Shutter speed, White balance

Monitor

Monitor type

Vari-angle LCD - Touch Panel

Resolution

1037K dots

Monitor size

7.6cm / 3.0'' (3:2)

Brightness adjustment

+/- 7 levels

Colour balance

+/- 7 levels Vivid (default) / Natural

Touch Control functions

AF area enlargement, AF area selection, Art Filter, Enlargement, Enlargement playback, Frame forward/backward, Live Guide, Scene Modes, Shooting mode, Shutter release, Super Control Panel, Wi-Fi connection

Level Gauge

Detection

2-axis

Display

Rear display and viewfinder

Live View

Field of view

Approx. 100%

Dynamic range expansion

When in HDR1 or HDR2

Magnification levels

3 / 5 / 7 / 10 / 14x

Display modes

Comparison, Grid, Grid (4 types), Histogram, Level Gauge, Magnified View, Off, Standard information

Displayed information

AE lock, AF confirmation mark, AF frame display, Aperture, Auto bracket, Battery check, Custom, Exposure compensation value, Face / Eye detection mode, Face detection, Flash intensity, Flash mode, Flash status, Focal length, Focus mode, Focus peaking, Highlight & Shadow, Histogram, IS activating mode, ISO, Level Gauge, Live ND, Metering mode, Number of storable pictures, Record mode, Sequential shooting mode, Shooting information, Shooting mode, Shutter speed, Spot metering area, Super FP, Touch Panel Condition, White Balance, Wi-Fi

Super Control Panel

Displayed information

AE bracketing, AEL notification, AF frame, Aperture value, Battery indicator, Colour saturation compensation value, Colour space, Contrast compensation value, Drive mode, Exposure compensation indicator, Exposure level view, Exposure mode, Face detection, Flash compensation value, Flash mode, Focus mode, Gradation, Histogram, Internal temperature warning, ISO, Metering mode, Noise reduction, Number of storable frames, Record mode, Sharpness compensation value, Shutter speed, White balance, White balance compensation value

Image Stabiliser

Type

Sensor shift

Modes

Five-dimensional, vertical or horizontal activation, automatic

Lens IS priority

Available

Live View stabilisation

Available

Effective Compensation Range

Up to 7.5 EV steps Sync IS
Up to 6.5 EV steps

Note

Based on CIPA measurement conditions

Focusing System

Method

TTL phase difference detection system, contrast detection system (when non high-speed contrast AF compatible lens is used, it works as MF assist)

Predictive AF

Available

Face Detection extension

Eye Detect AF: Off, Left side priority, Near side priority, Right side priority

Manual focus

Available, with enlarged focusing area, focus peaking and focus indicator

Focus areas

121 points * /
121 points contrast AF
All target, single target (normal / small), group target (5-area / 9-area / 25-area), custom target 1-4 (AF area and its increment steps selectable)

Note

* All cross type

AF illuminator

Equipped

AF lock

Available, Locked by first position of shutter release button in single AF mode, AE/AF lock button (customised)

AF tracking

Available, Available in continuous AF mode

Focus Bracketing Mode

Compatible with

All Micro Four Thirds AF lenses

Number of images

3 - 999 shots

Step size

10 levels

Modes

AF* Tracking, Continuous AF*, Manual focus, Preset MF**, Single AF*, Stacking, Starry Sky AF

Note

* incl. manual override
** Distance setting values are rough estimates and only AF lenses can be used.

Back light effect

On / Off

Colour selection

White, black, red, yellow

Intensity

High / Normal / Low

Technology

8 shots are taken at different focus points and automatically composited together into a single image

Compatible Lenses

100-400mm F5.0-6.3 IS, 12-100mm F4 IS PRO, 12-40mm F2.8 PRO, 12-40mm F2.8 PRO II, 12-45mm F4 PRO, 150-400mm F4.5 TC1.25x IS PRO, 300mm F4 PRO, 30mm F3.5 Macro, 40-150mm F2.8 PRO 40-150mm F4.0 PRO, 60mm F2.8 Macro, 7-14mm F2.8 PRO, 8-25mm F4 PRO, 8mm F1.8 Fisheye PRO

Compatible Converter

1.4x Teleconverter MC-14, 2x Teleconverter MC-20

Note

Angle of view becomes slightly smaller

Exposure System

Modes

Aperture priority, Bulb, Custom shooting, HDR, Manual, Movie, Programme automatic, Shutter priority, Time

Exposure compensation

+/- 5 EV ( 1, 1/2, 1/3 steps )
Note: Monitor and EVF displays only up to ±3 EV.

Exposure bracketing

2 / 3 / 5 frames ( +/- 1/3, 2/3, 1 EV steps )
7 frames ( +/- 1/3, 1/2, 2/3 EV steps )

ISO bracketing

3 frames ( 1/3, 1/2, 1 EV steps )

HDR bracketing

3 / 5 frames ( +/- 2 / 3 EV steps )
7 frames ( +/- 2 EV steps )

AE lock

Available

Enhancement function

Shadow Adjustment Technology
Flicker Scan: Available for M, S and silent mode (can be confirmed in Live View)

My Mode

3 settings storable

Multi-Exposure

Max. number of frames

2 frames (shooting)

Max. number (editing)

3 frames (editing)

Auto gain control

Available

Frame assistance

Live View

Light Metering

Method

TTL open aperture light metering

Zones

324 zones Multi-pattern Sensing System

Detection range

-2 - 20 EV (17mm f2.8, ISO 100)

Modes

Centre weighted metering, ESP light metering, Highlight, Shadow, Spot metering

Art Filter

Modes

Bleach Bypass, Cross Process, Diorama, Dramatic Tone, Gentle Sepia, Grainy Film, Instant Film, Key Line, Light Tone, Pale & Light Colour, Partial Colour*, Pin Hole, Pop Art, Soft Focus, Vintage, Water colour

Variation / Effect

Available

Note

* 18 colours selectable

Sensitivity

Auto

(customisable, default ISO LOW - 6400)

Manual

ISO LOW - 25600 in 1/3 or 1 EV ISO steps

Shutter

Shutter type

Computerised focal-plane shutter

Self timer

2s / 12s / Custom

Shutter Speeds

Shutter speed range

1/8000 - 60s (in 1/3, 1/2, 1 EV steps)

Bulb mode

Up to 30 minutes (selectable longest time in the menu, default: 8 minutes)

Shutter type

Electronic shutter

Shutter speed

1/8000 - 60s

Start delay

0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15. 30s

Resolution

JPEG: 10368x7776 / 8160 x 6120 / 5760 x 4320 RAW: 10368 x 7776
Equivalent to 80M / 50M / 25M pixel sensor (8 shots combined into a single JPEG using sensor shift)
Available in P/A/S/M mode

Note

You need to install OM Workspace to develop on a PC.

Shutter type

Electronic shutter

Shutter speed

1/8000 - 60s

Resolution

JPEG: 8160 x 6120 / 5760 x 4320 RAW: 8160 x 6120
Equivalent to 50M / 25M pixel sensor (8 shots combined into a single JPEG using sensor shift)
Available in P/A/S/M mode
Flash can not be used

Shutter type

Electronic first curtain shutter

Shutter speed

1/320* - 60s

Start delay

0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15, 30s

Note

* For speeds over 1/320 sec., mechanical shutter will automatically be selected.

Shutter type

Electronic shutter

Shutter speed

1/32000 - 60s

Start delay

0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15. 30s

Stills

1/7634 - 1/50s

Movies

1/250 - 1/30s *

Note

* Frame rates greater 30fps are limited to their reciprocal value

White Balance

AUTO WB system

Advanced detection system with Live MOS sensor

Auto Flash adjustment

Off / Auto WB / Flash

Keep warm colour

On / Off

White balance bracketing

3 frames / +/- 2, 4, 6 mired steps

Custom WB

1 setting can be registered at Kelvin temperature (2000K - 14000K)

Manual White balance (One-Touch)

Available

One-touch white balance

4 custom settings can be registered

Preset values

Flash, Flourescent 1, Overcast, Shade, Sunlight, Tungsten, Underwater

Sequence Shooting

Speed (H)

Approx. 10fps
Max. number of frames: RAW 149 / JPG (LF): Up to card capacity

Speed (L)

6fps
Max. number of frames: RAW / JPG (LF): Up to card capacity

Pre-shutter Frames

0 - 14 frames (recorded by half release prior to full release)

Speed (H)

Approx. 30fps

Speed (L)

Approx. 10fps

Speed (H)

Approx. 30fps
Max. number of frames: RAW 18 / JPG (LF): 20

Speed (L)

Approx. 10fps
Max. number of frames: RAW 138 / JPG (LF): Up to card capacity

Conditions

Memory card: KIOXIA KSDXU-A064G
When using the M.Zuiko Digital ED 12-40mm F2.8 Pro
Maximum sequential shooting speed may be affected by several factors including lens used, brightness, aperture, shutter speed, and ISO setting.
The actual shooting speed may become slower than set by a few frames per second. When using ISO Bracketing, performance will be affected at ISO 2000 or above.

Frame count limiter

1- 99 frames / Off (unlimited frames) (incl. pre-shutter frames)

Settings

Interval: 1s - 24h
Max. number of frames: 9999

Image Processing

Art Filter bracketing

Available

Color space

sRGB / AdobeRGB

Fisheye compensation

Available when M.Zuiko Digital ED 8mm Fisheye PRO is attached Angle of view adjustable in 3 levels Compensation automatically ON when using Underwater Modes, available (can be confirmed in Live View)

Gradation

4 levels (auto, high key, normal, low key)

Black & White filter

Yellow, Orange, Red, Green

Black & White toning

Sepia, Blue, Purple or Green in Black & White mode

Contrast

5 levels

Engine

TruePic IX

Saturation

5 levels

Sharpness + Contrast

5 levels

Tele converter effect

2x

External Flash Control

Modes

2nd curtain and slow synchronisation, Auto, Fill-in for exclusive flash, Manual, Red-eye reduction, Slow synchronisation

Type

AUTO, FP MANUAL, FP TTL AUTO, MANUAL, TTL AUTO

X-sync speed

1/250s / 1/8000s (Super FP Mode)

Intensity

+/- 3 EV ( 1/3, 1/2, 1 EV steps )

Compatible external flash

FL-14, FL-20, FL-36R, FL-50R, FL-300R, FL-600R, FL-700WR, FL-900R, STF-8

Note

Note: Some functions are only available if they are supported by the external flash.

Wireless Flash Control

Wireless Flash Control

Available when used together with cameras compatible with the Olympus wireless RC flash system.

Control method

Triggered and controlled (Olympus Wireless RC Flash system)

Group setting

4 groups

Compatible external flash

FL-36R, FL-50R, FL-300R, FL-600R, FL-700WR, FL-900R

Radio wireless control

Available

Number of channels

4 channels

Recording Formats

JPEG

Applied

RAW

12bit

RAW & JPEG

Applied parallel recording

Aspect ratio

4:3 / 3:2 / 16:9 / 6:6 / 3:4

Still Image Recording

DCF

Applied

EXIF

2.3

RAW

Applied

Image Size

RAW

5184 x 3888 compressed

Large

5184 x 3888 Fine (compression: 1/4)

Movie Recording System

Recording format

MOV(MPEG-4AVC/H.264)

Picture mode

Flat, OM-Log400

Time code

Rec run / Free run
Drop frame / Non-drop frame
ALL-I: ~ 202 Mbps
FullHD IPB (SF: ~52Mbps, F: ~30Mbps)
HD IPB (SF: ~26Mbps, F: ~14Mbps, N: ~10Mbps)

Exposure Modes

Aperture priority, Manual, Programme automatic, Shutter priority

Image Stabilisation Mode

Applied Sensor shift

Note

M-IS1 (Image sensor shift and electronic image stabilizer with multi motion IS)
M-IS2 (Image sensor shift with multi motion IS)

Note

* Frame rate may drop when using certain art filter

4K Movie quality

4096 x 2160 (C4K) / 24p / IPB (approx. 237 Mbps)
3840 x 2160 (4K) / 30p, 25p, 24p / IPB (approx. 102 Mbps)

HD Movie quality

Full HD 1920 x 1080 (16:9) / 30p, 25p, 24p / ALL-I (A-I), IPB (SF, F, N) (MOV)
Full HD 1920 x 1080 (16:9) / 60p, 50p / IPB (SF, F, N) (MOV)
HD 1280 x 720 (16:9) / 60p, 50p, 30p, 25p, 24p / ALL-I (A-I), IPB (SF, F, N) (MOV)

Note

Class 10 or higher SD card is recommended for movie shooting
UHS-II or UHS-I U3 card is recommended for ALL-I shooting

Max. file size

4GB (AVCHD)

Maximum Recording Time

Up to card capacity

Movie Specialties

Art Filter

Bleach Bypass, Cross Process, Diorama, Dramatic Tone, Gentle Sepia, Grainy Film, Key Line, Light Tone, Pale & Light Colour, Partial Colour*, Pin Hole, Pop Art, Soft Focus, Vintage

Note

* 18 colours selectable

Note

Frame rate limited to 30fps or lower

Fast motion

Available

Flicker Scan

Available in M mode (can be confirmed in Live View)

Monitor mode

Video signal and info display is processed

Note

While recording, footage is simultaneously displayed on the HDMI monitor and on the camera, but the info display is shown only on either one of the two.
While playing movies, footage is simultaneously displayed on the HDMI monitor (normal size) and on the camera (normal size or enlarged).

Record mode

Only video signal is processed

Note

Movie quality is set to YCbCr 4:2:2 (8 bit), frame rate follows movie setting (24p, 30p and 60p settings are not recommended.), and sound will be recorded.

High-Speed Recording

1920x1080 (MOV) / 120fps

Time lapse

4k, 1080p, 720p (AVI Motion JPEG®)

Slow motion

Available

Sound Recording System

Recording format

High quality sound recording (Stereo linear PCM/24-bit, Sampling frequency 96kHz)
Stereo PCM/16bit, 48kHz, Wave Format Base

Speaker

Built-in mono speaker

Image footage

30s

Functions

Slate Tone / Synchronised Audio Rec-Movie Rec

Devices

Compatible with: LS-100, LS-P4, LS-P5

Internal microphone

Built-in stereo microphones

Microphone functions

Audio Dubbing, Recording Volume, Volume limiter, Wind Noise Reduction

View Images

Modes

Calendar, Index, Movie, Single, Zoom

Shooting information

Off / On

Highlight/Shadow point warning

Available

Histogram in playback mode

Available

Auto rotation

Available

Erase / Protect / Copy Function

Erase modes

Single, All, Selected

Image protect mode

Single frame, Selected frames, All Frames, Release protect (Single/All selected)

Image Editing

Editing functions

Aspect ratio, Black & White, Correction of brightness, Correction of colour balance, Correction of saturation, e-Portrait, RAW data edit, Red-eye reduction, Resize, Sepia, Shadow Adjustment, Trimming

Customisation Options

Programmable button

Equipped

Fn Button

Equipped

My Mode

4 settings storable (Can be set to mode dial.)

Factory reset

Full / Basic

Menu languages in camera

Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Russian, Serbian, Slovenian, Spanish, Swedish, Turkish, Ukrainian

Interface

Hot shoe

Equipped

HDMI™

Applied Micro connector (Type D) *

Microphone jack

3.5 ø mm mini-jack (plug-in power on/off)

USB 2.0 High Speed

Applied

Wireless connectivity

Bluetooth®, Wi-Fi

Communication method

Bluetooth® Low Energy Ver.4.2

Media

SD Memory Card (SDHC, SDXC, UHS-I, UHS-II compatible) Class 10 or higher SD card is recommended for movie shooting UHS-II or UHS-I U3 card is recommended for 4K, C4K, ALL-I shooting.

SAR

0.36W/kg

Note

SAR quantifies the maximum level of exposure of the user to electromagnetic waves, when using the device close to the head.
SAR shall not exceed 2W/kg in accordance with regulations of France.

Note

* "HDMI", the HDMI logo and "High-Definition Multimedia Interface" are trademarks or registered trademarks of HDMI Licensing LLC.
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by OLYMPUS CORPORATION is under license.
Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Wi-Fi Functions

Easy Connection

QR code setting

Wireless Shooting

Bulb mode, Live Composite, Live View, Movie recording, P/A/S/M exposure modes, Power off, Rec View, Self timer, Short movie, Touch AF & Shutter, Zoom

Power Supply

Image shooting

310 shots (using Toshiba SDHC UHS-I Card Exceria with IS on, with no flashes attached , based on CIPA test standards)

Movie recording

60min (standard JEITA conditions) 110min (when zoom and other operational functions are not used)

Battery

BLS-50 Lithium-Ion Battery (included)

Sleep mode

1, 3, 5, 10 min. and off selectable.

USB charging

Built-in battery can be charged with USB (when camera power is off)

Dimensions / Weight

Width

125.3mm

Depth

49.7mm

Height

85.2mm

Weight

414g (including battery and memory card)

Weight (body only)

366g (body only)

Environment

Humidity

30 - 90% operation humidity / 10 - 90% storage humidity

Temperature

-10 - 40°C Operating temperature / -20 - 60°C storage temperature
