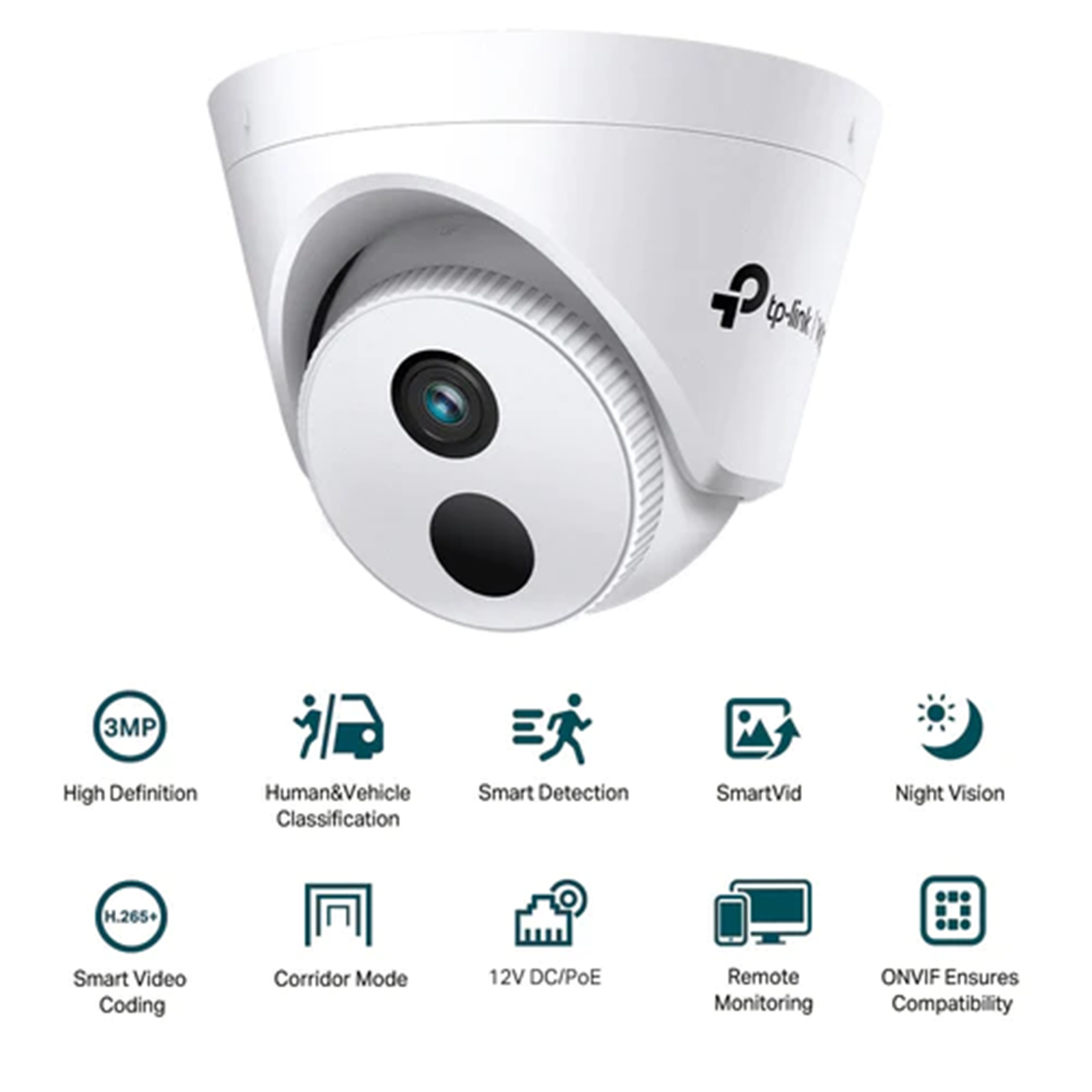

TP-Link VIGI C430I 3MP IR Turret Network Camera
4mm
Out of stock
Product is out of stock. View similar products in-stock at PB Tech
Features
Looking for a higher resolution? It's right here.
3MP Super-High Definition
The VIGI C430I camera comes with 3MP-more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

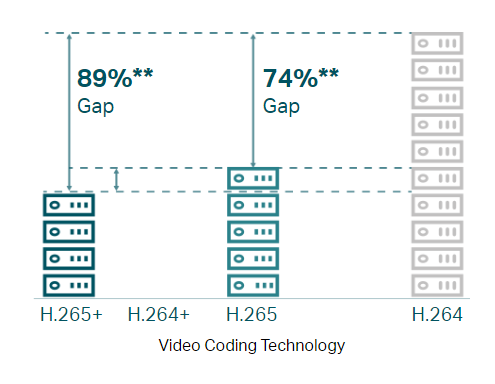

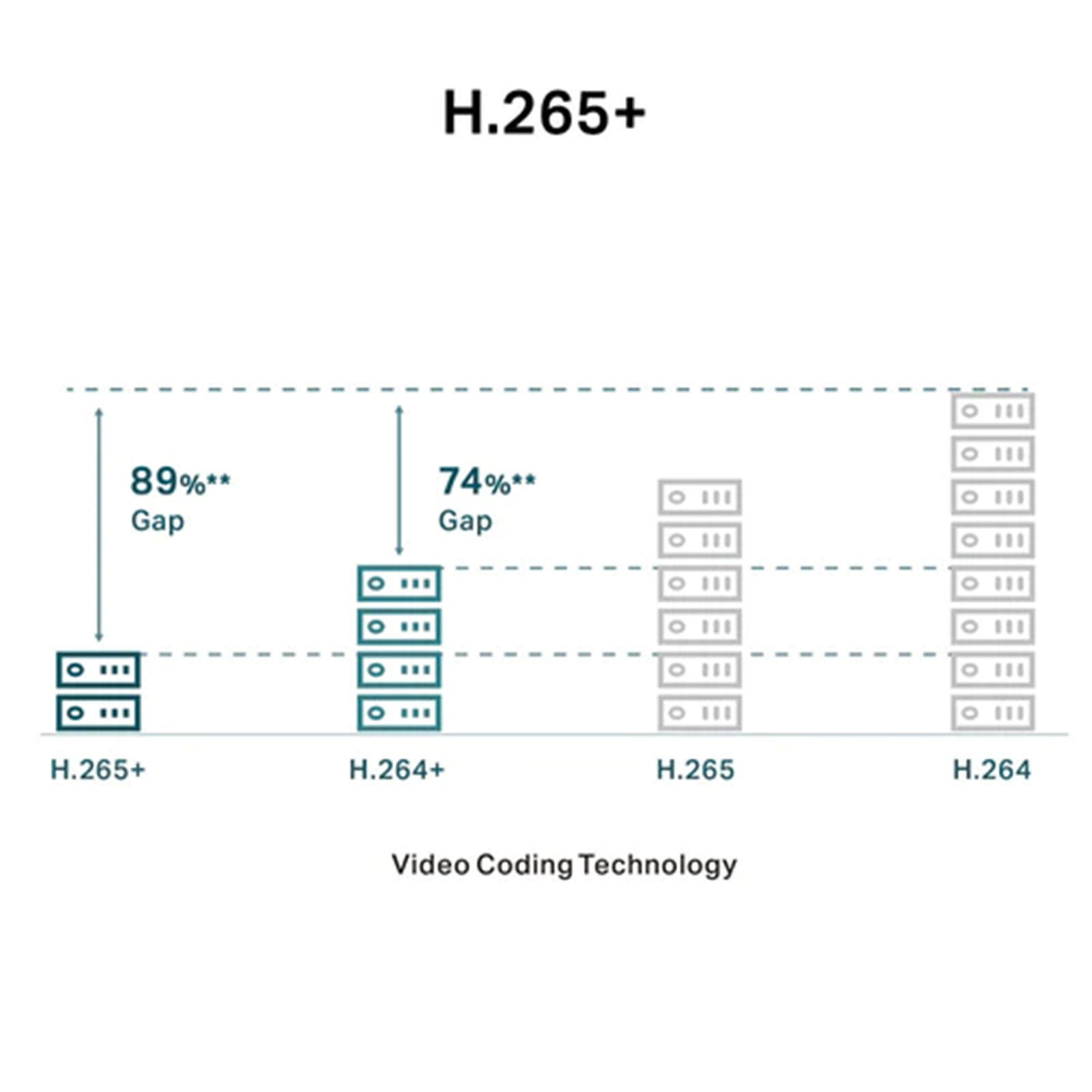

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

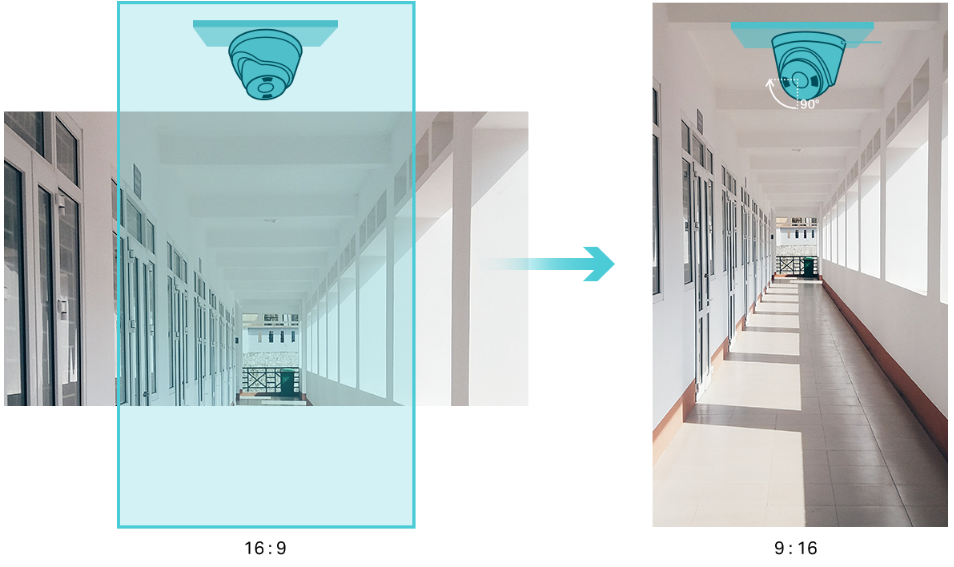

Corridor Mode
Rotate the live image and lens 90° clockwise simultaneously. This way, your image aspect ratio changes from 16:9 to 9:16, helping you monitor long and narrow areas and providing a more natural viewing experience.
Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

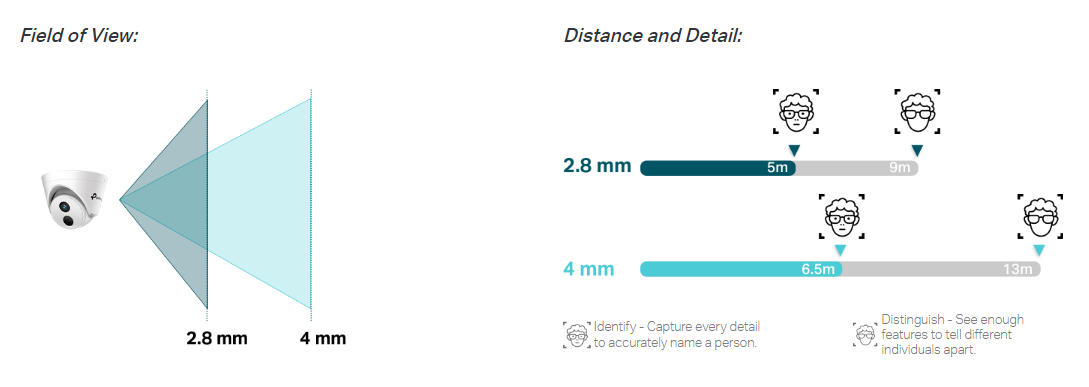

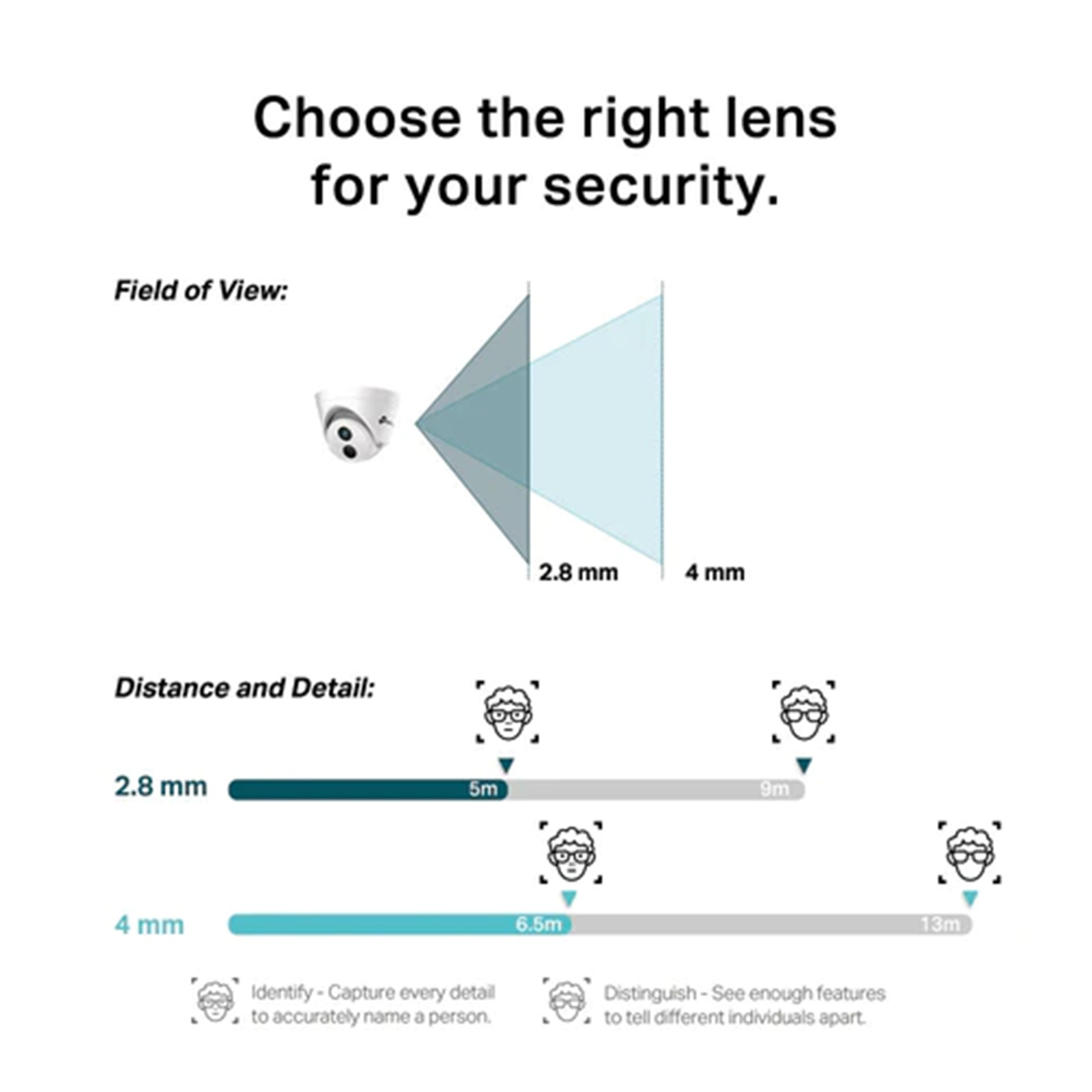

Choose the right lens for your security.
2.8/4 mm Lens
Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C430I comes with two different lens versions to better suit your security needs.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Wired IP Cameras
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
EZVIZ H9c Dual 5MP/3K Dual-Lens Outdoor PT WiFi Camera with...
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Reolink P334 8MP/4K Outdoor Turret POE IP Camera Plug&play /...
TP-Link VIGI C430I 3MP IR Turret Network Camera 4mm
- Brand: TP-Link
- MPN: VIGI C430I(4mm)
- Part #: CAMTPL0434
Product URL: https://www.pbtech.com/product/CAMTPL0434/TP-Link-VIGI-C430I-3MP-IR-Turret-Network-Camera-4m
Features
Looking for a higher resolution? It's right here.
3MP Super-High Definition
The VIGI C430I camera comes with 3MP-more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Corridor Mode
Rotate the live image and lens 90° clockwise simultaneously. This way, your image aspect ratio changes from 16:9 to 9:16, helping you monitor long and narrow areas and providing a more natural viewing experience.
Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Choose the right lens for your security.
2.8/4 mm Lens
Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C430I comes with two different lens versions to better suit your security needs.
Specifications
CAMERA
Image Sensor
1/2.8" Progressive Scan CMOS
Minimum Illumination
Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism
IR Cut Filter
Lens
4 mm
Aperture
4 mm: F2.0
Lens Mount
M12
Viewing Angle
4mm: 82.5°/44.9°/99.3°(H/V/D)
IR Working Distance
30m
Digital Noise Reduction
3D DNR
WDR
DWDR
NETWORK
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,RTSP, NTP, UPnP UDP, SSL/TLS
API
ONVIF
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Client
VIGI App, VIGI Security Manager, VIGI NVR, Web
INTERFACES
Network Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port
GENERAL
Package Contents
VIGI Network Camera
Quick Start Guide
Mounting Accessories
Operating Temperature
-30-60 °C
Dimensions( H X W X D )
123 × 123 × 83 mm
Material
Plastic
General Features
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Supply
12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Power Consumption
12V DC: Max 5W
PoE: Class 0
Certifications
CE/BSMI/VCCI/ONVIF
VIDEO/IMAGE
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions
Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution
3MP (2304 × 1296)
Video Streaming
Main Stream
Sub-Stream
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Video Bit Rate
64 Kbps to 4 Mbps
Day/Night Switch
Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event
Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event
Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method
Trigger Notification: ONVIF, HTTPS
Region of Interest
1 Region
