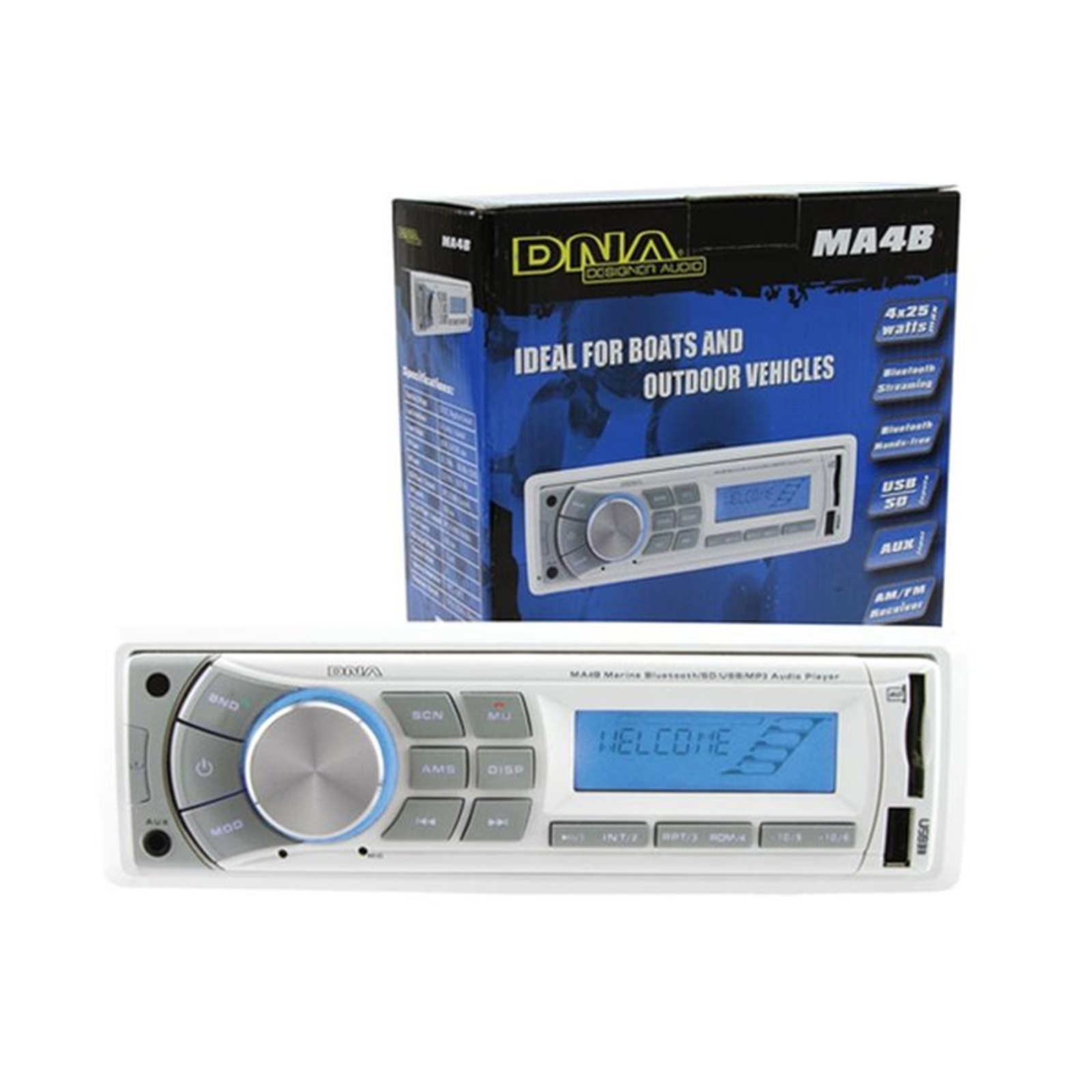

DNA MA4B DNA MARINE HEAD UNIT WITH BLUETOOTH/USB/SD AND AM/FM RADIO WHITE

Marine Bluetooth USB/SD MP3 Player with AM/FM tuner and AUX audio input

This marine 4 channel AM/FM Bluetooth MP3 player is ideal for installation applications in the dashboard making it ideal for use on boats or other outdoor vehicles. The unit features Bluetooth streaming and Bluetooth hands-free and AUX, SD and USB inputs on the front for playback from modern audio devices like USB flash sticks, SD cards, MP3 players, Iphones, Smartphones, iPods etc.

Bluetooth A2DP features

Allows music to be streamed from handheld devices via a Bluetooth A2DP audio connection.

Bluetooth Pairing

To pair your phone to the MA4B set your phone to search for a new device and select 'Car Audio' when found. If the phone is requesting for a pin number, enter 8888 to pair). Once paired "BT ON" will be display on the screen momentarily.

Hands free calling features

Allows phone calls via the boat's audio system using most Bluetooth enabled mobile phones, including the iPhone. Keep your phone safely tucked away and still make phone calls using the boat's audio system.

USB Audio features

Connected from front of head unit. Play music from USB flash drive units. Plays MP3, WMA music formats. Will handle up to 8GB but is dependent on the memory's software. MP3 and WMA playback with ID3 tags. Fitted with rubber protection cover.

SD Audio features

Connected from front of head unit. Play music from SD memory card units. Plays MP3, WMA music formats. Will handle up to 8GB but is dependent on the memory's software. MP3 and WMA playback with ID3 tags. Fitted with rubber protection cover.

AUX Audio input features

Front 3.5mm stereo socket input on head unit. Ideal for many devices to be connected: including: portable CD players, walkmans, MP3 players, in fact anything that has a headphone or line output

Radio tuner features

AM / FM PLL (phase locked looped) ETR (electronic tune radio) tuner, 30 station presets (18FM and 12AM) AS/PS feature / Local/DX / band button / tune seek up or down

Marine features

Conformal epoxy coating on all PCB circuit boards to prevent damage from high humidity and salt. Rust-resistant EDP (Electro deposit paint) coating on the chassis and PET cover on top and left and right sides

General features

100W - 4 x 25 watt max power / detachable face / din surround or rear mount / electronic audio control (bass, treble, fader, balance, volume) / EQ control (digital sound processing - classical, pop, rock etc) / mono/stereo / clock / AS/PS / Mode

Input / output wires

2 x RCA audio line output sockets (1.2 Volt) / antenna socket / male harness plug to male ISO connector with 2 female ISO plugs to bare ends (30cm).

NOTE

If your boat / vehicle does not have a seperate accessory wire circuit, make sure the red (ignition/accessory 12v) wire and the yellow (memory backup 12v) wire on this unit are both connected to the same 12 volt power source in the boat / vehicle.
