FUSION SIGNATURE SERIES MARINE AMPLIFIER 6-CH 1500W 24VOLT
- Brand: FUSION
- MPN: 010-02556-00
- Part #: CARFSN1011

Product URL: https://www.pbtech.com/product/CARFSN1011/FUSION-SIGNATURE-SERIES-MARINE-AMPLIFIER-6-CH-1500
Features
Fusion Signature Series Marine Amplifiers 6-CH, 1500W, 24 Volt
Purpose-built for the marine environment, the Signature Series marine amplifiers feature some of the most impressive protection from the environment available - delivering a Signature performance out on the water.
- Class-D design delivers higher efficiency and greater output.
- Connect up to two speakers per channel at 2 ohms, or bridge two channels at 4 ohms for increased power.
- Conformal coated PCBs provide extra protection from the marine elements.
- Rigid aluminum alloy heat sink is molded for greater dissipation of heat.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS:
Purpose-built for the marine environment, the Signature Series marine amplifiers feature some of the most impressive protection from the environment available - delivering a Signature performance out on the water. Built on the True-Marine design philosophy from Fusion, the Signature Series amplifiers have been tested to a high level of protection against salt fog, temperature, vibration and UV.

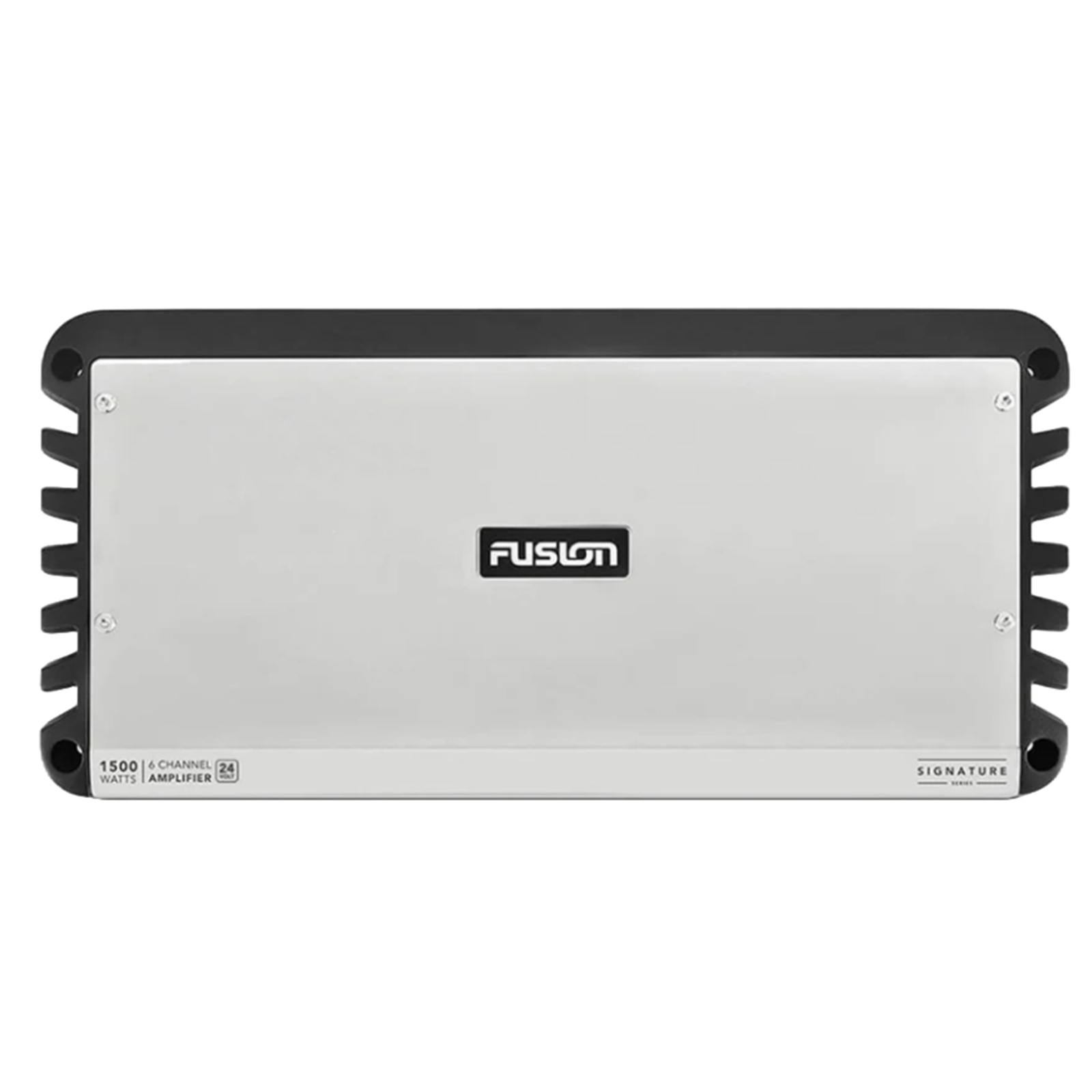

STAINLESS STEEL MIRROR FINISH

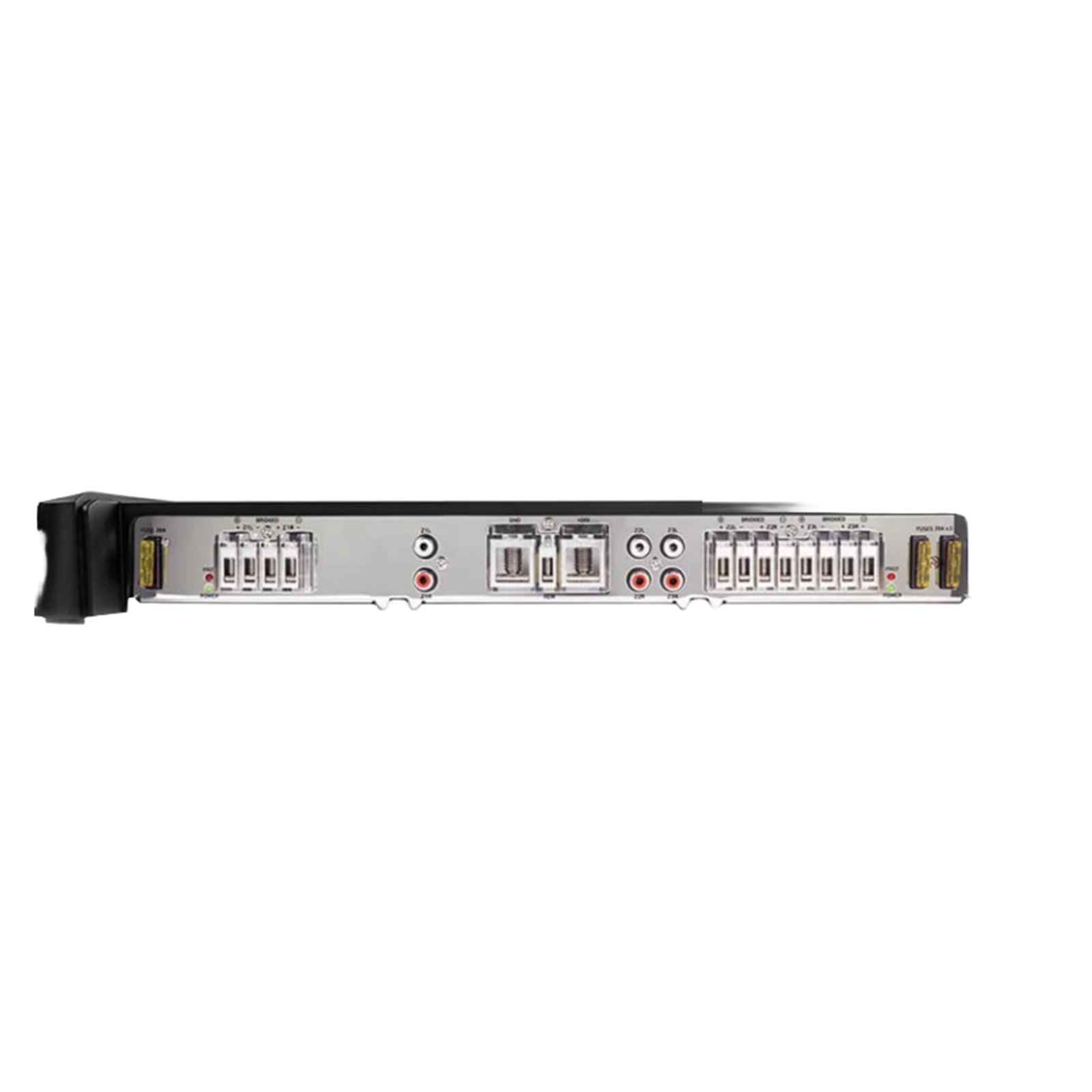

The polished stainless steel control panel cover conceals and helps protect all cable connections and settings controls while providing an attractive finish to complement any installation.
MARINE-READY DESIGN WITH CONFORMAL COATED PCBS
Helping to extend the life of your amplifiers, the Signature Series amplifiers are designed with conformal coated PCBs to provide extra protection from the marine elements.
Specifications
Physical dimensions (LxWxH)
24-Volt 6 channel: 16.54" x 8.27" x 2.24" (420 x 210 x 57 mm)
Amplifier class
D
Peak power (Watts)
1500W
Total rated power output - 4 Ohm (Watts)
100 W RMS x 6 @ 28.8 V input - 4 Ohm < 1% THD
Total rated power output - 2 Ohm (Watts)
140 W RMS x 6 @ 28.8 V input - 2 Ohm < 1% THD
Total rated power output (Watts)
280 W RMS x 3 @ 28.8 V input - 4 Ohm Bridged < 1% THD
Frequency response
10 Hz - 40 kHz (-3dB, dB @ 4 Ohm rated power)
Input sensitivity
0.3 V - 8 V RMS (user adjustable)
Input impedance
7k Ohm nominal
High-pass/low-pass full range filter
yes (user selectable)
HP variable crossover frequency
32 Hz - 320 Hz
LP variable crossover frequency
32 Hz - 320 Hz
Bass boost
0 dB - 9 dB, user adjustable (zone 3 only)
Operating voltage
21.6 V - 32 V DC
Current consumption (StandBy)
< 1 mA @ 28.8 V input
Current consumption (Idle)
< 1.25 A @ 28.8 V input
Current consumption (Max)
35 A
Fuse rating
24-Volt 6 channel: 3 x 20 A ATC blade-type (SAE J1171 compliant)
Operating temperature range
32° to 122° F (0° to 50° C)
