FUSION 010-01517-01 Black Box Stereo System BB100

PB Tech price
PB Tech price
AUD $ 421 .19
$ 421 .19
$421.19  +GST
$421.19

FUSION 010-01517-01 Black Box Stereo System BB100

  • Brand: FUSION
  • MPN: 010-01517-01
  • Part #: CARFSN1023
  • UPC:
PB Tech price
AUD $ 421 .19 $ 421 .19


Delivery: Order now and it ships on 26 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$421.19  +GST
$421.19

Features



Compact black box entertainment solution

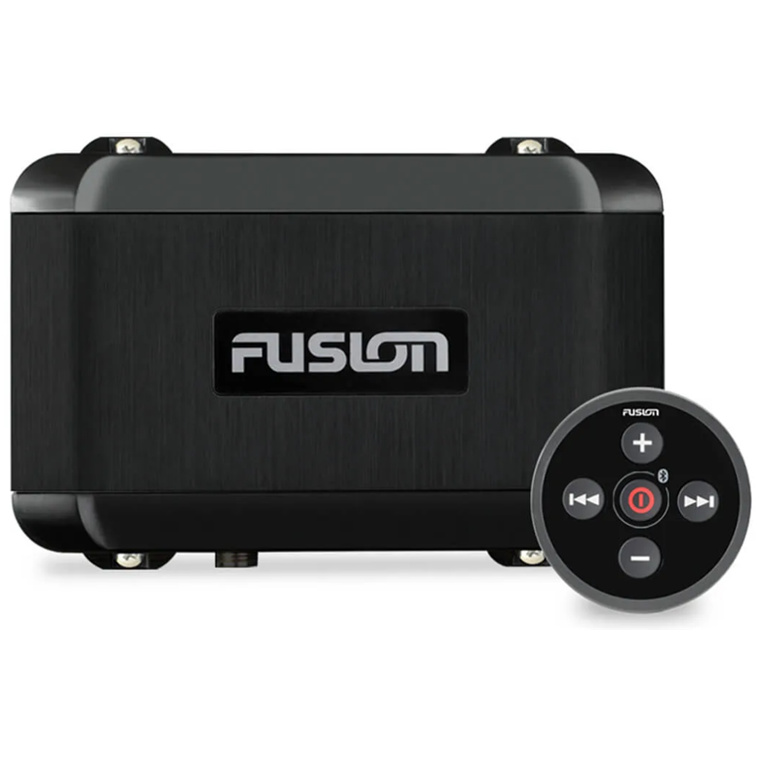

There is no need to compromise on quality audio entertainment due to limited helm space with the value packed Fusion MS-BB100 compact black box entertainment solution.



Compact form factor allows for easy installation on your boat.

Control the BB100 using the included IPX7 wired remote control.



Built-in Class-AB amplifier delivers efficiency with reduced distortion.



Multi-Zone™ technology gives you control of 2 separate audio zones.



Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.

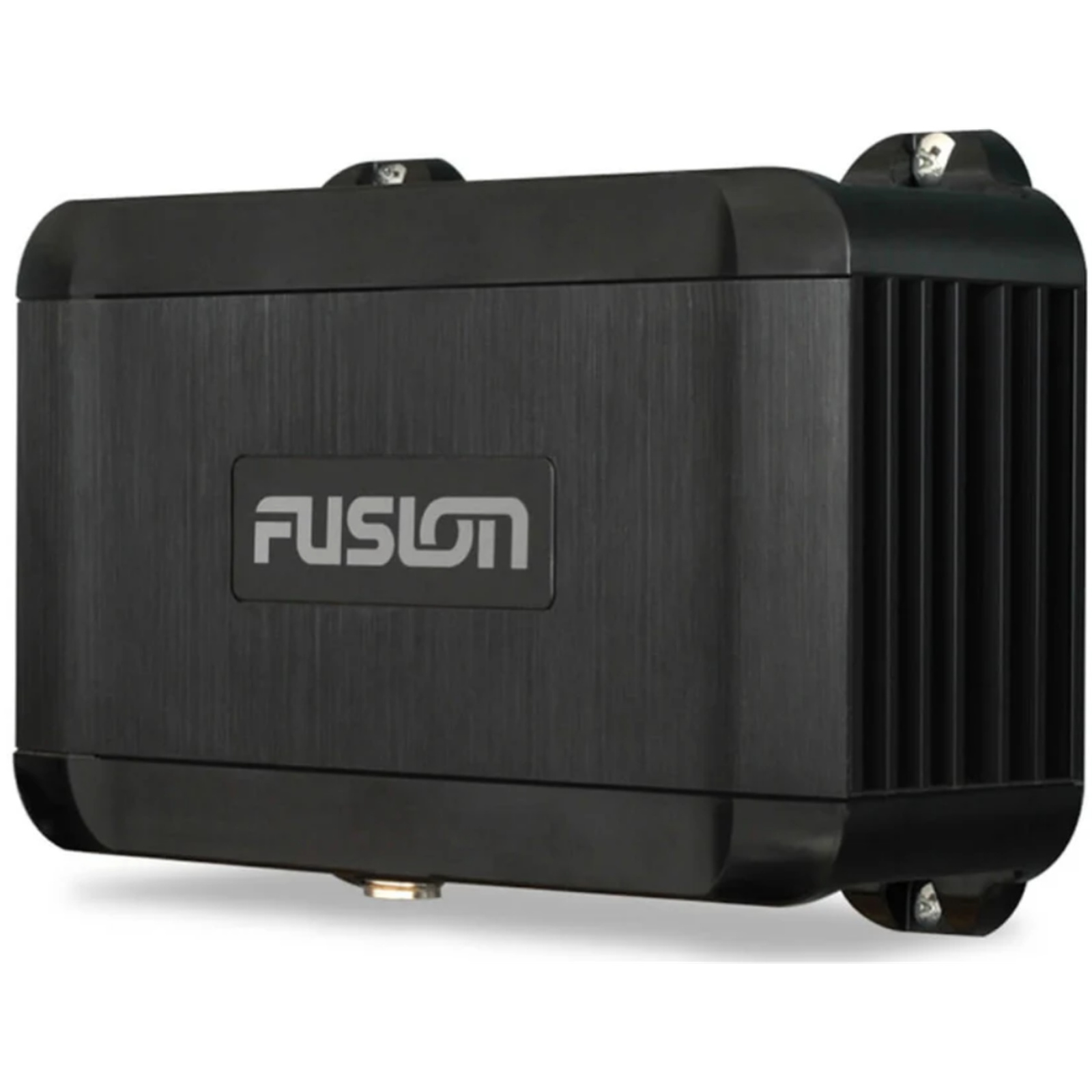

Black box design

Designed to save space at the helm, the compact design of the MS-BB100 allows it to be mounted in out-of-way places such as storage lockers, inside helm consoles and other concealed compartments.

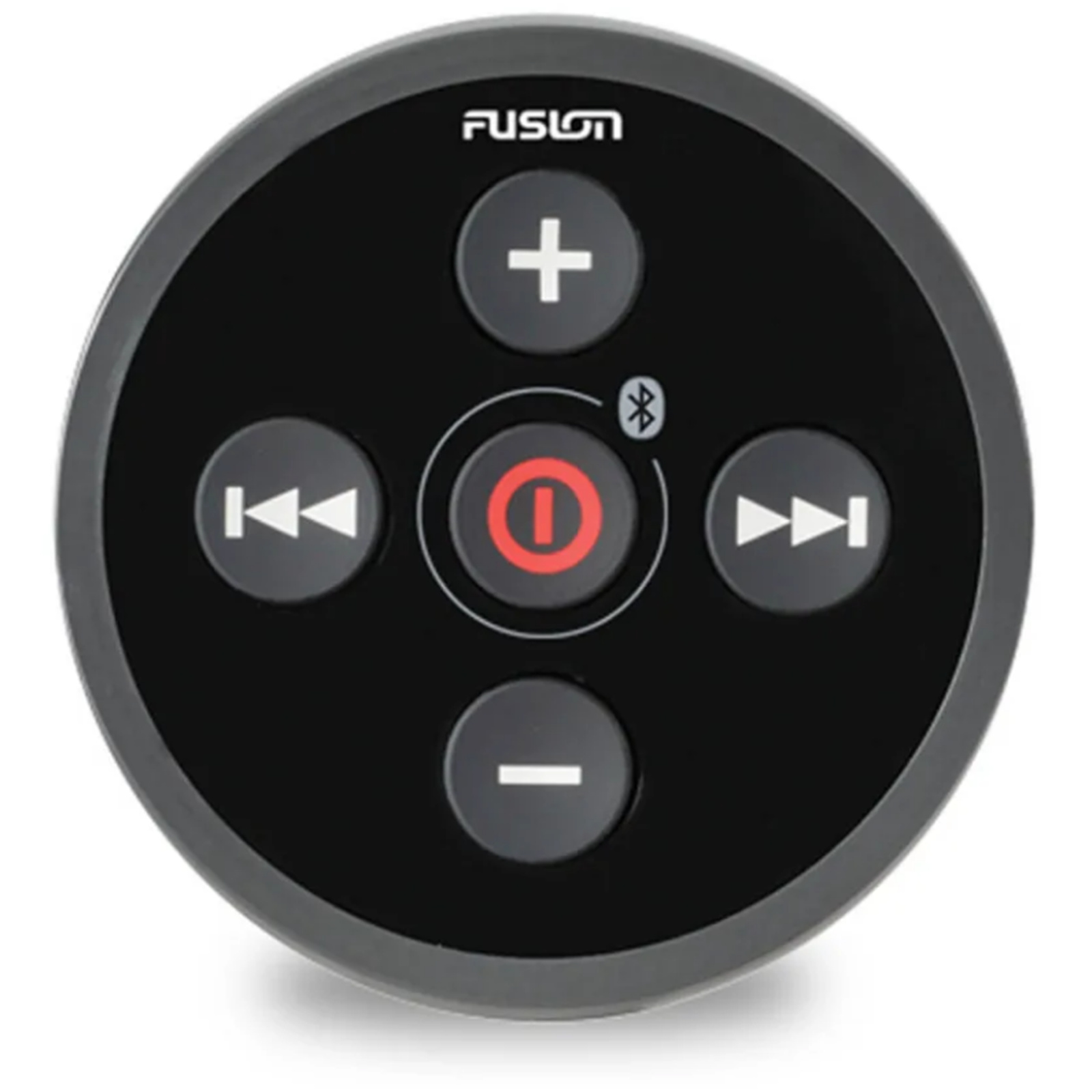

IPX7 wired remote control

An IPX7 rated wired remote control is included in the box for you to control the MS-BB100. You can mount the wired remote with a conventional flush finish or integrate it into the helm for a premium flat finish.



Enjoy a variety of source options.



Multiple source options

Take advantage of the many source options available, including Bluetooth® technology, DAB+ radio, AM/FM radio, AUX and USB connections.

Specifications

General

Physical dimensions

Black Box (HxWxD): 2.63" x 6.10" x 3.70" (60 x 155 x 94 mm)
Remote (Diameter x Depth): 2.56" x 2.13" (65 x 54 mm)

Water rating

Black Box: IPX3 (when properly installed)
Remote: IPX7 (front panel only, when properly installed)

Power input

10.8-16 VDC

Operating temperature range

32° to 122° F (0° to 50° C)

Current (max.)

15 A

Fuse

15 A

NMEA 2000 LEN

1 (50 mA)

Bluetooth wireless range

Up to 30 ft. (10 m)

ANT wireless range

Up to 10 ft. (3 m)

Wireless frequencies/protocols

Bluetooth 2.4 GHz @ +1.9 dBm nominal
ANT 2.4 GHz @ +1.9 dBm nominal

Compass-safe distance

5.9" (150 mm)

Built-in amplifier

Class-AB

Peak power

200 W

Rated power output (4 Ohm)

26 W rms x 4 @ 14.4 V input < 10% THD

Fusion-Link™ control

Yes (MFD, smartphone and Garmin watch)

Multi-Zone™ technology

2 zones

Bluetooth wireless technology

Yes

ANT wireless technology

Yes

DAB+ ready

Yes (requires DAB100A antenna module)

NRX remote compatibility

Yes

Software updates

USB

Sources

Sources

AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/AOA/
DAB+ ready (available in Europe and Australia only)

Auxiliary input

1 RCA input (AUX)
NMEA 2000
One USB 2.0 port
USB 2.0
One USB 2.0 port
AM/FM radio

Speaker

2 connections (2 zone amplified)

RCA Pre-out (left, right and subwoofer)

2 zones (requires external amplification)

Line out

2 (1 x L + R per zone, requires external amplification)

Subwoofer out

1 x mono output (requires external amplification)

Manufacturer Part No:
010-01517-01
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.01 kg
PB Part No:
CARFSN1023
Product Model:
-
Warranty: 12 months *
