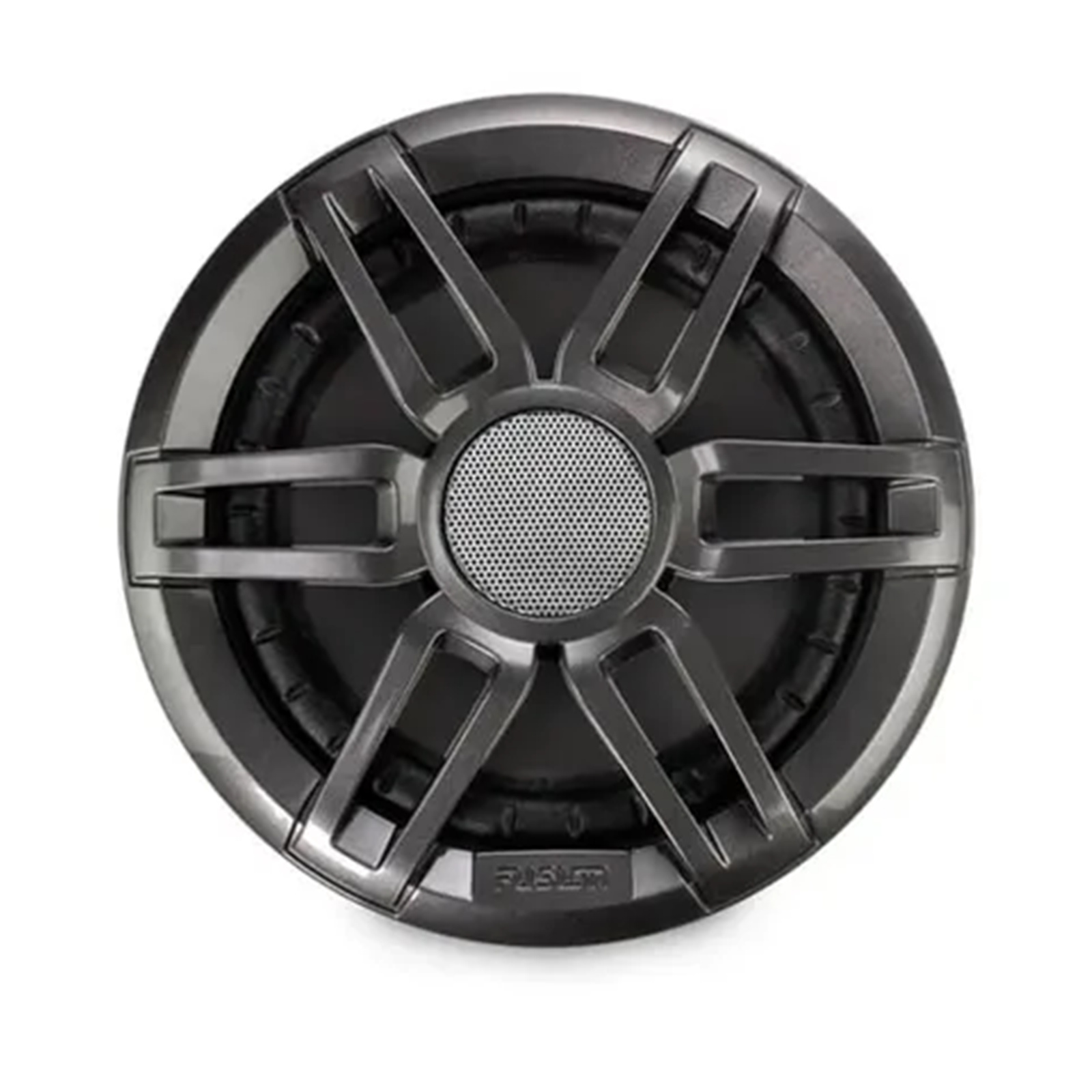

FUSION 7.7" MARINE SPEAPERS 240W PAIR XS SERIES INCLUDES SPORTS GRILL XS-F77SPGW

PB Tech price

AUD $ 274 .57

$ 274 .57

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

FUSION 7.7" MARINE SPEAPERS 240W PAIR XS SERIES INCLUDES SPORTS GRILL XS-F77SPGW

Brand: FUSION
MPN: 010-02197-01
Part #: CARFSN1068
UPC:

PB Tech price

AUD $ 274 .57

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: FUSION
MPN: 010-02197-01
Part #: CARFSN1068
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The Fusion XS-F65SPGW 7.7" 240W Sports Marine Speakers are acoustically optimized for performance in the marine environment, by combining optimized speaker drivers and tweeters to produce quality sound at all volumes.

True-Marine&tread; Designed and Engineered to perform in the harsh marine environment, the XS Series carries an IP65 weatherproof rating along with True-Marine accreditation. Two Grille Options Supplied Sports Gray and Sports White grilles. Tested to international standards for pressure and water tightness, it recognizes the XS Series is designed and built to the highest industry standards for quality and robustness. Perfect for installation both indoors and outdoors, the XS speakers are rated IP65 for water and dust ingress protection from the front when installed correctly, while also meeting industry standards for UV and salt fog protection. As a True-Marine product, the XS Series speakers are designed and engineered for the harsh marine environment.

The XS Series have passed stringent pressure and water tightness tests in accordance with ISO12216 (D1.1 for Areas II, III, and IV). This is critically important as it ensures the boat builders and consumers alike are installing genuinely safe speakers onboard their boat. By achieving ISO12216 compliance is a recognition of the product's superior design and build quality.

Includes

- 7.7" XS Series Speakers
-True-Marine? Designed & Engineered
- Optimized Full Range Speaker
-Easy to Use Controls
- Produces High Quality Audio
-UV & Salt Fog Protection
-Two Grille Options
- Perfect for Installation both Indoors and Outdoors
-True-Marine Product

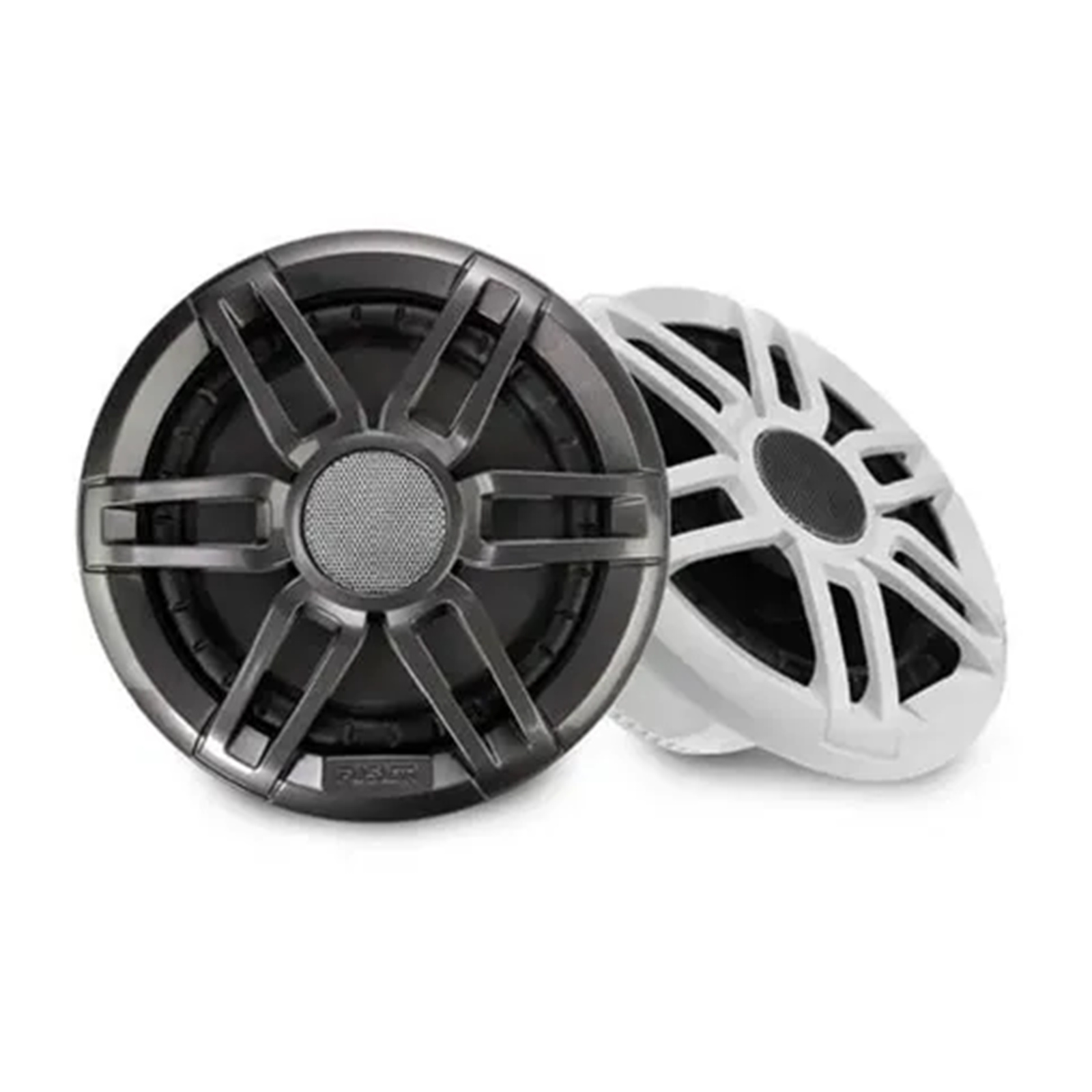

-Supplied with Sports Gray and Sports White Grilles

Specifications

Peak Power

240 Watt

Waterproofing

IP65 Weatherproof & Dust Standards

RMS Power Rating

60 Watts

Efficiency (1W/1M)

92 dB

Frequency Response

70 Hz - 18 kHz

Nominal Impedance

4 ohms

Recommended Amplifier Power (RMS)

25 - 200 W/Ch

Tweeter Type

Aluminum dome

Cone / Surround Material

Polypropylene with cloth surround

Mounting Diameter Clearance

162mm (6-3/8")

Mounting Depth Clearance

77mm (3")

Optimum Enclosure Volume (Sealed enclosure, fully filled with absorption material)

10L

Operating Temperature Range

0 to 50?C (32 to 122?F)

Storage Temperature Range

-20 to 70?C (-4 to 158?F)

Water and Dust Resistance (IP rating)

IP65

Speaker Dimensions Length x Height x Depth

196mm x 97mm [7-11/16" x 3-13/16"]

Manufacturer Part No:

010-02197-01

Brand:

FUSION

Product Type:

UPC

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

CARFSN1068

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
