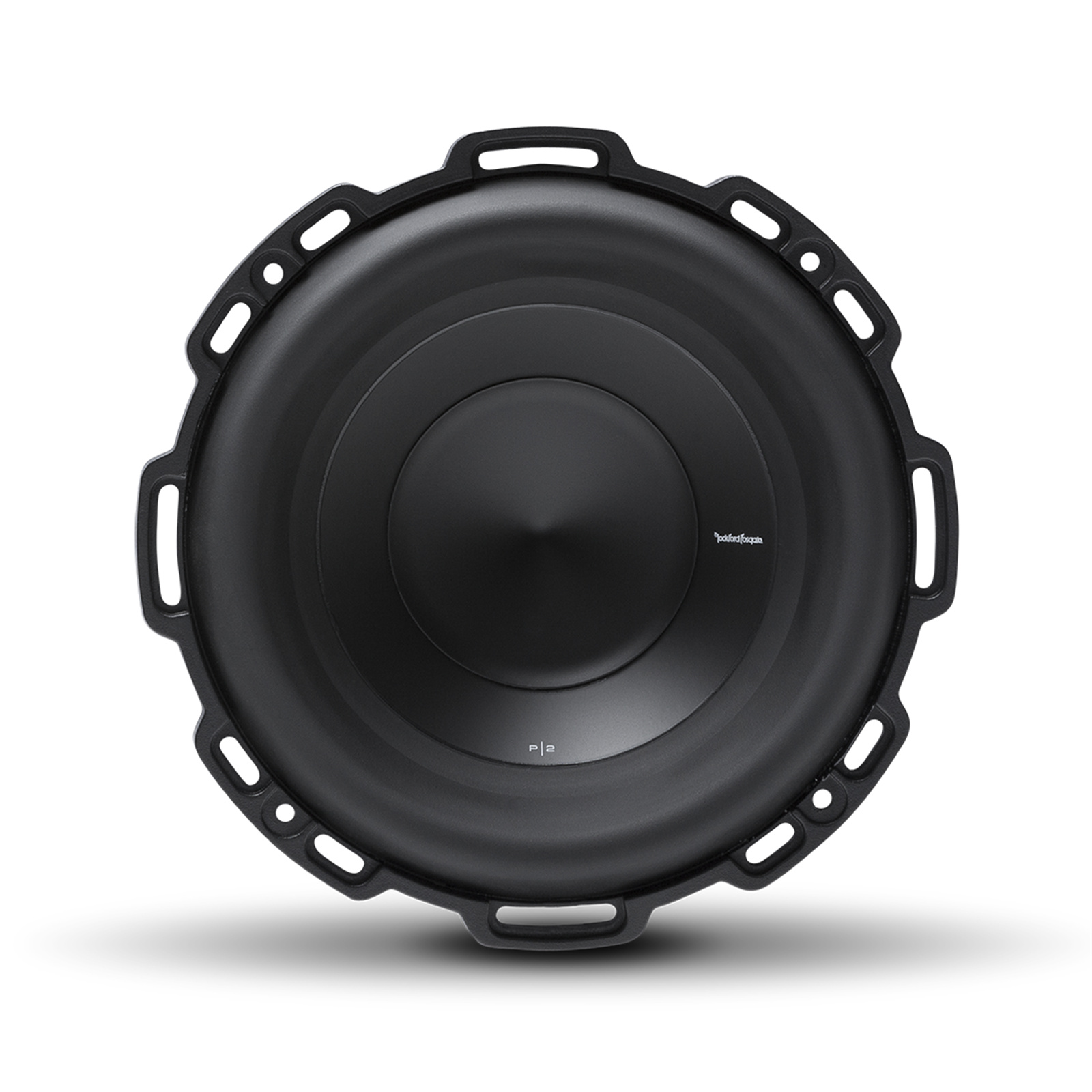

Rockford Fosgate Punch P2D2-8 Subwoofer 2 OHMS x 2, 8" 250W RMA / 500w Peak
Rockford Fosgate Punch P2D2-8 Subwoofer 2 OHMS x 2, 8" 250W RMA / 500w Peak
- Brand: Rockford Fosgate
- MPN: P2D2-8
- Part #: CARRFG1030
- UPC: 780687332655
- Brand: Rockford Fosgate
- MPN: P2D2-8
- Part #: CARRFG1030
- UPC: 780687332655
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Car Audio
Rockford Fosgate Punch P2D2-8 Subwoofer 2 OHMS x 2, 8" 250W RMA / 500w Peak
- Brand: Rockford Fosgate
- MPN: P2D2-8
- Part #: CARRFG1030
- UPC:780687332655
Product URL: https://www.pbtech.com/product/CARRFG1030/Rockford-Fosgate-Punch-P2D2-8-Subwoofer-2-OHMS-x-2
Features
Punch 8" P2 2-Ohm DVC Subwoofer
The Rockford Fosgate P2 8" subwoofer continues "The PUNCH" tradition. The P2D2-8 features a Dual 2-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring.
FEATURES AT A GLANCE
- Kevlar fiber reinforced paper cone
- Diamond cut cast aluminum trim ring with optional grille
- StampCast basket with integrated spider venting
- Custom 10-AWG nickel plated push terminals
- Protective PVC textured magnet cover
- Extended pole piece and bumped vented backplate
- Dual linear spider with embedded 16 AWG tinsel leads
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
Specifications
Size
8"
Woofer Displacement
0.042 cu. ft. (1.2 Liters)
Voice Coil Type
Dual Voice Coil
Subwoofer Type
Standard
Speaker Connector
Dual 10 AWG compression
Voice Coil Diameter
2.25" (57.7 mm)
Nominal Impedance
Dual 2-Ohm
Size
8"
Woofer Displacement
0.042 cu. ft. (1.2 Liters)
Voice Coil Type
Dual Voice Coil
Subwoofer Type
Standard
Speaker Connector
Dual 10 AWG compression
Voice Coil Diameter
2.25" (57.7 mm)
Nominal Impedance
Dual 2-Ohm
Qes
0.51
Fs (Hz)
39.6
Qms
5.40
Qts
0.46
SPL (dB @ 1w/1m)
83
Le (mH)
2.9
Re (Ohms)
3.40
Sd (cm2)
221
Vas (Liters)
9.9
Xmax (mm)
7.8
Sealed Box Volume (Vb)
0.23 cu. ft. (6.5 Liters)
Magnet Weight (oz)
49 oz. (1.38 kg.)
Cutout Diameter
7.13 in. (181 mm)
Power Handling (Watts RMS)
250 Watts RMS
500 Watts Max
Mounting Depth
4.76 in. (120.8 mm)
Shipping Weight
10.763 Lbs. (4.88 kg.)
Vented Box Volume (Vb)
0.65 cu. ft. (18.4 Liters)
