Rockford Fosgate Punch P2D2-15 Subwoofer (2 OHM x 2) 15" 400W RMS / 800W Peak
Rockford Fosgate Punch P2D2-15 Subwoofer (2 OHM x 2) 15" 400W RMS / 800W Peak
- Brand: Rockford Fosgate
- MPN: P2D2-15
- Part #: CARRFG1031
- UPC: 780687332716
- Brand: Rockford Fosgate
- MPN: P2D2-15
- Part #: CARRFG1031
- UPC: 780687332716
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Car Audio
Rockford Fosgate Punch P2D2-15 Subwoofer (2 OHM x 2) 15" 400W RMS / 800W Peak
- Brand: Rockford Fosgate
- MPN: P2D2-15
- Part #: CARRFG1031
- UPC:780687332716
Product URL: https://www.pbtech.com/product/CARRFG1031/Rockford-Fosgate-Punch-P2D2-15-Subwoofer-2-OHM-x-2
Features

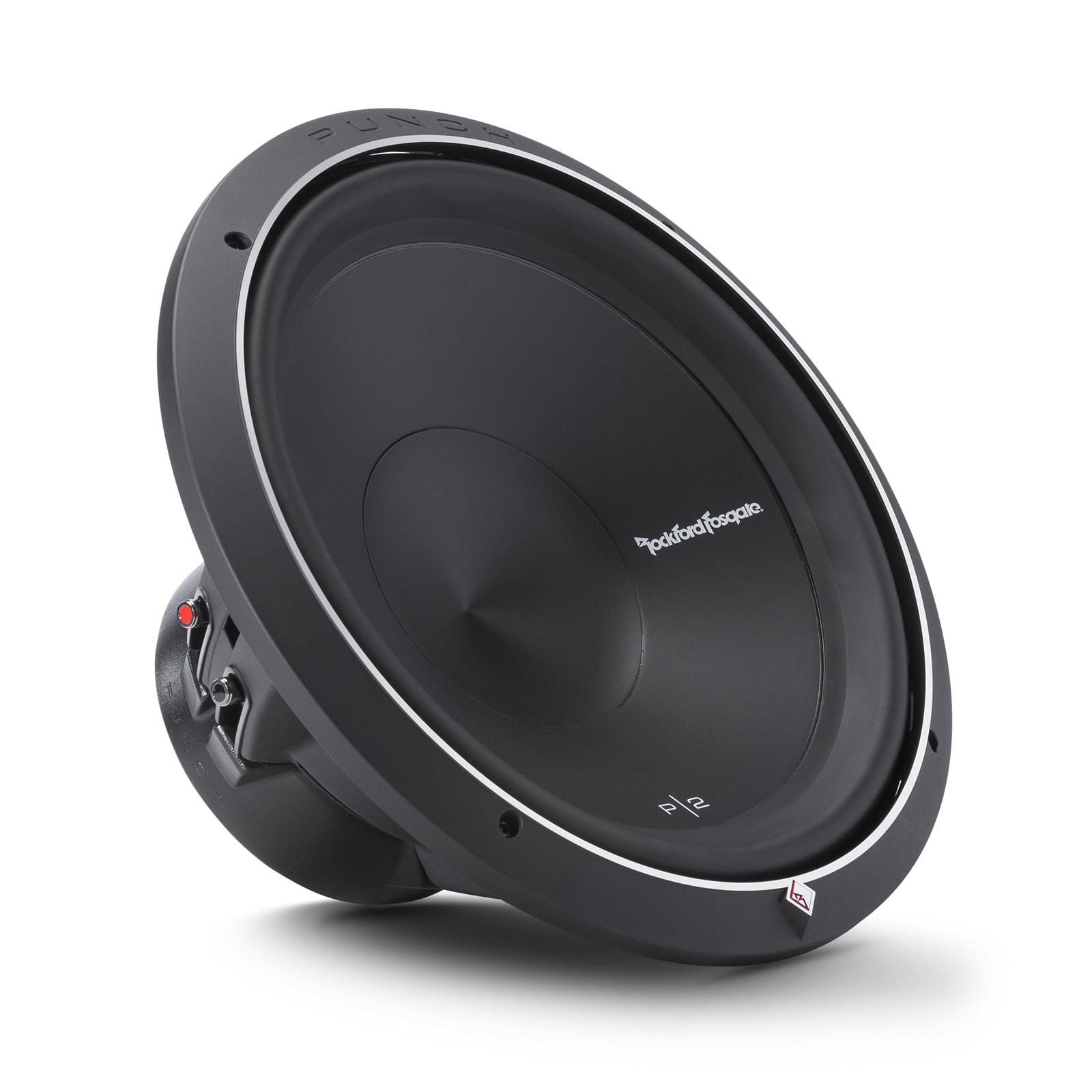

Punch 15" P2 2-Ohm DVC Subwoofer
The Rockford Fosgate P2 15" subwoofer continues "The PUNCH" tradition. The P2D2-15 features a Dual 2-Ohm voice coil, 400 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring.
Rockford Fosgate has always been known as "The PUNCH" and the P2 15" subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area up to 25%. The P2 subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available.
FEATURES AT A GLANCE
- Kevlar fiber reinforced paper cone
- Diamond cut cast aluminum trim ring with optional grille
- StampCast basket with integrated spider venting
- Custom 10-AWG nickel plated push terminals
- Protective PVC textured magnet cover
- Extended pole piece and bumped vented backplate
- Dual linear spider with embedded 16 AWG tinsel leads
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
Specifications
Power Handling (Watts RMS)
400 Watts RMS
800 Watts Max
Speaker Connector
Dual 10 AWG compression
Magnet Weight (oz)
72.8 oz. (2.06 kg.)
Shipping Weight
17.9 Lbs. (8.11 kg)
Size
15"
Nominal Impedance
Dual 2-Ohm
Mounting Depth
7.34 in. (186.5 mm)
Voice Coil Diameter
2.25" (57.15 mm)
Fs (Hz)
20
Woofer Displacement
0.134 cu. ft. (3.8 Liters)
Qts
0.62
Vas (Liters)
219.6
Qes
0.69
Le (mH)
3.4
Re (Ohms)
3.30
Qms
6.40
Cutout Diameter
13.9 in. (353 mm)
SPL (dB @ 1w/1m)
86
Xmax (mm)
13.3
Sd (cm2)
894
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
1.58 cu. ft. (44.7 Liters)
Vented Box Volume (Vb)
2.66 cu. ft. (75.3 Liters)
