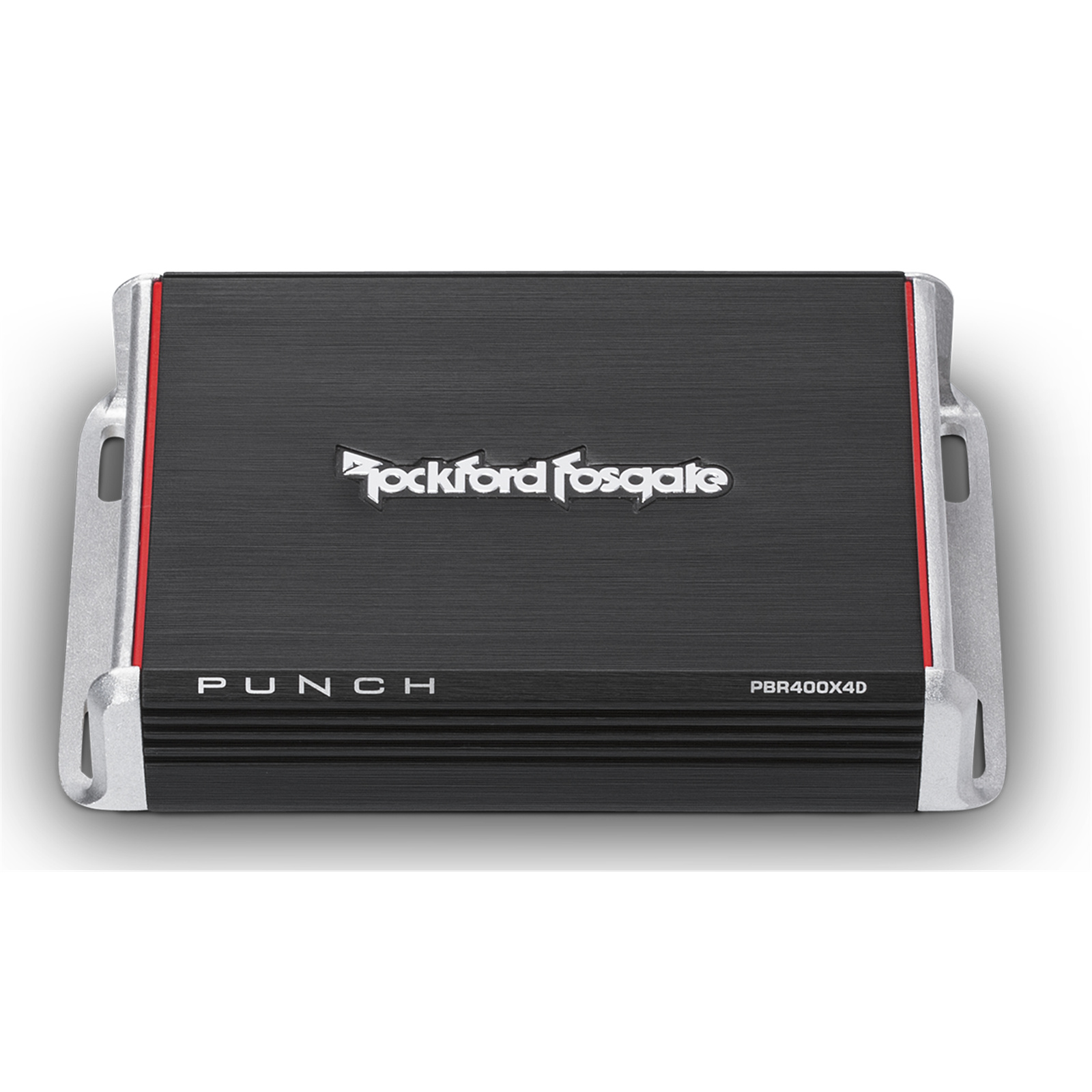

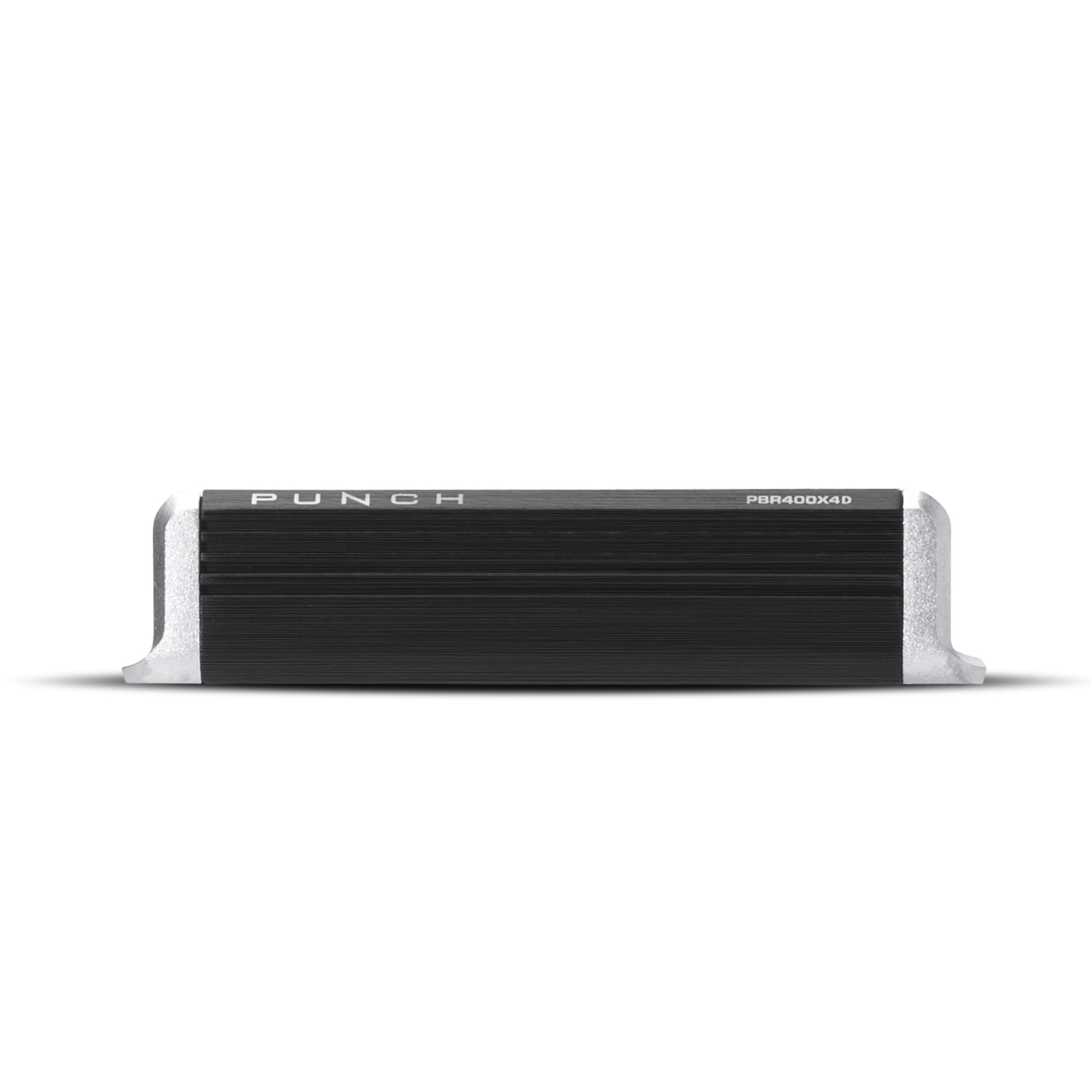

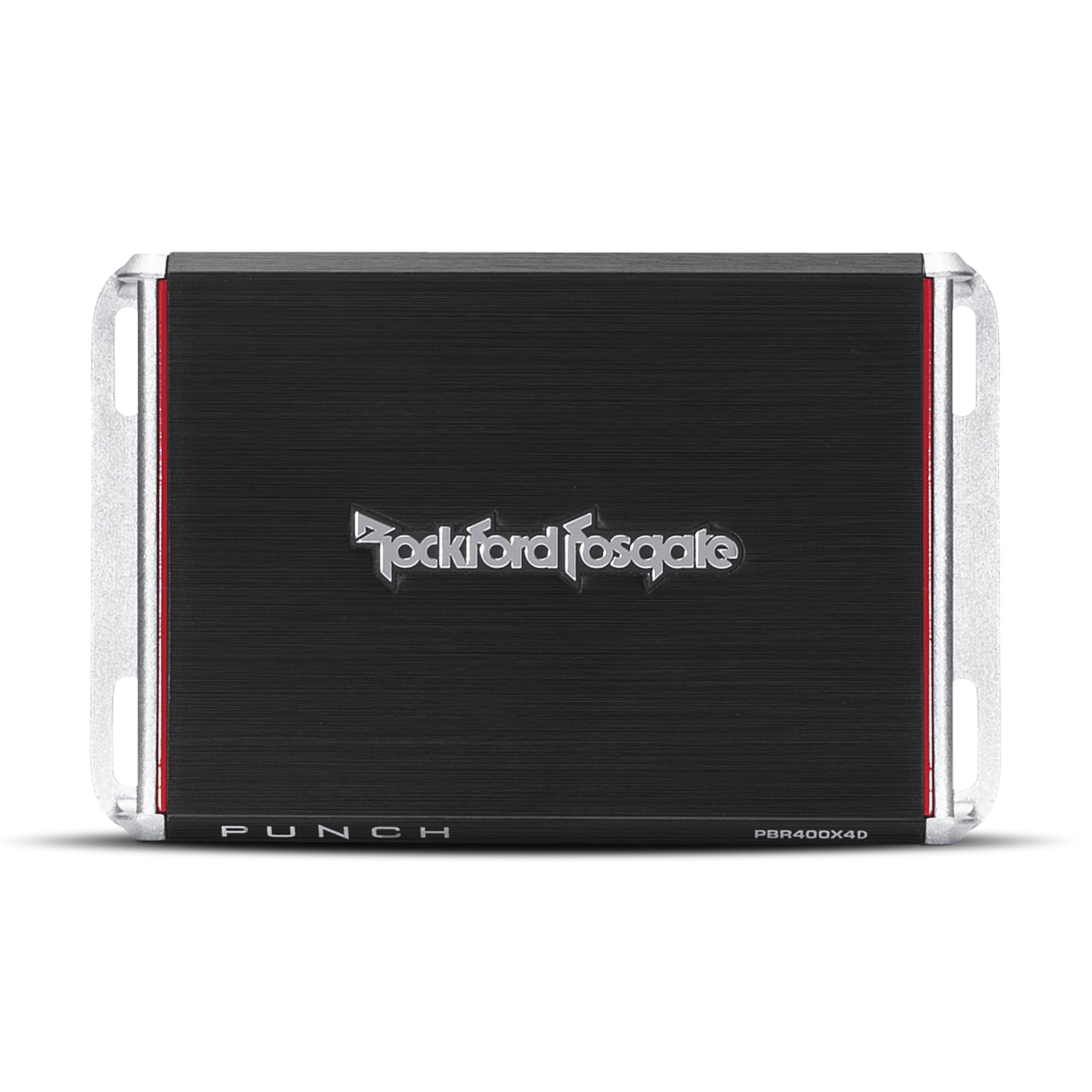

Rockford Fosgate Punch PBR400X4D Amplifier 400W Full Range 4 Channel
- Brand: Rockford Fosgate
- MPN: PBR400X4D
- Part #: CARRFG1032
- UPC:780687351427
Product URL: https://www.pbtech.com/product/CARRFG1032/Rockford-Fosgate-Punch-PBR400X4D-Amplifier-400W-Fu
Features
Punch Boosted Rail 400 Watt Full-Range 4-Channel Amplifier
The Punch PBR400X4D is a 400 Watt full-range car audio amplifier designed for compact systems. This efficient amp packs a Punch in truck, sub-compact, electric, and hybrid vehicles without sucking a lot of juice from your electrical system.
FEATURES AT A GLANCE
- Full Range Class-D
- Selectable Fixed 12dB/Octave Butterworth Crossovers
- Rockford Fosgate proprietary protection
- Compact design for stealth installations
- CEA-2006 and CE compliant
- Real time output and power supply thermal sensing
- Differential inputs with high level auto turn-on feature
- 8 AWG power/ground connector
- Remote-Out feature when using high level inputs
- Discrete surface mount technology
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Muted turn on
- Extruded aluminum heatsink
Specifications
Number of Channels
4
Total Power (Sum of Rated Power)
400 Watts
Rated Power (RMS Continuous Power)
50 Watts x 4 @ 4-Ohm
100 Watts x 4 @ 2-Ohm
200 Watts x 2 @ 4-Ohm Bridged
Dynamic Power (PVC/PowerCube®)
75 Watts x 4 @ 4-Ohm
130 Watts x 4 @ 2-Ohm
270 Watts x 2 @ 4-Ohm Bridged
Bridgeable
Yes
Frequency Response
20Hz - 20kHz +/- 1dB
Input Sensitivity
150 mV to 12 V
Circuit Topology Class
Class D
Efficiency (average)
> 75%
Total Harmonic Distortion (THD+Noise)
4-Ohm < 1.0
2-Ohm < 1.0
Signal Input
Input Switch: 2ch/4ch input switch
Hi-Level: Variable DC offset sensitivity
High-Level: Harness
Low-Level: 2 Pair RCA
Signal Output
-
Tone Controls
-
Crossover Controls
High-Pass: 60Hz or 80Hz @ 12dB/Octave
Low-Pass: 80Hz @ 12dB/Octave
Remote Controls
-
Visual Indicators
Power: Blue
Protect: Red
Input Clip: Red
Output Clip: Blue/Violet/Red
LED Color Legend
BLUE: <0.5% TDH
VIOLET: 1% THD
RED: ≥10% THD
Power Wire Gauge
8 AWG
Power Input Connector
Detachable Compression Terminal
Speaker Wire Gauge
16 AWG
Speaker Output Connector
Front: 4-Pin Harness
Rear: 4-Pin Harness
Cooling
Convection
Heatsink
Extruded Aluminum
Operating Voltage
9 - 16 VDC
Recommended Fuse (not included)
60 A
Average Current Draw (13.8V Music)
27 A
Max. Current Draw (13.8V Sinewave)
50 A
Suggested Alternator
75 A
Dimensions (H x W x D)
1.53 x 4.25 x 6.75 (in)
3.9 x 10.79 x 17.16 (cm)
