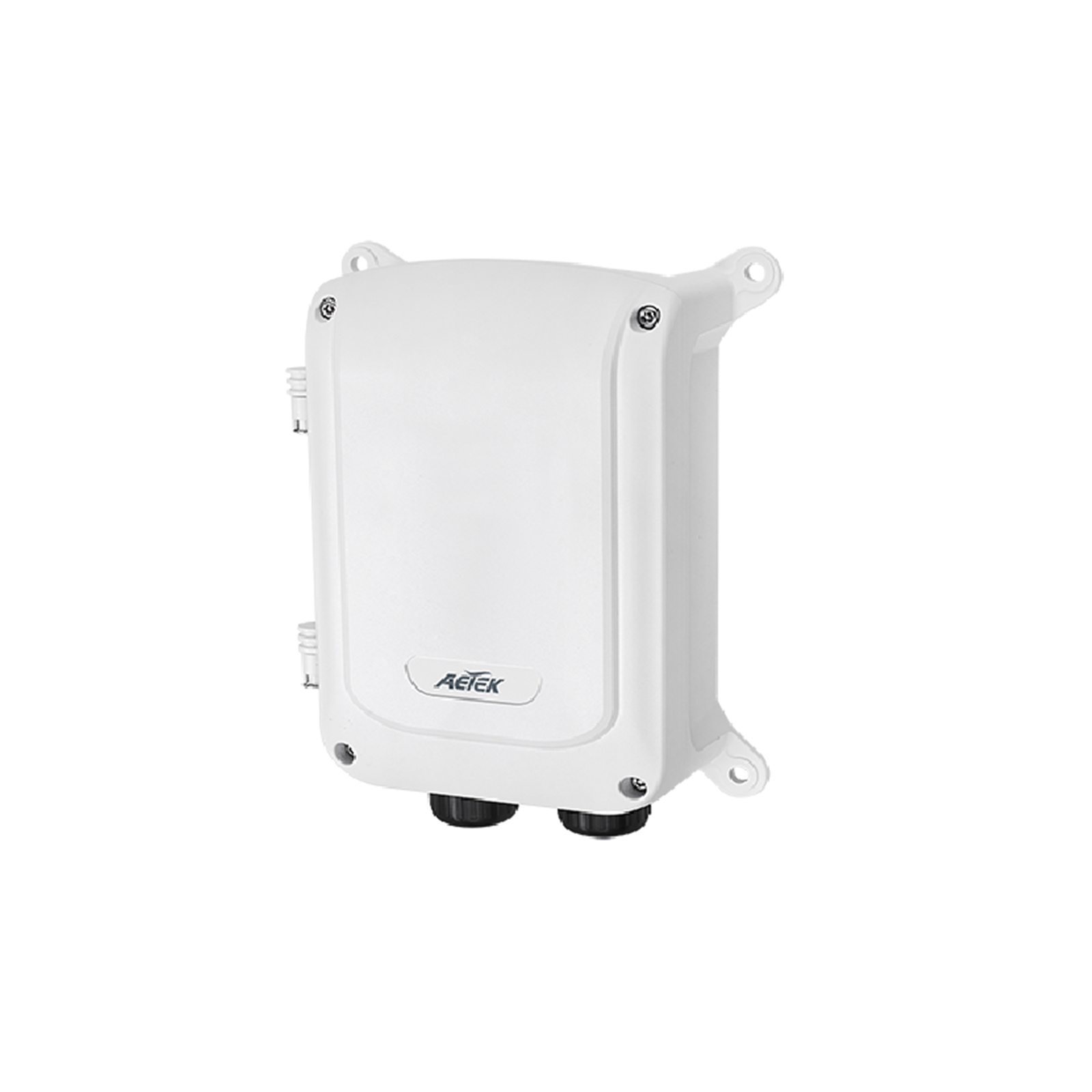

AETEK H21-041-30-075 Outdoor 4-Port Switch
AETEK H21-041-30-075 Outdoor 4-Port Switch
- Brand: AETEK
- MPN: H21-041-30-075
- Part #: CCTATE1016
- UPC:
- Brand: AETEK
- MPN: H21-041-30-075
- Part #: CCTATE1016
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Security Systems





AETEK H21-041-30-075 Outdoor 4-Port Switch
- Brand: AETEK
- MPN: H21-041-30-075
- Part #: CCTATE1016

Product URL: https://www.pbtech.com/product/CCTATE1016/AETEK-H21-041-30-075-Outdoor-4-Port-Switch
Features
Outdoor 4xPoE FE+1xFE EXPoE Switch
H21 outdoor unmanaged EXPoE switch series, a IP67 / IK10 unit, operates in harsh environments between -40°C ~ 65°C for outdoor IP Surveillance application. Besides standard 802.3af/at PoE functions, the EXtensive mode delivers extreme distances of camera image & power maximum up to 250m via specific EXPoE ports for long reach PoE IP cameras. Meanwhile, the H21 series also features extra 20% range of input voltage tolerance, lightning surge protection on AC power & PoE surge protection to prevent the damage caused by outside unstable AC power, lightning surge and power spike.
The H21 series has two sub models consisting of 5-port H21-041-30-075 and 10-port H21-082-30-150 with a range of power budgets from 75W to 150W for outdoor IP surveillance.
- 2 of the 4 PoE ports can be adjusted as EX PoE mode
- Total power budget 75W
- All-in-One easy outdoor installation
- 15.4W/30W 802.3af/802.3at compliant
- 6KV PoE surge protection each port
- 10KV AC surge protection
- 20% range of input voltage tolerance
- Circuit protection prevents power interference between ports
- Detects PoE PD (power device) automatically
- EX mode OFF reaches PoE camera up to 100m @ 100Mbps via any PoE port
- EX mode ON reaches 802.3af camera up to 250m @ 10Mbps via EXPoE ports
- EX mode ON reaches 802.3at camera up to 200m @ 10Mbps via EXPoE ports
Applications

Specifications
Network
Total Fast Ethernet Ports
5
PoE Port @ EX Mode OFF
4x30W PoE ports
PoE Port @ EX Mode ON
2x30W EXPoE + 2x30W PoE ports
Fast Ethernet RJ45 ports
1
Mac Table
2K
Jumbo Frames
1,536 Bytes
Switching Capacity
1Gbps
Power
Input Voltage
100VAC ~ 240VAC
280VAC 4Hr
300VAC 1min.
Backup Power Input Voltage
48VDC ~ 56VDC
Output Voltage Range/Per PoE port
54 VDC
PoE IEEE 802.3af (Max. 15.4W) output
PoE+ IEEE802.3at (Max. 30W) output
PSE Power Pin Assignment
12(+),36(-)
PoE Surge Protection
6KV
AC Power Surge Protection
10KV
Power Budget
75W
Mechanical
Dimensions (L x W x H)
255.2 x 199.9 x 90 mm
Weight
2.1 kg (4.62 lb)
Connectors
M25 x 2
Environmental
Weather Rating
IP67
Vandal Proof
IK10
Operating Temperature
-40°C ~ 65°C (-40°F ~ 149°F)
Storage Temperature
-40°C ~ 85°C (-40°F ~ 185°F)
Operating Humidity
5% ~ 95% non-condensing
Certifications
EMC
CE, FCC, VCCI, C-Tick
Safety
EN60950-1, IEC60950-1
Surge
EN61000-4-5
