AETEK SD-101 Indoor PoE Surge Protector

PB Tech price
PB Tech price
AUD $ 101 .16
$ 101 .16
$101.16  +GST
$101.16

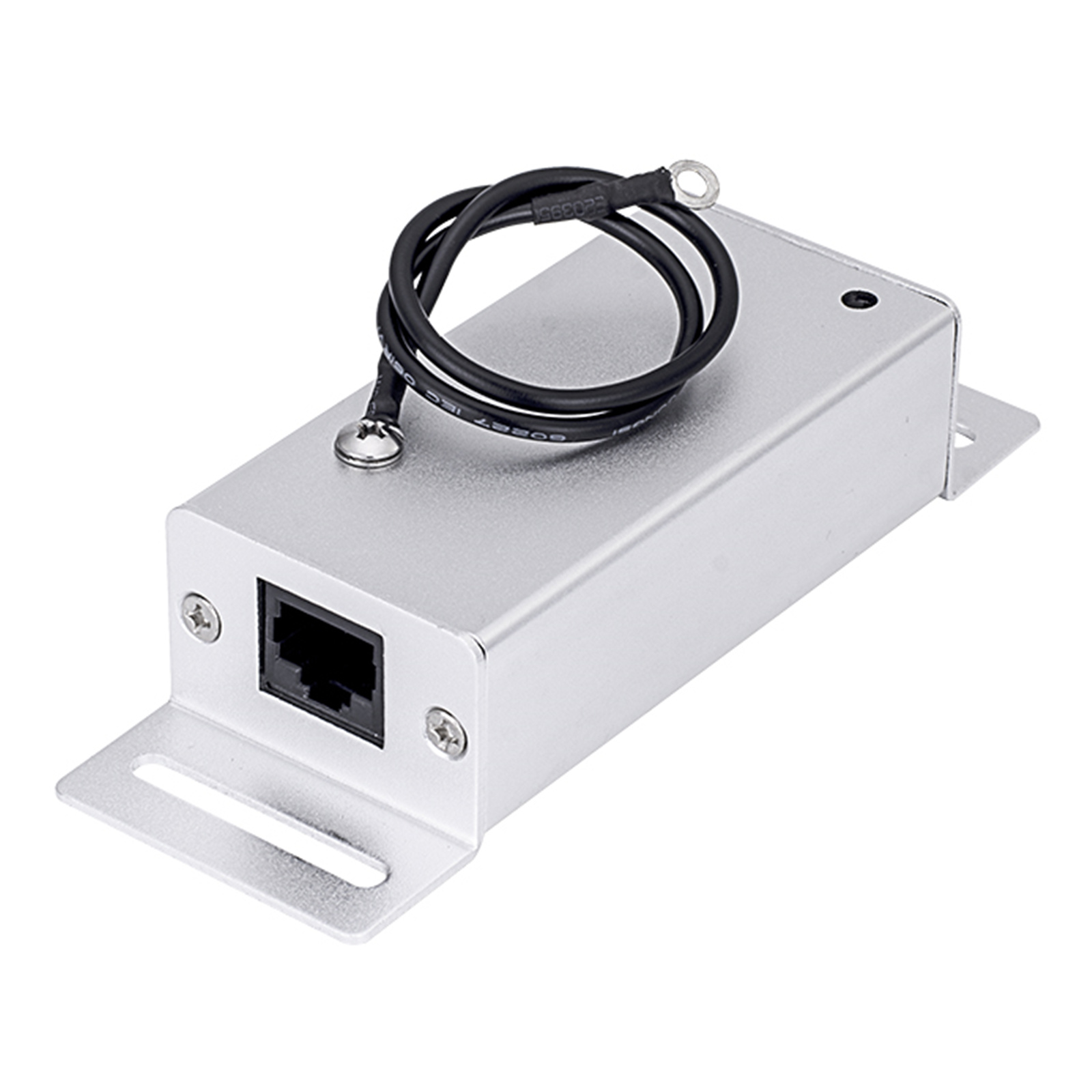

AETEK SD-101 Indoor PoE Surge Protector

  • Brand: AETEK
  • MPN: SD-101
  • Part #: CCTATE1029
  • UPC:
PB Tech price
AUD $ 101 .16 $ 101 .16


Delivery: Order now and it ships on 19 Jun
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$101.16  +GST
$101.16

Features

The SD series surge protectors are proven to keep PoE switches, PoE PDs, and other IP devices safe from lightning and other forms of electrical interference, including power surges and spikes over networking cables. Two sub-models (the SD-101 and SD-201) are classified as hardened-grade surge protectors, and will operate in harsh weather conditions from -40°C to 85 °C.

The SD-101 is designed to be deployed besides PoE switches, or inside junction or power boxes. With a robust operating temperature range, the SD-101 will prevent surges of up to 10KA and features plug-and-play installation.

- Supports 10M/100M/1G/2.5G bps Ethernet
- IEEE 802.3 bt/at/af compliant
- Support UPoE
- Protects eight wires of networking cable including PoE
- Protects up to 20KV/10KA surge
- Failure Indicator LED
- Operating temperature from -40°C to 85 °C

Applications

Specifications

Hardware Specifications

Number of Ports

1

Pass Through Data Rates

10M/100M/1G/2.5G bps

Transmission Media

Cat. 5e,6 UTP/STP

PoE Supoort

802.3af / 802.3at / 802.3bt

Max Discharge Current (8/20us)

10KA

Maximum Operation DC Voltage

60VDC

Maximum Operation DC Current

1A for 2 pair, 2A for 4 pair, 95W maximum

Common Mode Protection Level (10/700us)

20KV

Differential Mode Protection Level (10/700us)

4KV

Clamping Voltage (Line to GND)

600V

Clamping Voltage (Line to Line)

20V

Insertion Loss @ 10MHz/100MHz

1db

Return Loss @ 10MHz/100MHz

-20db

Response Time

5ns

Mechanical Specifications

Dimensions (L x W x H)

80 x 40 x 25 mm

Weight

0.18KG

Connectors

RJ45 x 2

Environmental Specifications

Operating Temperature

-40°C~ 85°C (-40°F~ 185°F)

Storage Temperature

-40°C~ 85°C (-40°F~ 185°F)

Operating Humidity

5% ~ 95% non-condensing

Certifications

EMC

CE, FCC, VCCI, C-Tick

Surge

ITU-T K.21
IEC-61643-21
IEC-61000-4-5
TIA-968-A (FCC Part68)

Manufacturer Part No:
SD-101
Brand:
AETEK
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
CCTATE1029
Product Model:
-
