Milesight TS8266-X4PE NDAA AI Road Traffic Pro Bullet Plus Camera
Milesight TS8266-X4PE NDAA AI Road Traffic Pro Bullet Plus Camera
- Brand: Milesight
- MPN: TS8266-X4PE
- Part #: CCTMLS1158
- UPC:
- Brand: Milesight
- MPN: TS8266-X4PE
- Part #: CCTMLS1158
- UPC:
Features
Milesight TS8266-X4PE NDAA AI Road Traffic Pro Bullet Plus Camera
- ONVIF Profile G & Q & S & T, API Compatible
- Supports 802.3at PoE
- 120dB Super WDR
- Traffic Violation Detection
- Intelligent AI-powered LPR Algorithm
- Traffic Flow Statistics
- Evidence Camera Linkage
- Up to 4K Ultra High Definition
- Vandal-proof IK10
- Support Video Content Analysis
- IP67-rated for weather-resistant performance
- vGRID SaferCity Platform Compliant
Traffic Violation Detection
Accurately detect and alert violation events such as No-plate Vehicle Detection, Specific Lane Detection, Reverse Driving Detection, Black/White List Detection and Vehicle Event Detection for mission-critical road traffic management.
Traffic Flow Statistics
The vehicle counting result based on vehicle type and various vehicle features can be shown intuitively in camera's live view and the camera can also generate useful report insights to further enhance traffic management capabilities.
Evidence Camera Linkage
Beyond vehicle feature and license plate recognition, Milesight AI Road Traffic Camera can link with any regular cameras to capture the evidence. With seamless triggering between Milesight traffic camera and regular camera, users can easily provide solid and convincible evidence including LPR results as well as overview snapshots.
LPR Smart Search
Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports manual export and auto export for easy management.
Intelligent AI-powered LPR Algorithm
Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight AI Road Traffic Pro Bullet Plus Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to improve safety and mobility.
1/1.8" Starlight Sensor & 0.002Lux Ultra Low Light
Milesight AI Road Traffic Pro Bullet Plus Camera, with top-notch STARVIS Starlight Sensor, can provide detailed clear images in low and near-infrared light conditions down to 0.002Lux (Color) and 0Lux (B/W), ensuring good performance for 24/7 traffic monitoring.
90fps High Frame Rate
With the industry leading frame rate reaching 90fps, Milesight AI Road Traffic Pro Bullet Plus Camera can easily catch vehicle and plate images with no latency despite of the high-speed movement.

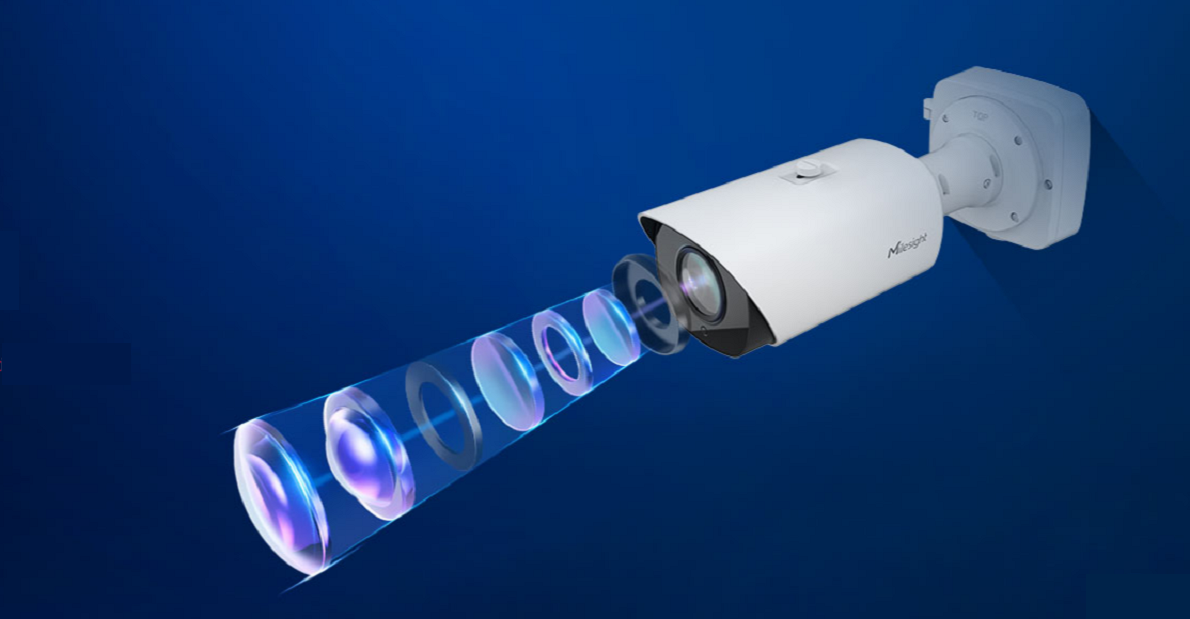

4x Optical Zoom
The 4x Optical Zoom can zoom in to distant vehicles while still maintaining clarity, delivering high quality video over the entire image.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and lK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

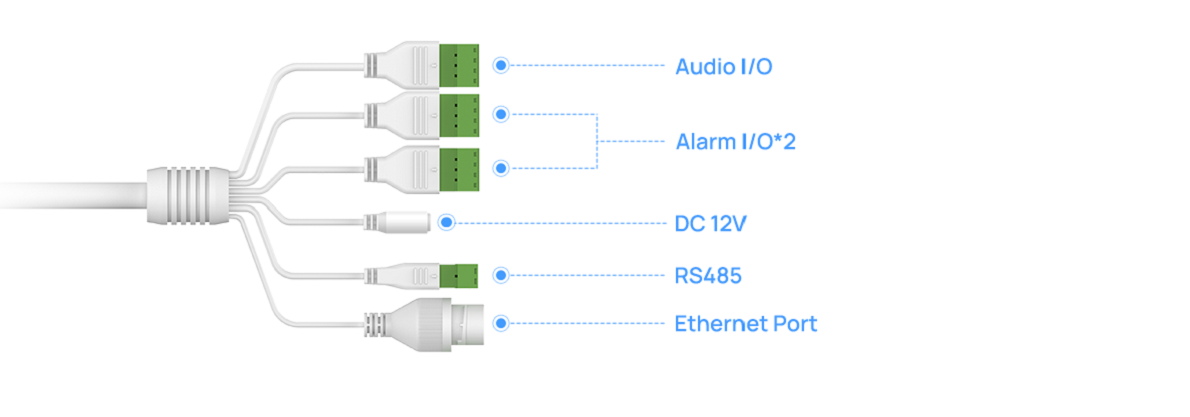

Versatile Interfaces
A rich set of interfaces such as DC, Audio I/O and Alarm I/O are available to offer more choices for easy management and various needs. For example, the alarm interface allows easy integration with traffic light control systems, ensuring smooth operation and compatibility.
SIP/VoIP Support
Milesight AI Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Surveillance Cameras
EZVIZ EP7 3MP/2K Outdoor Wire-Free Smart Battery Video Intercom...
EZVIZ EP3x Pro 3MP/2K Dual-lens Outdoor Wire-Free Battery Video...
EZVIZ DB2 PRO 5MP/2K+ Outdoor Wire-Free Smart Video Doorbell with...
Baseus Security S1 3MP/2K Outdoor Wire-Free Solar Camera - 2Pack...
TP-Link VIGI C350 5MP Full-Colour Bullet Network Camera 4mm
Milesight TS8266-X4PE NDAA AI Road Traffic Pro Bullet Plus Camera
- Brand: Milesight
- MPN: TS8266-X4PE
- Part #: CCTMLS1158
Product URL: https://www.pbtech.com/product/CCTMLS1158/Milesight-TS8266-X4PE-NDAA-AI-Road-Traffic-Pro-Bul
Features
Milesight TS8266-X4PE NDAA AI Road Traffic Pro Bullet Plus Camera
- ONVIF Profile G & Q & S & T, API Compatible
- Supports 802.3at PoE
- 120dB Super WDR
- Traffic Violation Detection
- Intelligent AI-powered LPR Algorithm
- Traffic Flow Statistics
- Evidence Camera Linkage
- Up to 4K Ultra High Definition
- Vandal-proof IK10
- Support Video Content Analysis
- IP67-rated for weather-resistant performance
- vGRID SaferCity Platform Compliant
Traffic Violation Detection
Accurately detect and alert violation events such as No-plate Vehicle Detection, Specific Lane Detection, Reverse Driving Detection, Black/White List Detection and Vehicle Event Detection for mission-critical road traffic management.
Traffic Flow Statistics
The vehicle counting result based on vehicle type and various vehicle features can be shown intuitively in camera's live view and the camera can also generate useful report insights to further enhance traffic management capabilities.
Evidence Camera Linkage
Beyond vehicle feature and license plate recognition, Milesight AI Road Traffic Camera can link with any regular cameras to capture the evidence. With seamless triggering between Milesight traffic camera and regular camera, users can easily provide solid and convincible evidence including LPR results as well as overview snapshots.
LPR Smart Search
Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports manual export and auto export for easy management.
Intelligent AI-powered LPR Algorithm
Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight AI Road Traffic Pro Bullet Plus Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to improve safety and mobility.
1/1.8" Starlight Sensor & 0.002Lux Ultra Low Light
Milesight AI Road Traffic Pro Bullet Plus Camera, with top-notch STARVIS Starlight Sensor, can provide detailed clear images in low and near-infrared light conditions down to 0.002Lux (Color) and 0Lux (B/W), ensuring good performance for 24/7 traffic monitoring.
90fps High Frame Rate
With the industry leading frame rate reaching 90fps, Milesight AI Road Traffic Pro Bullet Plus Camera can easily catch vehicle and plate images with no latency despite of the high-speed movement.
4x Optical Zoom
The 4x Optical Zoom can zoom in to distant vehicles while still maintaining clarity, delivering high quality video over the entire image.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and lK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.
Versatile Interfaces
A rich set of interfaces such as DC, Audio I/O and Alarm I/O are available to offer more choices for easy management and various needs. For example, the alarm interface allows easy integration with traffic light control systems, ensuring smooth operation and compatibility.
SIP/VoIP Support
Milesight AI Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Specifications
MPN
TS8266-X4PE
Product Name
NDAA AI Road Traffic Pro Bullet Plus Camera
Min. Illumination
Color: 0.009Lux @ F1.6 B/W: 0Lux with IR on
WDR
120dB Super WDR
Shutter Time
1/100000s~1s
Lens
8~32mm, 4x Optical Zoom
Field of View
H44°~H13°/D51°~D15°/V25°~V7°
Focus Control
Auto/Manual
Illumination Distance
Up to 70m during the day; Up to 35m during the night with illumination
Max. Image Resolution
3840x2160
Primary Stream
60Hz: 30fps @ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps @ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream
60Hz: 60fps @ (704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps @ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream
60Hz: 30fps @ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps @ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate
16Kbps~16Mbps (CBR/VBR adjustable
Privacy Masking
Up to 8 areas
Region Of Interest
Up to 8 areas
Image Settings
Saturation/Brightness/Contrast/Sharpness
Interfaces
Ethernet(10/100), Audio I/O(1/1), Alarm I/O(4/2), RS485(1)
Audio Compression
G.711/AAC/G.722/G.726
Audio Sampling Rate
8/16/32/48KH
Audio Bit Rate
16~256kbps
Two-way Audio
Supported
StorageSupport
Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function
BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC,Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP
Supported - Voice&Video-over-IP
Event Trigger
Black/White List, Attributes Event, Motion Detection,Network Disconnection, External Input, Audio Alarm, etc.
Event Action
FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility
ONVIF Profile G & Q & S & T, API
Working Condition
Temperature: -40°C~60°C / Humidity: 0~95%(Non-condensing)
Power Supply
PoE (802.3at) / DC 12V±10%
Power Consumption
9W MAX, 13W MAX(With IR on)
Weather Proof
Up to IP67-rated for Weather-resistant Performance
Housing
Vandal-proof IK10-rated Metal Housing (Optional)
Dimensions/Weight
320mmx134mmx171mm /1.7kg
