Milesight UG65-915M-EA-H32 UG65 Helium compatible LoRaWAN IoT Hotspot with WiFi and PoE Support

PB Tech price

AUD $ 655 .97

$ 655 .97

Milesight UG65-915M-EA-H32 UG65 Helium compatible LoRaWAN IoT Hotspot with WiFi and PoE Support

Brand: Milesight
MPN: UG65-915M-EA-H32
Part #: CCTMLS1193
UPC:

PB Tech price

AUD $ 655 .97

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 26 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Milesight
MPN: UG65-915M-EA-H32
Part #: CCTMLS1193
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The Milesight UG65 is a robust 8-channel indoor AS923 LoRaWAN IoT Gateway, which is compatible with Helium LongFi technology. Adopting the SX1302 LoRa chip, high-performance quad-core CPU and secure crypto chip, the UG65 provides high-efficiency and a reliable connection. The UG65 has line of sight up to 15km and can cover about 2 km in an urban environment, which can cover larger areas and provide connectivity to more than 2000 nodes. Besides the helium mining feature, the UG67 can also work as a normal IoT gateway with mainstream network server support ( TTI, ChirpStack, etc.) and built-in network server and Milesight IoT Cloud for easy deployment

The UG65 supports multiple back-haul backups with Ethernet, Wi-Fi and cellular connections (Optional).

- IP65 Rating
- NXP Quad-Core Processor
- Semtech SX1302 LoRa Chip
- Built-in ECC608 crypto chip
- Proof-of-Coverage rewards miners paid in Helium tokens
- Multiple Backhaul Connectivity options
- Embedded Network Server
- Compatible with Multiple Network Servers
- Milesight Cloud compliant
- Supports 2000+ end devices
- Easily onboard and monitor 100's of LoRaWAN Gateways with the Scopious onboarding tool

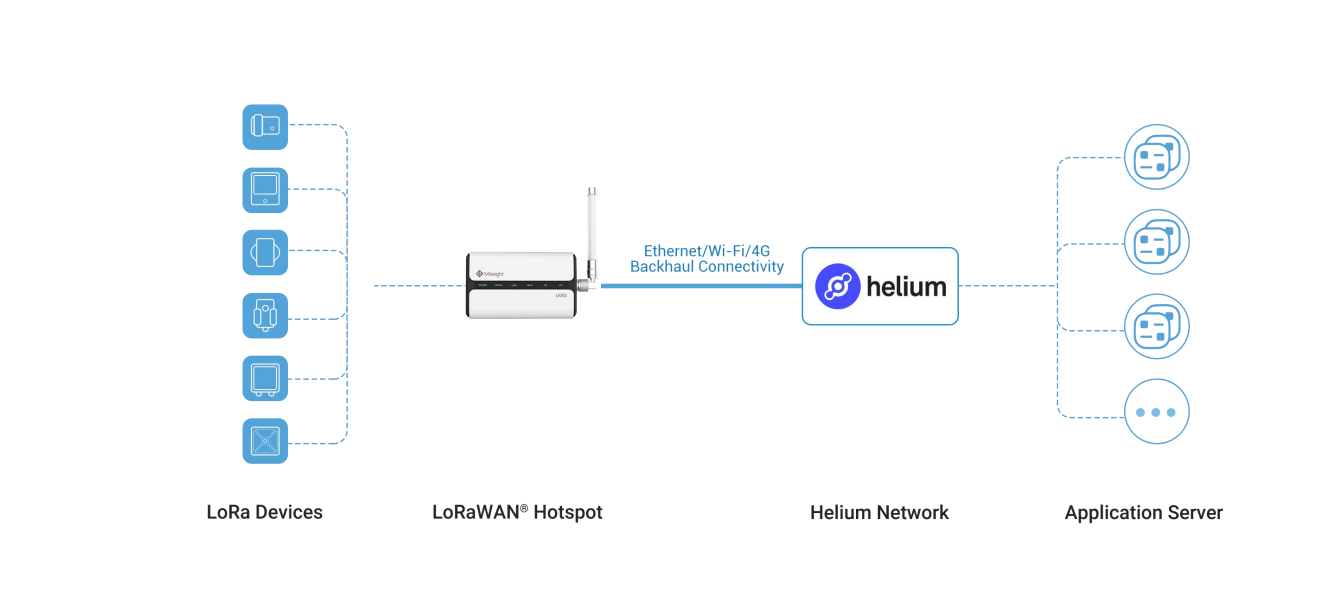

Application Example

Specifications

Manufacturer's Code

UG65-915M-EA-H32

CPU

Quad-core 1.5 GHz, 64-bit ARM Cortex-A53

Memory

512 MB DDR4 RAM

Flash

8 GB eMMC

LoRaWAN Antenna

Internal Antenna and 1 × 50 O N-Female External Connector)

Channels

Frequency Bands

AU915/AS923

Sensitivity

-140dBm Sensitivity @292bps

Output Power

27dBm Max

Protocol

V1.0 Class A/Class C and V1.0.2 Class A/Class C

Ethernet

1 × RJ45 (PoE PD support)

Data Rate

10/100/1000 Mbps (Auto-Sensing)

Mode

Full or Half Duplex (Auto-Sensing)

Wi-Fi Antenna

Integrated and Internal Antenna

Standards

IEEE 802.11 b/g/n

Tx Power

13-18dbm

Network Protocols

PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.

VPN

OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN

Firewall

ACL/DMZ/Port Mapping/MAC Binding/URL Filter

Power Supply

DC Jack Connector for 9-24 VDC power supply or 802.3 af PoE input

Consumption

= 4.2W

Ingress Protection

IP65

Dimensions

180 x 110 x 56.5 mm

Mounting

Desktop, Wall or Pole Mounting

Reset Button

1 x RST

Console Port

Type-C Port

Operating Temperature

-40°C to +70°C (-40? to +158?)

Storage Temperature

-40°C to +85°C (-40? to +185?)

Relative Humidity

0% to 95% (non-condensing) at 25°C/77°F

Manufacturer Part No:

UG65-915M-EA-H32

Brand:

Milesight

Product Type:

UPC

Product Family:

Shipping Weight:

0.5 kg

PB Part No:

CCTMLS1193

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
