Milesight UR32-L00AU-W-P UR32 Industrial 3G/4G/LTE PoE DIN Mountable Router with I/O Serial andWi-Fi
- Brand: Milesight
- MPN: UR32-L00AU-W-P
- Part #: CCTMLS1210

Product URL: https://www.pbtech.com/product/CCTMLS1210/Milesight-UR32-L00AU-W-P-UR32-Industrial-3G4GLTE-P
Features
Milesight UR32 Industrial 3G/4G/LTE PoE DIN Mountable Industrial Router with Wi-Fi
The Milesight UR32 is a cost-effective industrial cellular router with embedded intelligent software features that are designed for multiple M2M/IoT applications. Global WCDMA and 4G LTE carrier support makes this great for operators when maximizing uptime. Integrating an embedded cellular modem and dual SIM function, the UR32 provides 3G/4G connectivity with up to 150 Mbps download and 50 Mbps uplink, it also has 2 fast Ethernet ports and supports 802.11b/g/n WiFi. Easy deployment and comprehensive remote device management makes the UR32 versatile in most IoT/M2M applications.
- Dual SIM cards for backup between multiple carriers
- Ethernet, I/O, serial port, Wi-Fi, GPS for connecting diverse field assets
- Rugged enclosure, optimized for DIN rail or shelf mounting

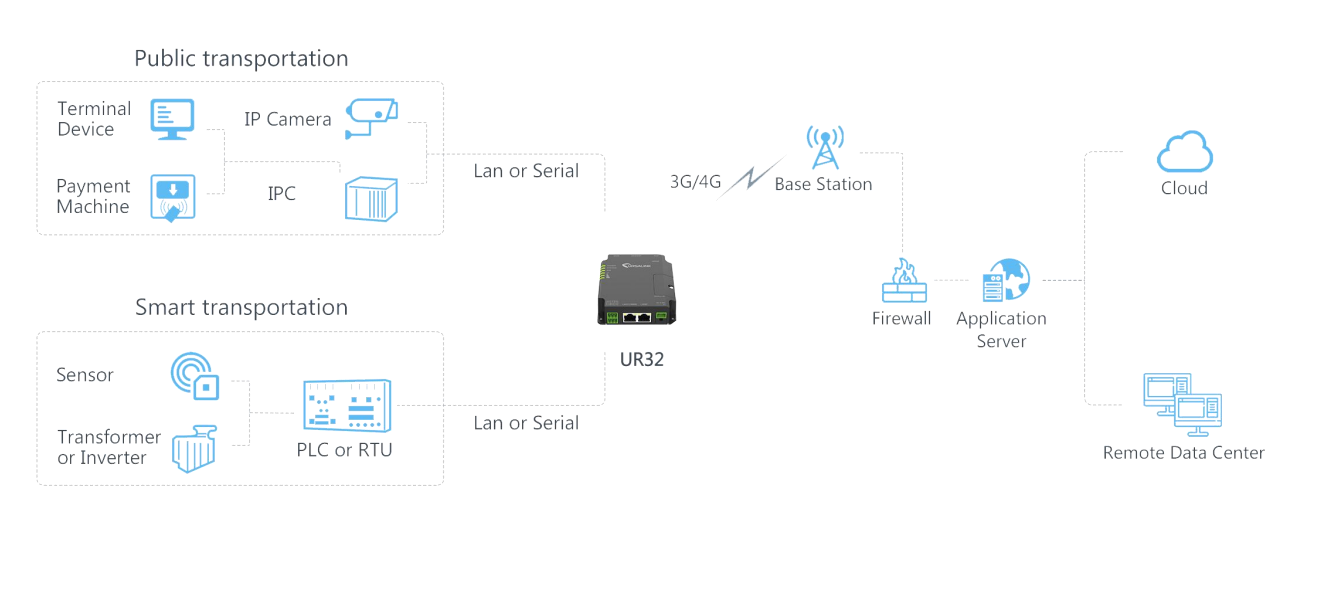

Application Example
Specifications
CPU
528 MHz, ARM Cortex A7
Memory
128 MB Flash, 128 MB DDR3 RAM
Storage
1 × Micro SD
Interfaces
1 × WAN + 1 × LAN or 2 × LAN (PoE PSE Optional)
Data Rate
10/100 Mbps (Auto-Sensing)
Connectors
2 × 50 O SMA (Center PIN: SMA Female)
SIM Slots
2
Freq bands
3G:B1/B2/B5/B8 WCDMA, 4G:B1/B2/B3/B4/B5/B7/B8/B28@FDD LTE, B40 @TDD LTE
WiFi Modes
AP or client
Serial
1 × RS232 Terminal block ( RS485 Optional) Baud Rate 300bps to 230400bps
Digital IO
1 × DI + 1 × DO
Network Protocols
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
Power Input Connector
2-pin with 5.08 mm terminal block
Input Voltage
9-48 VDC (48 V power input is needed for PoE output)
Power Consumption
Typical 1.9 W, Max 2.4 W (In Non-PoE mode)
Power Output
2 × 802.3 af/at PoE output
Ingress Protection
IP30
Housing & Weight
Metal, 271 g
Dimensions
108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)
Mounting
Desktop, Wall or DIN Rail Mounting
