TP-Link VIGI NVR1016H 16 Channel Network Video Recorder
1 HDD Interface (up to 10 TB)
Out of stock
TP-Link VIGI NVR1016H 16 Channel Network Video Recorder
1 HDD Interface (up to 10 TB)
- Brand: TP-Link
- MPN: VIGI NVR1016H
- Part #: CCTTPL11016
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"The NVR works very well. Easy to configure and it works with ...view more"
Features
VIGI 16 Channel Network Video Recorder
- 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- 16-Channel Real-Time Live View: Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.
- Quick Lookup and Playback: Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.
- Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensure Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- 1 HDD Interface (up to 10 TB)†: Stores up to 10 TB (720 days? of video) on a SATA hard drive, keeping your data storage secured locally.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management
VIGI NVR Introduction
The VIGI network video recorder coordinates with camera systems to help you view, store, and playback videos.
Security for every hour and every day.
Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
Every angle all on one screen.
Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.
Reviewing footage is faster than ever.
Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.

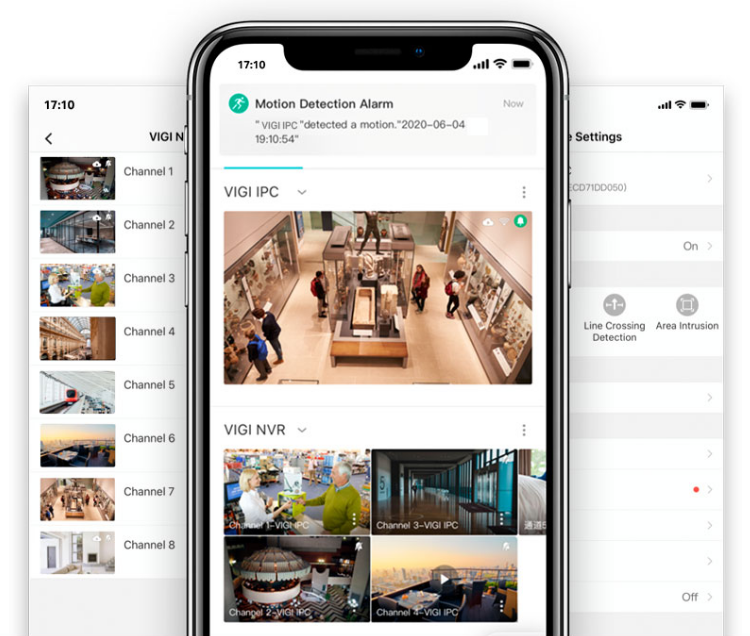

Keep an eye on things even when you are on the move.
Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.

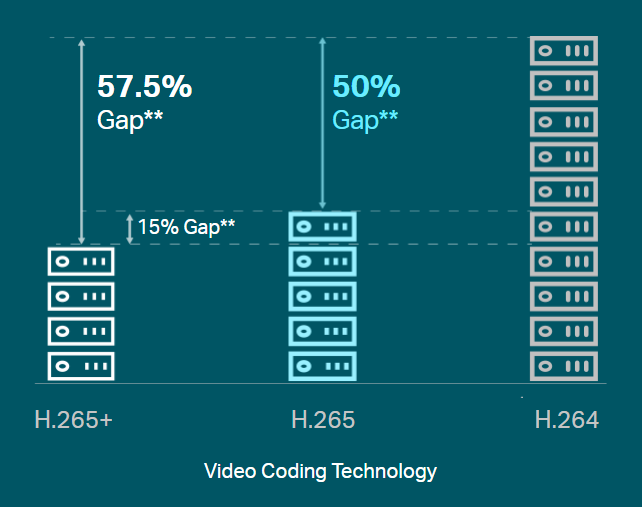

More Compression. More Savings. More Quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

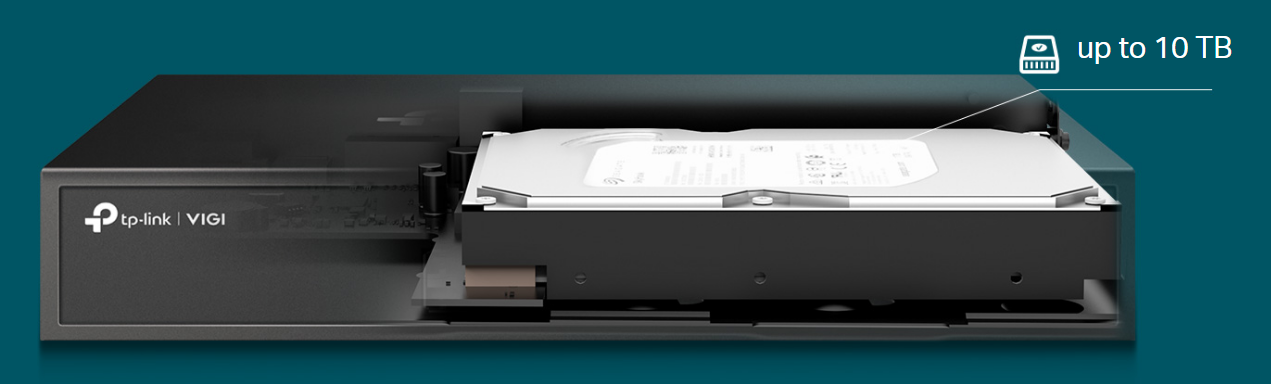

Up to 524 days of footage stored locally.
Stores up to 10 TB ( 524 days of video) on a SATA hard drive, keeping your data storage secured locally.
Greet your visitors before they enter.
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

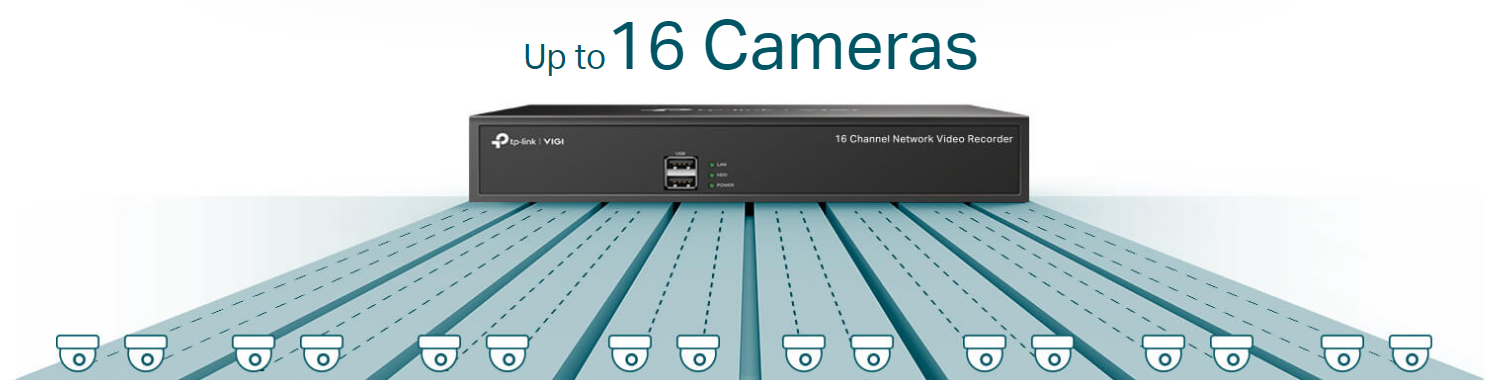

More bandwidth for more cameras.
High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to 16× 4MP cameras.
Specifications
Reviews
Do you own this product?
Network video recorder
The NVR works very well. Easy to configure and it works with most of my Reolink cameras. Although it does work best with TP-Link cameras, of which I have 1x at the moment.
Playback works much better than other surveillance recorders that I have used. One can simply drag the timeline to the left (back in time), then stop at any point and it starts playing back from that point.
Other NVRs and mobile Apps seem to struggle with playback and there can be long delays before it starts showing the recorded video.
I installed a 2TB Western Digital Purple HDD.
I am happy with the unit and will over time replace my Reolink cameras with TP-Link VIGI ...view more
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Network Video Recorders
Ubiquiti UniFi (UCG-Fiber) 10G Cloud Gateway Fiber (SSD Tray not...
Ubiquiti UniFi (UDR7) Dream Router 7 10G Cloud Gateway with NVR...
Ubiquiti UniFi (UDM-PRO) Dream Machine Pro 10G Cloud Gateway with...
Ubiquiti UniFi (UCG-Max) 2.5G Cloud Gateway Max with NVR 2.5GbE...
Ubiquiti UniFi Protect UNVR 1U 4-Bay Network Video Recorder
TP-Link VIGI NVR1016H 16 Channel Network Video Recorder 1 HDD Interface (up to 10 TB)
- Brand: TP-Link
- MPN: VIGI NVR1016H
- Part #: CCTTPL11016
Product URL: https://www.pbtech.com/product/CCTTPL11016/TP-Link-VIGI-NVR1016H-16-Channel-Network-Video-Rec
Features
VIGI 16 Channel Network Video Recorder
- 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- 16-Channel Real-Time Live View: Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.
- Quick Lookup and Playback: Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.
- Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensure Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- 1 HDD Interface (up to 10 TB)†: Stores up to 10 TB (720 days? of video) on a SATA hard drive, keeping your data storage secured locally.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management
VIGI NVR Introduction
The VIGI network video recorder coordinates with camera systems to help you view, store, and playback videos.
Security for every hour and every day.
Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
Every angle all on one screen.
Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.
Reviewing footage is faster than ever.
Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.
Keep an eye on things even when you are on the move.
Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
More Compression. More Savings. More Quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Up to 524 days of footage stored locally.
Stores up to 10 TB ( 524 days of video) on a SATA hard drive, keeping your data storage secured locally.
Greet your visitors before they enter.
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
More bandwidth for more cameras.
High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to 16× 4MP cameras.
Specifications
Video and Audio
IP Video Input
16-Channel
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
60 Mbps
HDMI Output Resolution
1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution
1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode
HDMI/VGA Simultaneous Output
Multi-View Display
1/4/6/8/9/16
DECODING
Audio Compression
G.711A/G.711U/G.726
Decoding Format
H.265+/H.265/ H.264+/H.264
Video Compression
H.265+/H.265/ H.264+/H.264
Record Resolution
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Live View/Playback Resolution
8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback
16-Channel
Capability
1-ch @ 8 MP, 2-ch @ 4 MP, 4-ch @ 2 MP
Record Management
Record Mode
- Manual Recording
- Scheduling Recording
- Motion Detection Recording
Playback Mode
- Instant Playback
- Regular Playback
- Tag Playback
- Event Playback
Backup Mode
- Regular Backup
- Video Clip Backup
Playback Function
- Play
- Pause
- Stop
- Fast Forward
- Fast Backward
- Play By Frame
- Full Screen
- Video Clip
- Export Clip
- Digital Zoom
- Lock Recording
- Audio On/Off
NETWORK
Protocol
TCP/IP, DHCP, DNS, NTP, UPnP
Mobile Phone Access
Android, iOS
Incoming Bandwith
80 Mbps
Outgoing Bandwidth
60 Mbps
Web Browser
Chrome (57+), Firefox (52+), Edge (91+)
Interoperability
ONVIF, CGI
External Interface
Network Interface
1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface
2× USB 2.0
Audio Interface
1, Audio In; 1, Audio Out
Power
1× DC Jack
Reset Button
1
HDMI
1
VGA
1
HARD DISK
SATA
1 SATA Interface
Capacity
Up to 10 TB Capacity for Each HDD
Alarm
General Alarm
- Motion Detection
- Video Tampering
- Line-Crossing Detection
- Intrusion Detection
- Region Entering Detection
- Region Exiting Detection
- Object Abandoned/Removal Detection
- Vehicle Detection
- Human Detection
Anomaly Alarm
- Video Loss
- Offline and IP Conflict
- Disk Exception
- Login Exception
Alarm Linkage
- Recording
- White Light Alarm
- Buzzer
- Log
- Audible Alarm
INTERFACES
Network Interface
1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface
2× USB 2.0
GENERAL
Operating Temperature
-10-55 °C
Storage Temperature
-40-70 °C
Storage Humidity
10%~90% RH Non-Condensing
Weight
578.5 g
Package Contents
VIGI Network Video Recorder
Power Adapter
HDD Screws
Quick Installation Guide
Working Temperature
- NVR: -10-55 °C
- Power Adapter: 0-40 °C
Working Humidity
10%~90% RH Non-Condensing
Dimensions( W X D X H )
246.2 × 148.2 × 45 mm
External Power Supply
DC 12V/1.5A
Net Weight
0.6 Kg
Gross Weight
1.06 Kg
Power Consumption
4.25 W (without disk)
Certifications
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, IC, HDMI
VIDEO/IMAGE
Video Input
16-Channel IP Video Input, up to 8 MP Resolution
Video Output
Recording Resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI/VGA:Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz
