TP-Link VIGI NVR2016H-16P 4K 16 Channel PoE+ Network Video Recorder

16-Ports PoE+ up to 90W - Supports up to 2x 10TB HDD

Brand: TP-Link
MPN: VIGI NVR2016H-16P
Part #: CCTTPL12016
UPC:

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 26 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: TP-Link
MPN: VIGI NVR2016H-16P
Part #: CCTTPL12016
UPC:

Be the first to review this product

Max Camera Resolution

8 MP

Video Recorder Type

NVR

Max Cameras Supported

HDD Bays

View full specs

Returns & Warranty Bulk Quote Print Page

Similar in-stock products available at PB Tech right now

Reolink NVS16 16 Channel 4K Network Video Recorder with 4TB HDD

HDMI & VGA - 2x HDD Bay - 16x PoE Ports

1 review

Wishlist Compare

Video Recorder Type:

NVR

Max Cameras Supported:

Max Camera Resolution:

16 MP

HDD Bays:

MPN:

NVS16

Part #:

CCTRLK1095

1 review

PB Tech price

$479 .74

$479.74

1 review

Hurry, only 5 units left!

Ships tomorrow

Wishlist Compare

Features

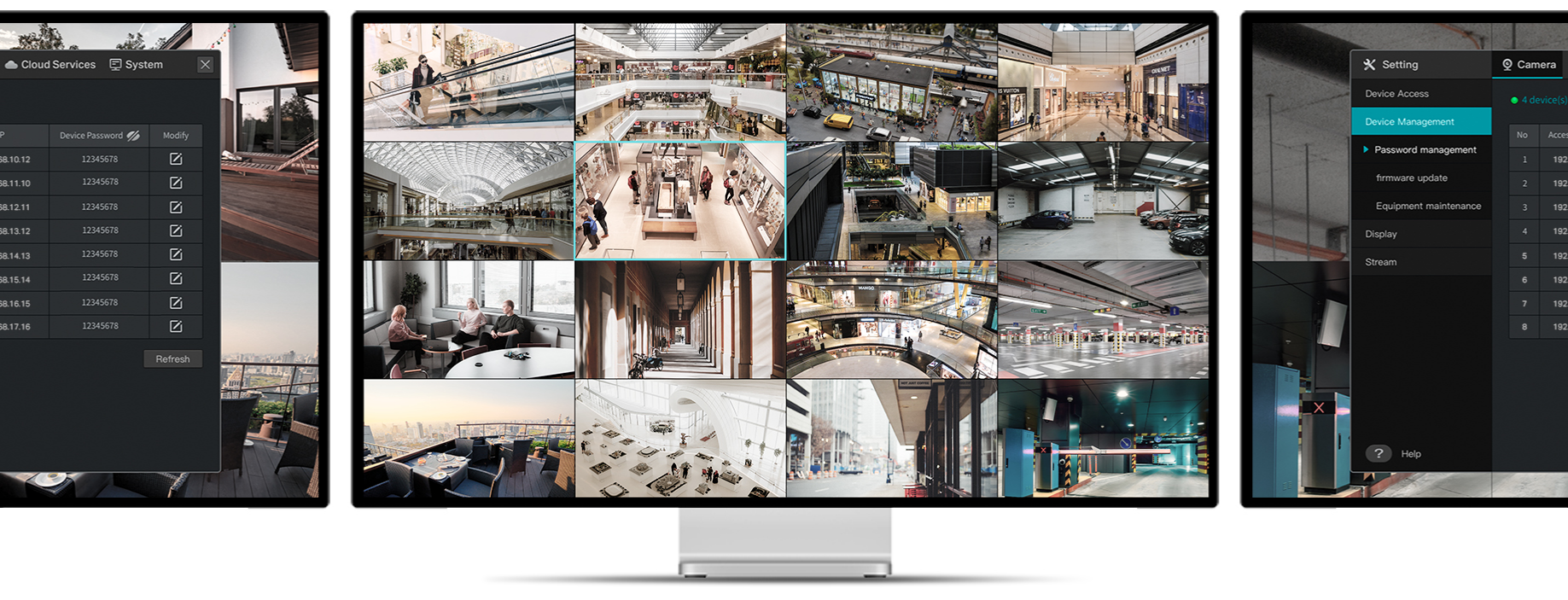

Every Angle All on One Screen
4K HDMI Video Output & 16MP Decoding Capacity

Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels of live view and playback at the same time.†

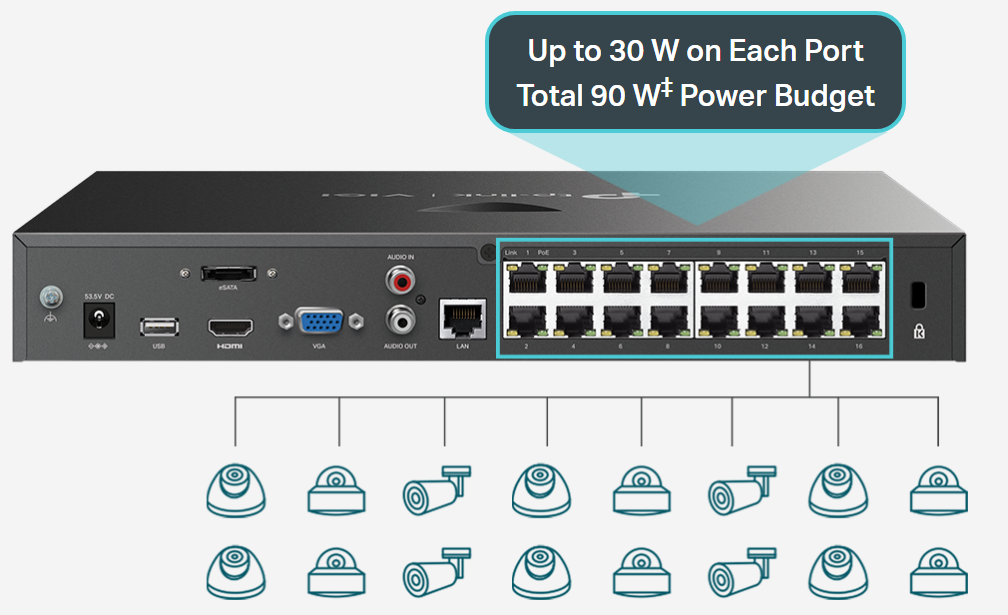

Dedicated 16 PoE+ Ports for Simplified IP Camera Deployment.

Designed to use a single Ethernet cable for both data and power transmission, this NVR offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.

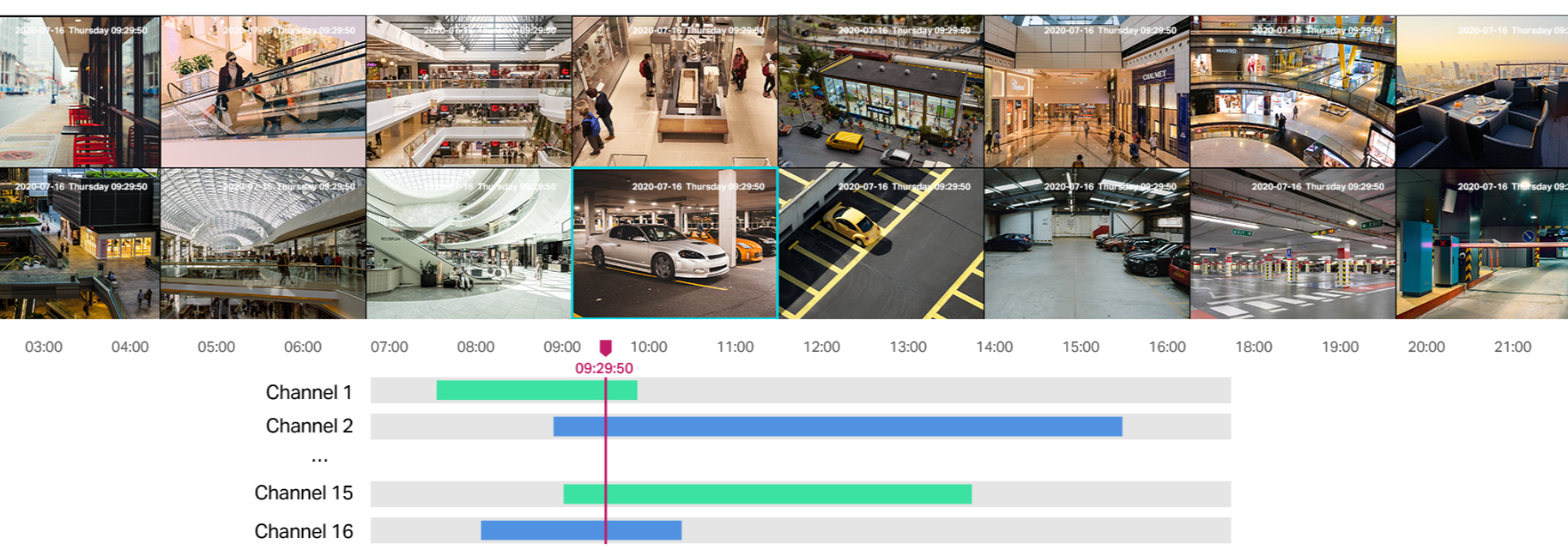

Reviewing Footage is Faster than Ever
16-Channel Simultaneous Playback*

Replay the feed from up to 16 cameras at the same time, increase replay speed,and find events in the video schedule to easily review footage.

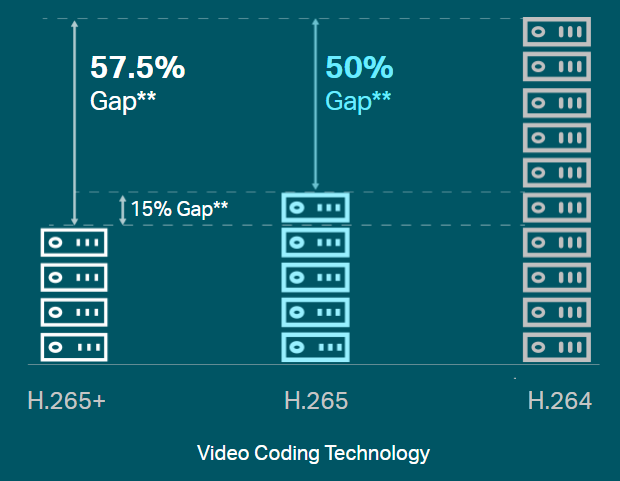

More Compression. More Savings. More Quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

No Need to Check Long Compatibility Lists
ONVIF Ensures Compatibility

Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. ?

Security for Every Hour and Every Day
27/4 Continuous Recording

With the storage capacity of up to 20TB, the NVR supports 24/7 continuous local recording. Customize record schedule or record type to save storage space and quickly search out target footage.

Two-Way Audio

With voice intercom support, scare off any potential thieves or intruders from wherever you are.

Specifications

VIDEO AND AUDIO

IP Video Input

16-Channel

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

60 Mbps

HDMI Output Resolution

1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

VGA Output Resolution

1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

Video Output Mode

HDMI/VGA Simultaneous Output

Multi-View Display

1/4/6/8/9/16

DECODING

Audio Compression

G.711A/G.711U/G.726

Video Compression

H.265+/H.265/ H.264+/H.264

Record Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback

16-Channel

Capability

25fps:
2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

30fps:
4-ch @ 3MP, 2-ch @ 5MP

RECORD MANAGEMENT

Record Mode

Manual Recording, Scheduling Recording, Motion Detection Recording

Playback Mode

Instant Playback, Rgular Playback, Tag Playback, Event Playback

Backup Mode

Regular Backup, Video Clip Backup

Playback Function

Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

NETWORK

Protocol

UPnP (Plug and Play), NTP (Network Timing)

Mobile Phone Access

Android, iOS

Web Browser

Chrome (57+), Firefox (52+), Edge (91+)

Interoperability

ONVIF, CGI

EXTERNAL INTERFACE

Network Interface

1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface

USB Interface

1 Front USB 2.0 Port, 1 Rear USB 2.0 Port

Audio Interface

1, Audio In; 1, Audio Out

Power

1× DC Jack

Reset Button

eSATA

HDMI

VGA

HARD DISK

SATA

2 SATA Interfaces

Capacity

Up to 10 TB Capacity for Each HDD

POE

Standard

802.3at/af Compliant

Interface

1- 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

PoE Budget

90 W Available for All PoE+ Ports, 30 W Max per Port

ALARM

General Alarm

Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame

Anomaly Alarm

Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception

Alarm Linkage

Recording, White Light Alarm, Buzzer, Log, Audible Alarm

GENERAL

Storage Temperature

-40-70 °C

Storage Humidity

10%~90% RH Non-Condensing

Package Contents

VIGI Network Video Recorder
Power Adapter
Power Cables
HDD Power Cables
HDD Data Cables
Mounting Accessories
Mouse
Quick Installation Guide

Working Temperature

NVR: -10-55 °C
Power Adapter: 0-40 °C

Working Humidity

10%~90% RH Non-Condensing

Dimensions( W X D X H )

330 × 285 × 45 mm

Net Weight

1.9 Kg

Gross Weight

3.2 Kg

Power Supply

53.5V DC/2.43A

Power Consumption

6.2 W (Without Disk)
40 W (With Disk)

Certifications

CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Manufacturer Part No:

VIGI NVR2016H-16P

Brand:

TP-Link

Product Type:

Network Video Recorder

UPC

Product Family:

VIGI

Shipping Weight:

4 kg

PB Part No:

CCTTPL12016

Product Model:

NVR2016H-16P

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
