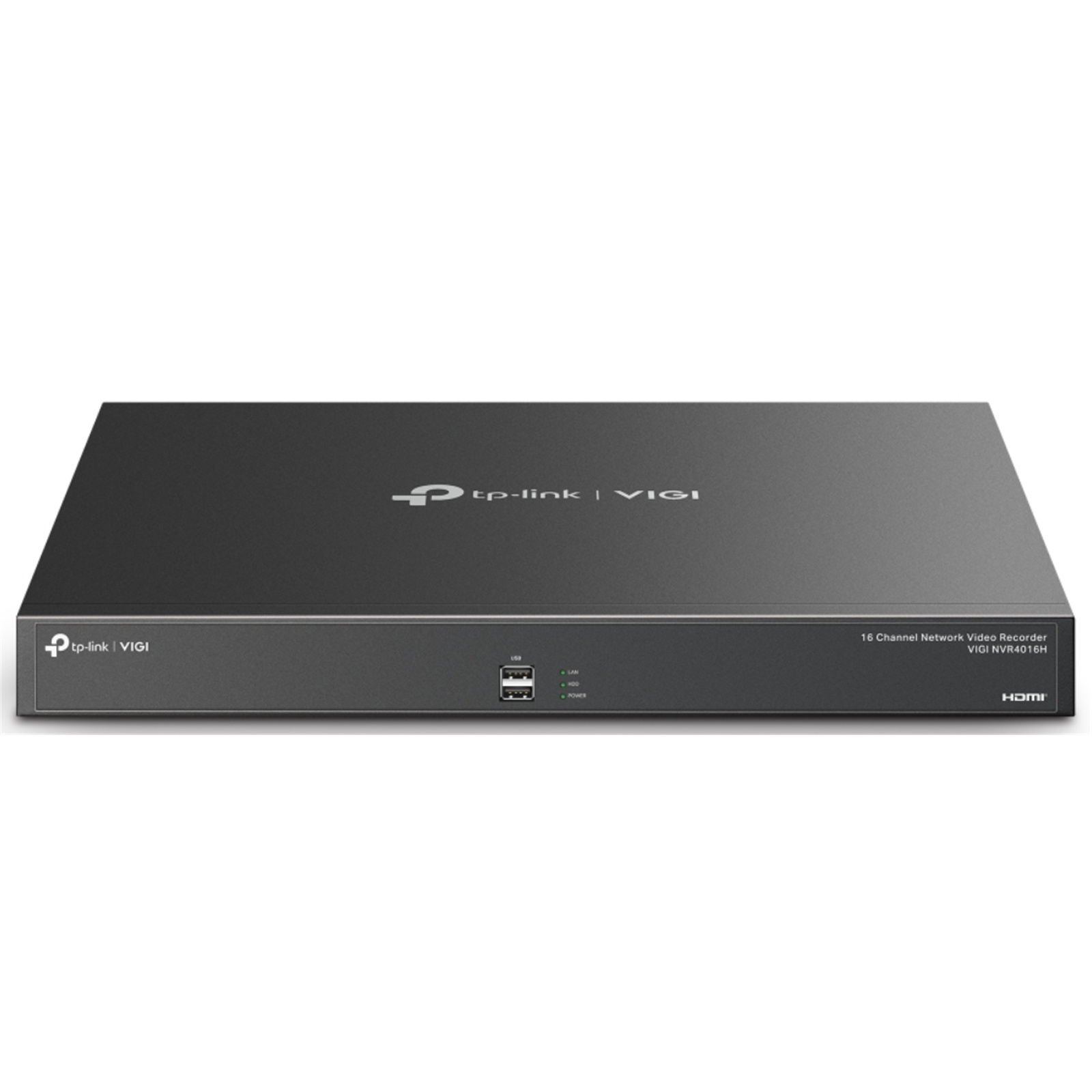

TP-Link VIGI NVR4016H 16 Channel Network Video Recorder

4x SATA Interfaces - 1 Up to 16 TB / 16-Channel Live View - 4K HDMI Video Output

Brand: TP-Link
MPN: VIGI NVR4016H
Part #: CCTTPL401632
UPC:

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 15 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: TP-Link
MPN: VIGI NVR4016H
Part #: CCTTPL401632
UPC:

Be the first to review this product

HDD Bays

Max Camera Resolution

8 MP

Max Cameras Supported

Video Recorder Type

NVR

View full specs

Returns & Warranty Bulk Quote Print Page

Features

VIGI 32 Channel Network Video Recorder

- 16-ch@2MP/ 8-ch@4MP Decoding Capacity†: Allows you to enjoy more channels, live view, and playback at the same time.

- 1 HDMI and 1 VGA Interface: Supports independent video output.

- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

- 320 Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions.

- Mass Storage: Supports 4× SATA, up to 10 TB each.

- 16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

- Dual Ethernet Ports Design: Supports three network modes, including muti-address mode, network fault-tolerance and load balance.

- Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.

- Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.

- Rack Mounting: Space-saving and easy installation.

- ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

Specifications

Video and Audio

IP Video Input

16-Channel

Incoming Bandwidth

320 Mbps

Outgoing Bandwidth

320 Mbps

HDMI Output Resolution

2 Channels
- HDMI1 Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
- HDMI2 Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

VGA Output Resolution

1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

Video Output Mode

- HDMI1/HDMI2 Independent output
- HDMI1/VGA Independent output

Note: HDMI2 and VGA cannot operate simultaneously. If both connections are made, HDMI2 will take precedence and function as the primary output.

Multi-View Display

1,4,6,8,9,16

DECODING

Audio Compression

G.711A/G.711U/G.726

Video Compression

H.265+/H.265/ H.264+/H.264

Record Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback

16-Channel†

Capability

- 25fps:
10-ch@3MP?16-ch@1080P
- 30fps:
4-ch@8MP?6-ch@5MP?8-ch@4MP

Record Management

Record Mode

- Manual Recording
- Scheduling Recording
- Motion Detection Recording

Playback Mode

- Instant Playback
- Regular Playback
- Tag Playback
- Event Playback

Backup Mode

- Regular Backup
- Video Clip Backup

Playback Function

- Play
- Pause
- Stop
- Fast Forward
- Fast Backward
- Play By Frame
- Full Screen
- Video Clip
- Export Clip
- Digital Zoom
- Lock Recording
- Audio On/Off

NETWORK

Protocol

UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP

Mobile Phone Access

Android, iOS

Web Browser

Chrome (57+), Firefox (52+), Edge (91+)

Interoperability

ONVIF Profile S, CGI

External Interface

Network Interface

2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface

USB Interface

2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port

Audio Interface

1-ch RCA Input; 1-ch RCA Output

Alarm In/Out

16/4

Serial Interface

1, RS232

Power

1× AC Jack

Reset Button

Speaker

N/A

eSATA

HDMI

VGA

HARD DISK

SATA

4 SATA Interfaces

Capacity

Up to 16 TB Capacity for Each HDD*

Alarm

General Alarm

- Motion Detection
- Video Tampering
- Scene Change Detection
- Line-Crossing Detection
- Intrusion Detection
- Region Entering Detection
- Region Exiting Detection
- Loitering Detection
- Object Abandoned/Removal Detection
- Vehicle Detection
- Human Detection
- Abnormal Sound Detection
- Smart Frame
Note: The alarm function requires the use of a camera.

Anomaly Alarm

- Video Loss
- Offline and IP Conflict
- Disk Exception
- Login Exception
- Fan Exception
Note: The alarm function requires the use of a camera.

Alarm Linkage

- Recording
- White Light Alarm
- Buzzer
- Log
- Audible Alarm
Note: The alarm function requires the use of a camera.

GENERAL

Storage Temperature

-40-70 °C

Storage Humidity

10%~90% RH Non-Condensing

Package Contents

- VIGI Network Video Recorder
- Mouse
- Installation Guide
- Power Cord
- HDD Power Cables
- HDD Data Cables
- Terminal Blocks
- Mounting Brackets
- Screws
- Rubber Feet

Working Temperature

NVR: -10-55 °C

Working Humidity

10%~90% RH Non-Condensing

Dimensions( W X D X H )

17.32 × 12.99 × 1.73 in (440 × 330 × 44 mm)

Net Weight

4.0 Kg#

Gross Weight

5.0 Kg#

Power Supply

100-240 VAC, 50 to 60Hz, 1.5A

Power Consumption

- 5.5 W (Without Disk)
- 45 W (With Disk)

Certifications

CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF

Manufacturer Part No:

VIGI NVR4016H

Brand:

TP-Link

Product Type:

Network Video Recorder

UPC

Product Family:

VIGI

Shipping Weight:

5.2 kg

PB Part No:

CCTTPL401632

Product Model:

NVR4016H

Warranty: 12 months *
