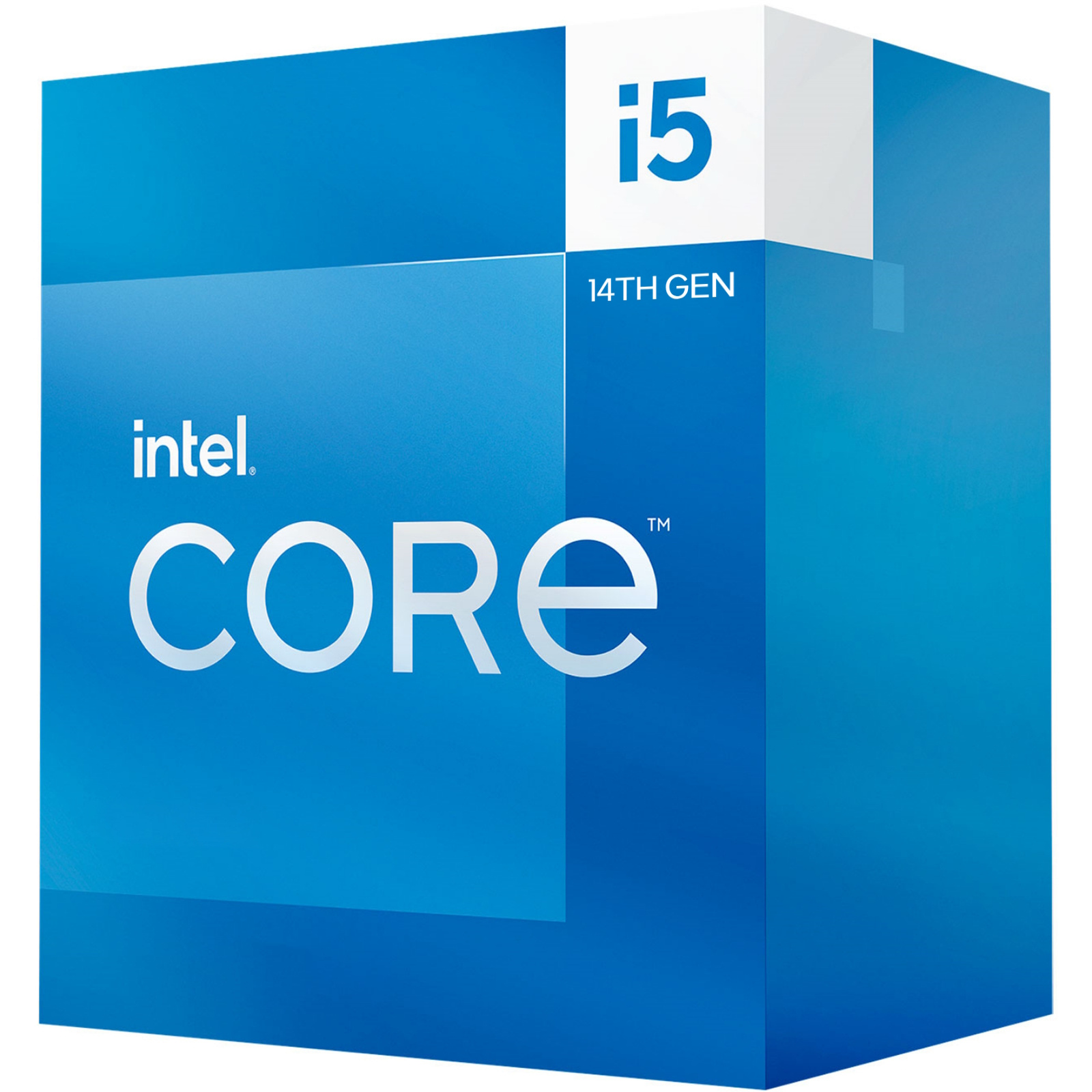

Intel Core i5 14400 CPU

Essentials

Product Collection

Intel® Core™ i5 Processors (14th gen)

Code Name

Products formerly Raptor Lake

Vertical Segment

Desktop

Processor Number

i5-14400

Lithography

Intel 7

Use Conditions

PC/Client/Tablet

CPU Specifications

Total Cores

10

# of Performance-cores

6

# of Efficient-cores

4

Total Threads

16

Max Turbo Frequency

4.7 GHz

Performance-core Max Turbo Frequency

4.7 GHz

Efficient-core Max Turbo Frequency

3.5 GHz

Performance-core Base Frequency

2.5 GHz

Efficient-core Base Frequency

1.8 GHz

Cache

20 MB Intel® Smart Cache

Total L2 Cache

9.5 MB

Processor Base Power

65 W

Maximum Turbo Power

148 W

Supplemental Information

Embedded Options Available

Yes

Memory Specifications

Max Memory Size (dependent on memory type)

192 GB

Memory Types

Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s

Max # of Memory Channels

2

Max Memory Bandwidth

76.8 GB/s

GPU Specifications

GPU Name

Intel® UHD Graphics 730

Graphics Max Dynamic Frequency

1.55 GHz

Graphics Output

eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units

24

Max Resolution (HDMI)

4096 x 2160 @ 60Hz

Max Resolution (DP)

7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)

5120 x 3200 @ 120Hz

DirectX* Support

12

OpenGL* Support

4.5

OpenCL* Support

3.0

Multi-Format Codec Engines

1

Intel® Quick Sync Video

Yes

Intel® Clear Video HD Technology

Yes

# of Displays Supported

4

Device ID

0x4682/0xA782

Expansion Options

Direct Media Interface (DMI) Revision

4.0

Max # of DMI Lanes

8

Scalability

1S Only

PCI Express Revision

5.0 and 4.0

PCI Express Configurations

Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes

20

Package Specifications

Sockets Supported

FCLGA1700

Max CPU Configuration

1

Thermal Solution Specification

PCG 2020C

TJUNCTION

100°C

Package Size

45.0 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator

3.0

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

Intel® Speed Shift Technology

Yes

Intel® Turbo Boost Technology

2.0

Intel® Hyper-Threading Technology

Yes

Intel® 64

Yes

Instruction Set

64-bit

Instruction Set Extensions

Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

Intel® Volume Management Device (VMD)

Yes

Security & Reliability

Intel® Standard Manageability (ISM)

Yes

Intel® Control-Flow Enforcement Technology

Yes

Intel® AES New Instructions

Yes

Secure Key

Yes

Intel® OS Guard

Yes

Execute Disable Bit

Yes

Intel® Boot Guard

Yes

Mode-based Execute Control (MBEC)

Yes

Intel® Virtualization Technology (VT-x)

Yes

Intel® Virtualization Technology for Directed I/O (VT-d)

Yes

Intel® VT-x with Extended Page Tables (EPT)

Yes
