StarTech.com SAT2510U3S USB 3 SATA Enclosure for SAT2510U3REM
- Brand: StarTech.com
- MPN: SAT2510U3S
- Part #: ENCSTT2367273
- UPC:065030849456
Product URL: https://www.pbtech.com/product/ENCSTT2367273/StarTechcom-SAT2510U3S-USB-3-SATA-Enclosure-for-SA
Features
Turn a 2.5in SATA HDD/SSD into an external USB 3.0 drive while also an additional or replacement removable enclosure for the SAT2510U3REM
- Spare 2.5" hard drive enclosure for SAT2510U3REM mobile rack
- SuperSpeed USB 3.0 compliant host interface with support for up to 5Gbps of bandwidth
- Flammability rating of UL 94 V-0
- Durable aluminum construction for the drive enclosure
- Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives
- Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD)

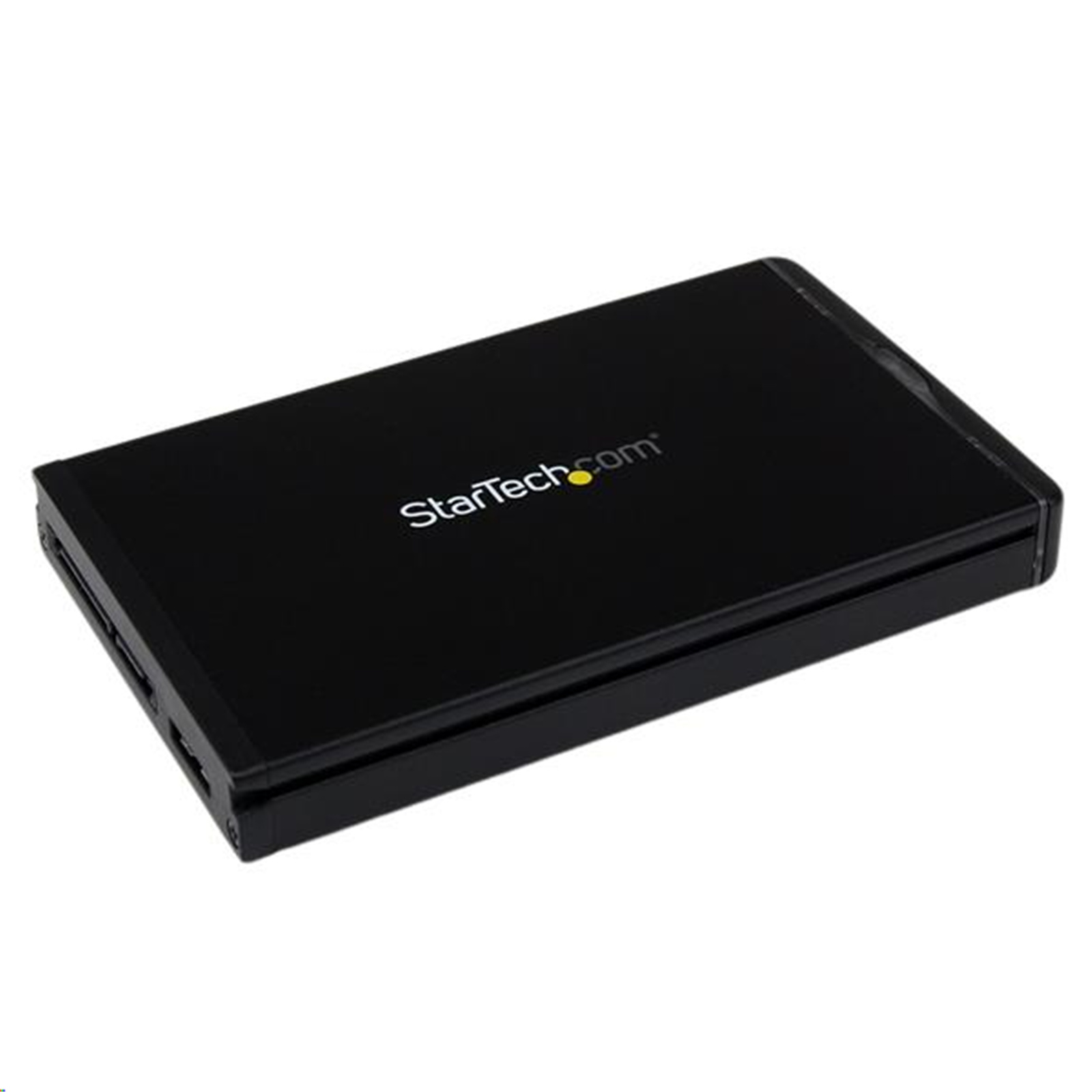

The SAT2510U3S 2.5in Hard Disk Drive Enclosure for SAT2510U3REM is a spare SATA drive enclosure for use with the SAT2510U3REM Removable Hard Drive Backup System/Mobile Rack, which simplifies removing/rotating drives, and is also backward compatible with the USB 2.0 model, SAT2510U2REM.
This 2.5" SATA enclosure allows for native SATA connectivity (SATA 6 Gbps compliant) while mounted inside the SAT2510U3REM backup system, but also provides SuperSpeed USB 3.0 connectivity (with up to 5 Gbps of data bandwidth) when used externally.
Applications
- Use multiple hard drives with the same SAT2510U3REM installation for archiving or rotating backups
- Professionals working with very large files who need to transport them between computers/locations
- Business professionals who need first hand access to their office data while travelling
The StarTech.com Advantage
- Provides spare enclosures for the SAT2510U3REM for swapping between multiple drives
- Connects externally through USB 3.0, with up to 5 Gbps of data bandwidth for fast access to stored data
- Keeps drives protected when outside of the SAT2510U3REM bay
Specifications
Connector(s)
Drive Connectors
1 - SATA Data & Power Combo (7+15 pin)
Host Connectors
1 - SATA Data & Power Combo (7+15 pin)
1 - USB 3.0 Micro-B (10 pin, SuperSpeed)
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
5% ~ 95% RH
Hardware
Interface
SATA
USB 3.2 Gen 1 (5Gbps)
Number of Drives
1
Drive Size
2.5in
Compatible Drive Types
SATA
Drive Installation
Fixed
Chipset ID
ASMedia - ASM1053
ASMedia - ASM1456
Indicators
LED Indicators
1 - Power/Activity (Green)
Packaging Information
Package Height
1.7 in [42 mm]
Package Length
7.4 in [18.8 cm]
Package Width
6.0 in [15.2 cm]
Package Quantity
1
Shipping (Package) Weight
0.6 lb [0.3 kg]
Performance
Type and Rate
USB 3.0 (5Gbps)
SATA III (6 Gbps)
MTBF
100,000 Hrs
Physical Characteristics
Color
Black
Material
Aluminum and Plastic
Max Drive Height
0.4 in [9.5 mm]
Product Length
5.2 in [13.3 cm]
Product Width
3.1 in [7.9 cm]
Product Height
0.6 in [1.6 cm]
Weight of Product
4.3 oz [122 g]
Software
OS Compatibility
OS independent; No software or drivers required

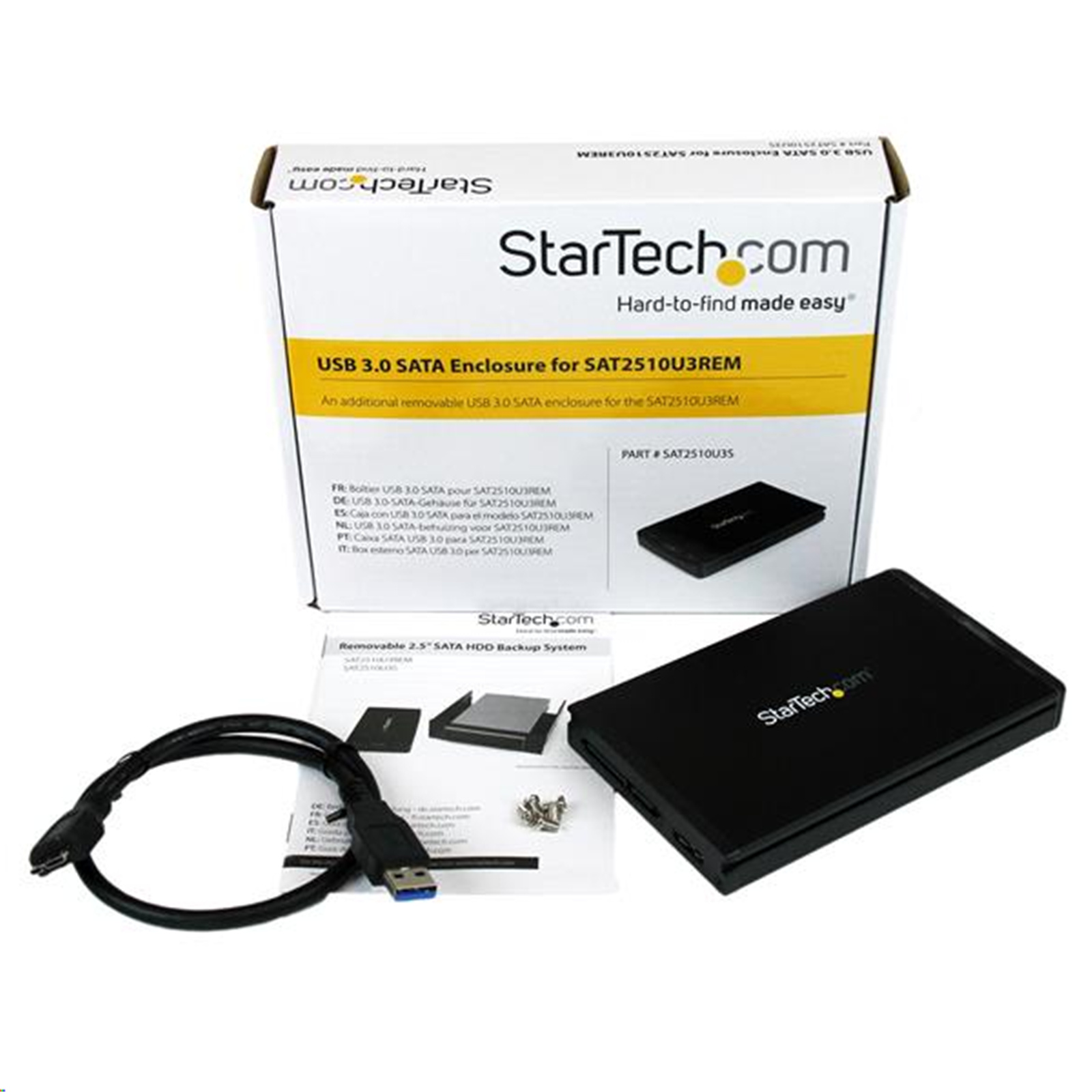

What's in the Box
Included in Package
1 - 2.5" SATA Enclosure for SAT2510U3REM
1 - USB 3.0 A to Micro-B Cable
1 - Screw Kit
