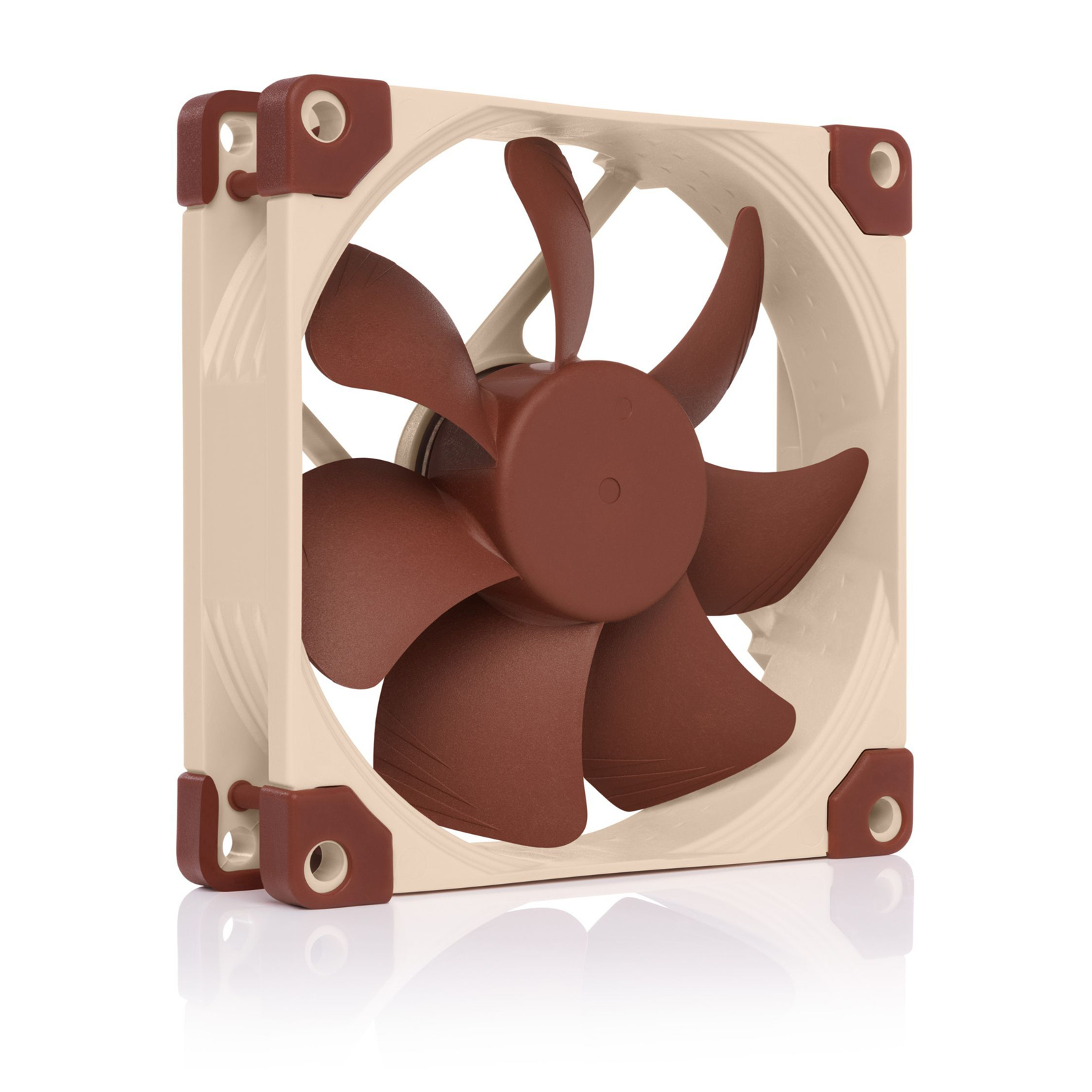

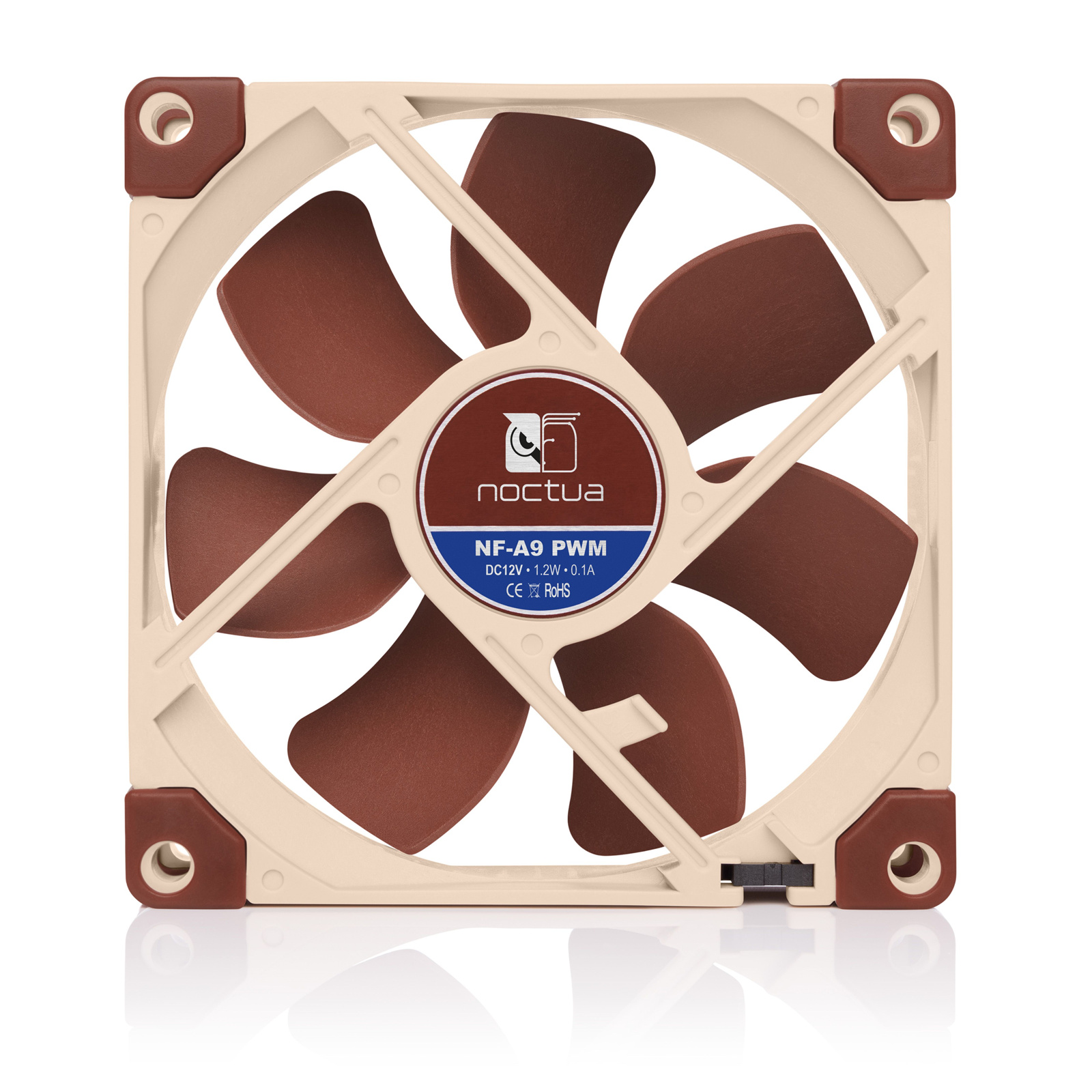

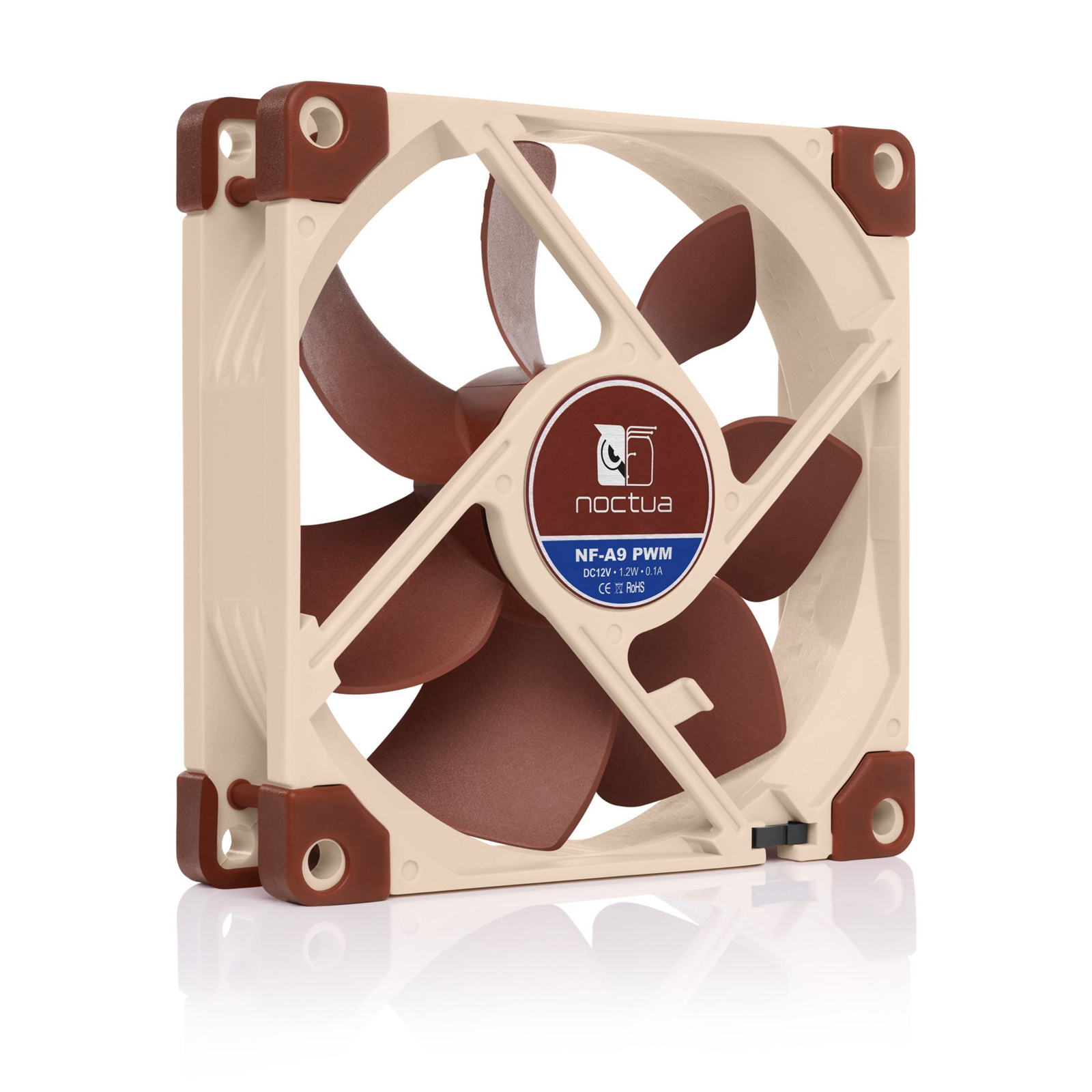

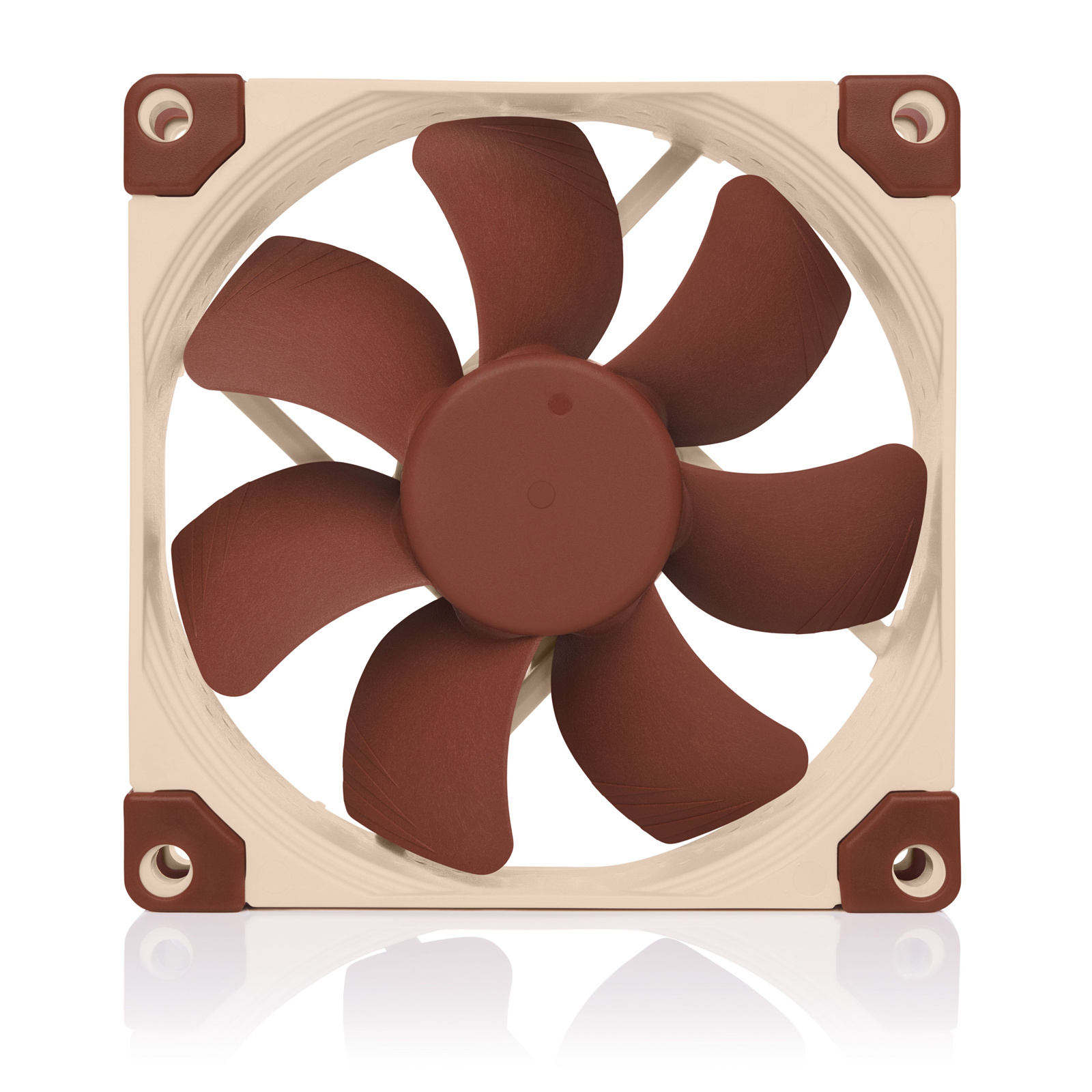

NOCTUA Noctua 92mm NF-A9 PWM Fan

Normally $27.82
Normally $27.82
You save 5%
You save 5%
AUD $ 26 .28
$ 26 .28
$26.28  +GST
$26.28  inc GST

NOCTUA Noctua 92mm NF-A9 PWM Fan

  • Brand: NOCTUA
  • MPN: NF-A9-PWM
  • Part #: FANNOC0900
  • UPC: 842431014481
2
Normally $27.82
Normally $27.82
You save 5%
You save 5%
PB Tech price
AUD $ 26 .28 $ 26 .28


Delivery: Order now and it ships on 23 May
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$26.28  +GST
$26.28  inc GST
  • Brand: NOCTUA
  • MPN: NF-A9-PWM
  • Part #: FANNOC0900
  • UPC: 842431014481

Fan Size

92mm

CPU Air Cooler Height

N/A

Number of Fans

1

LED Colour

N/A

Radiator Size

N/A

Bearing Type Variation

N/A

Sound Level (Roughly)

23dB

Similar in-stock products available at PB Tech right now

What PB Tech customers are saying about this product...

See More Reviews

"I purchased two of these fans to replace the factory cooling system in a Qnap NAS server. At minimum cooling power the sound of operating hard drives is now louder than the noise o ...view more"

B
By: BadgersuY 19/12/23
Verified Owner

"I purchased this item on the strength of previous Noctua products and I was not disappointed. The fan is in my Synology disk station quietly taking care of cooling. Highly recommen ...view more"

J
By: JohnE832 15/09/22
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the NOCTUA Noctua 92mm NF-A9 PWM Fan
NOCTUA Noctua 92mm NF-A9 PWM Fan
Total:
AUD $ 35 .11
AUD $ 35 .11
Buy together and save $0.25 $0.25
StarTech FAN4SPLIT12 12 4Pin PWM Fan Extension Power Y Cable
StarTech FAN4SPLIT12 12 4Pin PWM Fan Extension Power Y Cable

StarTech FAN4SPLIT12 12 4Pin PWM Fan Extension Power Y Cable

Click & Collect on 16 Apr
Ships on 10 Apr
AUD

$8.83

$8.83

You save 5% You save 5%

Features



The NF-A9 is a highly optimised, premium quality quiet 92mm fan. Featuring Noctua's AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A9 further improves the renowned quiet cooling performance of the award-winning NF-B9. The PWM version sports Noctua's custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 2000 to 1550rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctua's trusted premium quality make it an elite choice for the highest demands.

Succeeding the award-winning NF-B9

Noctua's NF-B9 fan has become a default-choice among PC enthusiasts looking for a premium quality quiet 92mm fan. Thanks to its thoroughgoing aerodynamic optimisations, the NF-A9 provides higher static pressure and an even better airflow/noise ratio than its much acclaimed predecessor.



Flow Acceleration Channels

The NF-A9 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.



AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.



Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.



Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.



Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.



SSO2 Bearing

The NF-A9 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.



Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-A9 PWM uses Noctua's novel, custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.



Stops at 0% PWM

When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.



Low-Noise Adaptor

The NF-A9 PWM is supplied with a (L.N.A.) that reduces the maximum fan speed from 2000 to 1550rpm. The L.N.A. can be used either to run the fan at a fixed speed of 1550rpm or to cap the maximum speed when using automatic PWM control.



Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second NF-A9 PWM fan to the same PWM fan header for automatic control.

Specifications

Size

92x92x25 mm

Mounting hole spacing

82,5x82,5 mm

Connector & pin-configuration

4-pin PWM

Cable length

20cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

A-Series with Flow Acceleration Channels

Frame technology

AAO (Advanced Acoustic Optimisation)

Rotational speed (+/- 10%)

2000 RPM

Rotational speed with L.N.A. (+/- 10%)

1550 RPM

Min. rotational speed (PWM, +/-20%)

400 RPM

Airflow

78,9 m³/h

Airflow with L.N.A.

62,6 m³/h

Acoustical noise

22,8 dB(A)

Acoustical noise with L.N.A.

16,3 dB(A)

Static pressure

2,28 mm H2O

Static pressure with L.N.A.

1,53 mm H2O

Max. input power

1,2 W

Max. input current

0,1 A

Operating voltage

12 V

MTTF

> 150.000 h

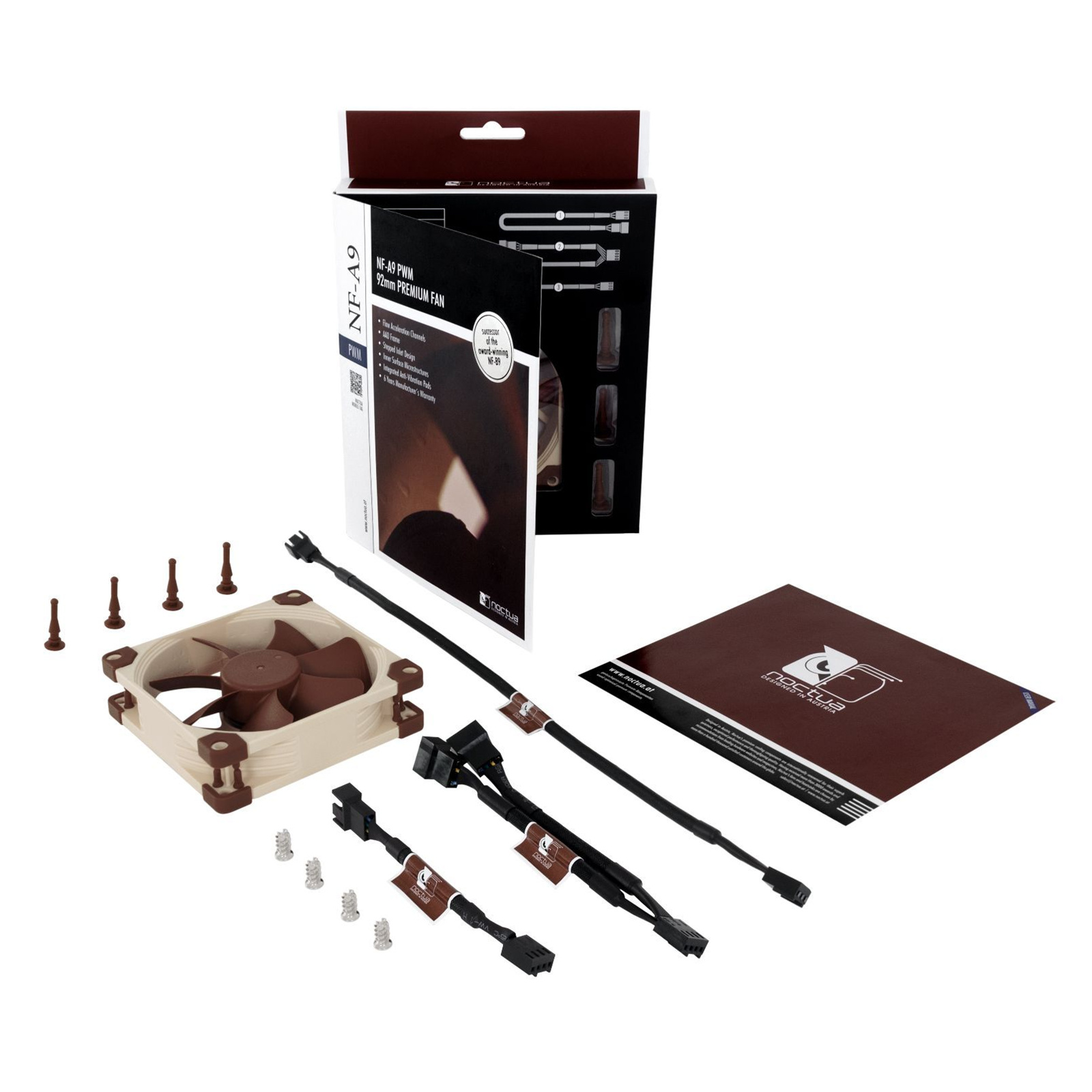

Scope of delivery

Low-Noise Adaptor (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws

Manufacturer Part No:
NF-A9-PWM
Brand:
Product Type:
-
UPC
842431014481
Product Family:
-
Shipping Weight:
0.25 kg
PB Part No:
FANNOC0900
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
