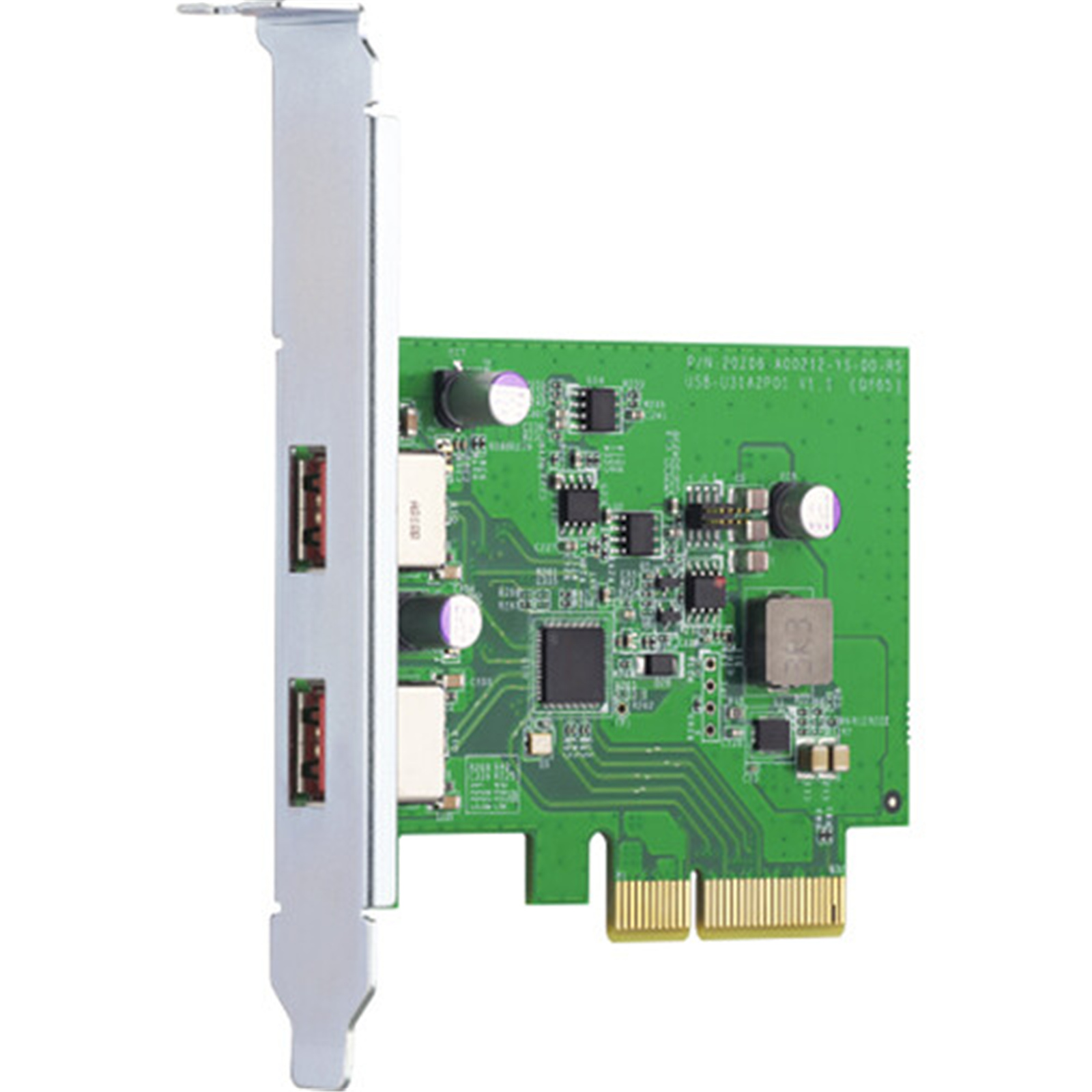

QNAP USB 3.2 Gen 2 dual-port PCIe expansion card 1 Years Warranty, Low Profile Bracket Included
- Brand: QNAP
- MPN: QXP-10G2U3A
- Part #: IDEQNP1206
- UPC:885022020133
Product URL: https://www.pbtech.com/product/IDEQNP1206/QNAP-USB-32-Gen-2-dual-port-PCIe-expansion-card-1
Features
Up to 10Gbps Speeds for Fast File Transfer and Storage Expansion
The QNAP USB 3.2 Gen 2 Expansion Card provides speeds of up to 10Gbps - double that of USB 3.2 Gen 1 - to greatly boost data transfer speeds. With two ports, the QNAP USB 3.2 Gen 2 Expansion Card provides compatibility with newer, faster USB 3.2 Gen 2 devices to accelerate file transfers and backup. The QNAP USB 3.2 Gen 2 Expansion Card can be installed in either a QNAP NAS or Windows®/Ubuntu® PC.
- Dual-port USB 3.2 Gen 2 Type-A connectivity. Both ports provide up to 10 Gbps data transfer speeds and are backwards compatible with previous-generation USB devices.
- Supports USB Attached SCSI Protocol (UASP) to provide convenient fast file sharing and intensive data transfer.
- Uses advanced low-power processes, following standard PCIe/USB bus Power Management to reduce power consumption.
- Supports overcurrent detection and short circuit protection.
- Supports Windows 8.x / 10 (32/64-bit) and Ubuntu desktop 20.04 LTS. No driver is required.
Experience USB 3.2 Gen 2 SuperSpeed+ up to 10Gbps
The QNAP USB 3.2 Gen 2 Expansion Card provides speeds of up to 10Gbps - double that of USB 3.2 Gen 1, and 20 times that of USB 2.0.

Expand your Storage by Connecting to a QNAP USB JBOD
By using a QNAP USB 3.2 Gen 2 Expansion Card in your QNAP NAS or PC, you can connect a QNAP USB JBOD to back up and expand your storage. The USB 3.2 Gen 2 Expansion Card supports both QNAP NAS and Windows®/Ubuntu® PCs without requiring drivers. You can configure RAID and monitor disk health using the QTS/QuTS hero Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP JBOD Manager utility on your computer.
NAS Expansion: Install the QNAP USB 3.2 Gen 2 Expansion Card and connect to a QNAP USB JBOD device, adding additional storage capacity with up to 10Gbps transmission speeds.

PC Expansion: Install the QNAP USB 3.2 Gen 2 Expansion Card and connect to a QNAP USB JBOD device to take advantage of a 10Gbps DAS solution.

Specifications
Brand
QNAP
MPN
QXP-10G2U3A
Connectors
2 x USB Type-A
USB Host controller
ASMedia ASM3142
PCIe and Lanes
PCIe Gen2 x 2
Bracket
Low-profile pre-installed. Low-profile and Full-height are included.
Form Factor
Low-profile 89.65 x 68.9 x 14 mm (Without bracket)
Working Temperature
0 ~ 40 ºC (32 ~ 104ºF)
Working Humidity
5 ~ 95% RH
Supported Operating System
QTS 4.3.6 (or later)
QuTS hero
Windows 8.x/10 (32/64-bit)
Ubuntu 20.04 LTS
Package Contents
1 x USB expansion card; 1 x QIG; 2 x Brackets
