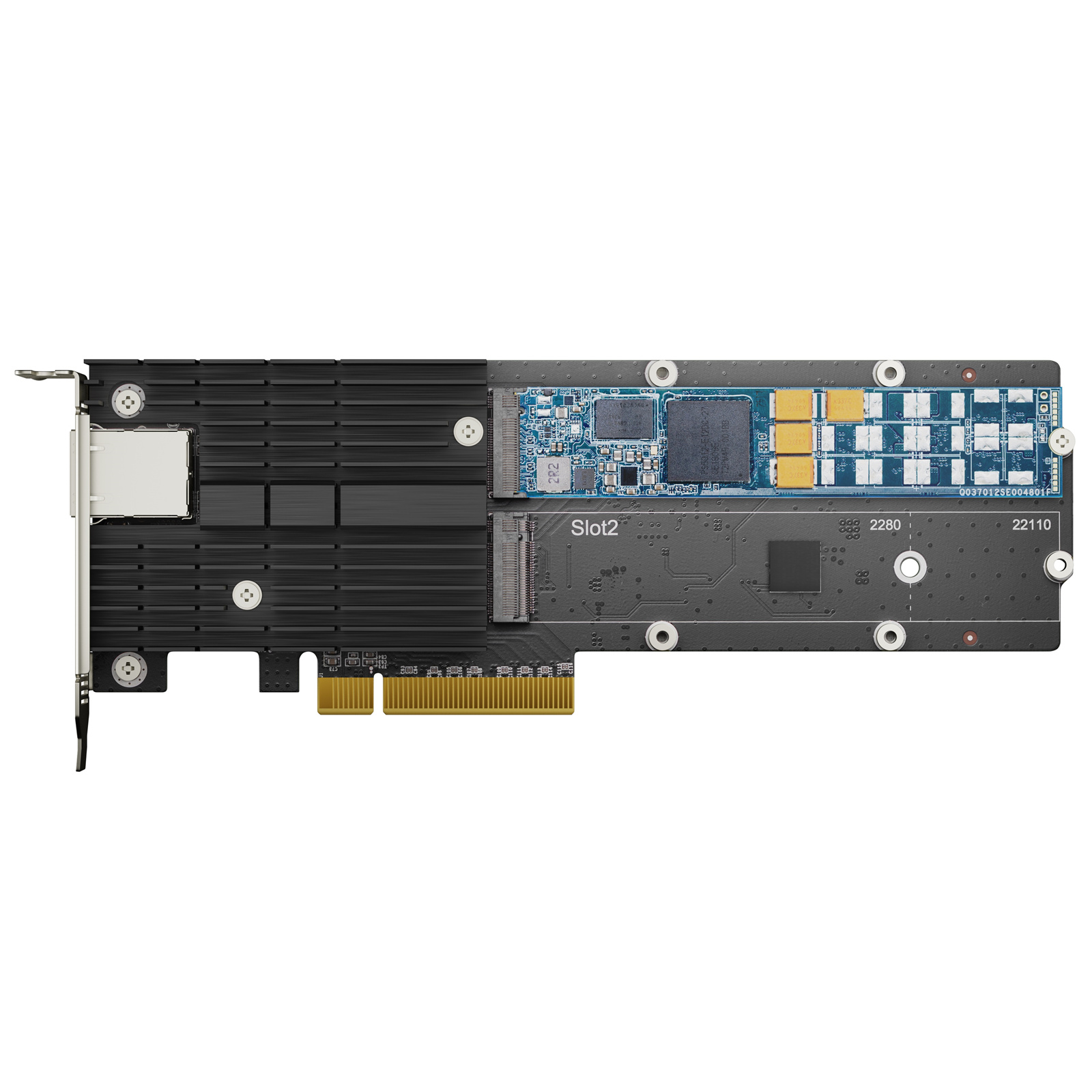

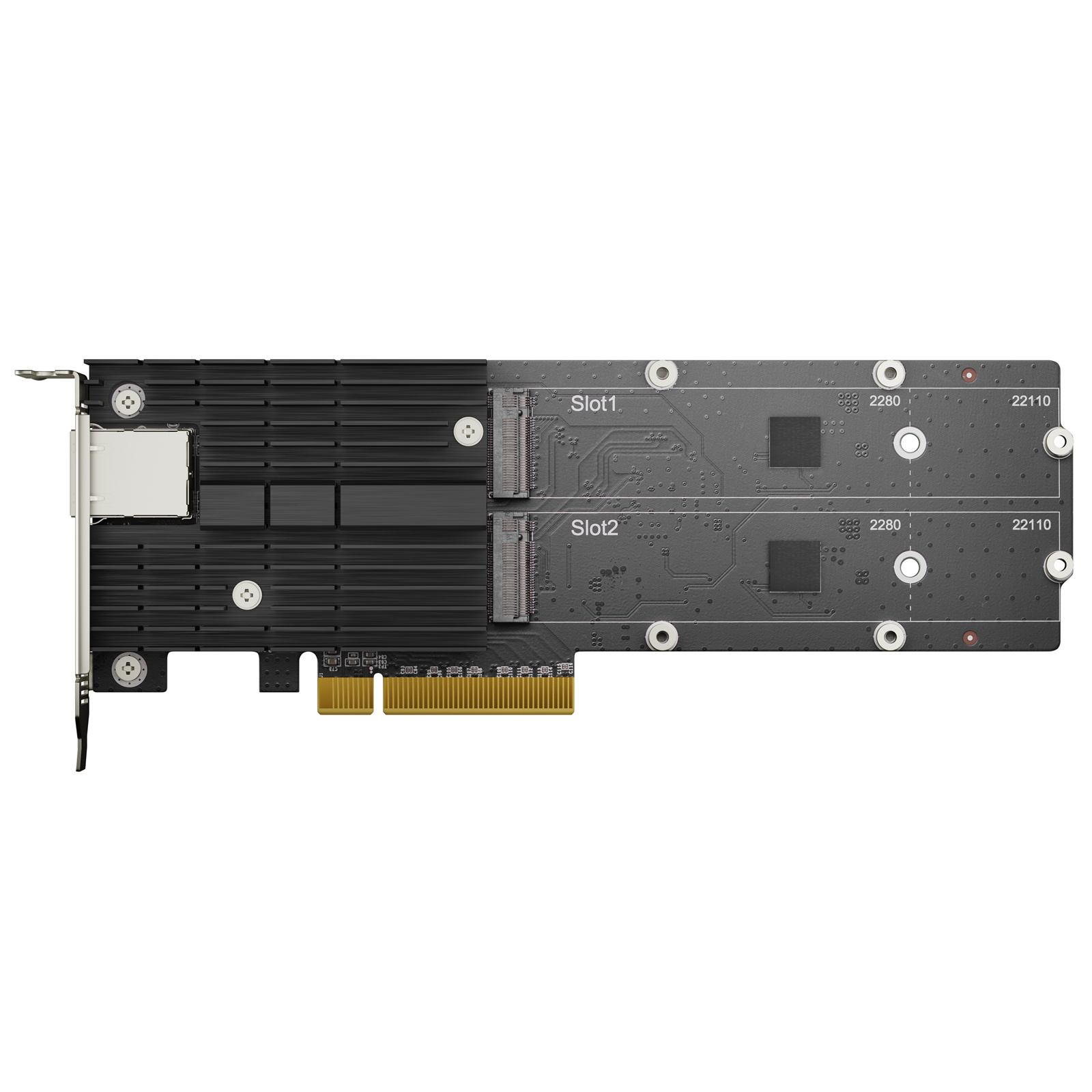

Synology E10M20-T1 M.2 SSD & 10GbE Combo Adapter, PCIe 3.0 x8, Single Port RJ-45 10GbE NIC, 2x M.2 slot only compatible with SNV3000 Series SSD

PB Tech price
PB Tech price
AUD $ 466 .75
$ 466 .75
$466.75  +GST
$466.75

Synology E10M20-T1 M.2 SSD & 10GbE Combo Adapter, PCIe 3.0 x8, Single Port RJ-45 10GbE NIC, 2x M.2 slot only compatible with SNV3000 Series SSD

  • Brand: Synology
  • MPN: E10M20-T1
  • Part #: IDESYN1020
  • UPC: 846504003488
PB Tech price
AUD $ 466 .75 $ 466 .75
In stock at Supplier
Delivery: Order now and it ships on 13 Oct
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$466.75  +GST
$466.75
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: Synology
  • MPN: E10M20-T1
  • Part #: IDESYN1020
  • UPC: 846504003488
Returns & Warranty Bulk Quote Print Page

Features

10GbE bandwidth and M.2 SSD cache, all at once

Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS..

10GbE ready - Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps.
NVMe enabled - Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots.
Dedicated cache slots - Free up primary drive bays for data storage.

A perfect match with Synology SNV3000 series NVMe SSD

Install Synology SNV3000 series NVMe SSD on the E10M20-T1 adapter card for fast and streamlined cache acceleration, and take full advantage of Synology SSD's enterprise-grade endurance, performance, and reliability with your Synology NAS.

Specifications

General

Host Bus Interface

PCIe 3.0 x8

Bracket Height

Low Profile and Full Height

Size (Height x Width x Depth)

71.75 mm x 200.05 mm x 17.70 mm

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Storage

Storage Interface

PCIe NVMe

Supported Form Factor

22110 / 2280

Connector Type and Quantity

M-key, 2 Slots

Network

IEEE Specification Compliance

IEEE 802.3an 10Gbps Ethernet
IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control

Data Transfer Rates

10 Gbps

Network Operation Mode

Full Duplex

Supported Features

9 KB Jumbo Frame
TCP/UDP/IP Checksum Offloading
Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s

Compatibility
Applied Models
 NVMe SSD
  • SA series:SA6400, SA3610, SA3600, SA3410, SA3400
  • 23 series:RS2423RP+, RS2423+
  • 22 series:RS822RP+, RS822+, DS3622xs+, DS2422+
  • 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+
  • 20 series:RS820RP+, RS820+
  • 19 series:DS2419+II, DS2419+, DS1819+
  • 18 series:RS3618xs, RS2818RP+, DS3018xs, DS1618+
  • 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xsII, DS3617xs
Notes
  • DSM version requirement: 6.2.3-25426 or later version
  • DSM version requirement for RS18017xs+, RS4017xs+, RS3618xs, RS3617xs+, RS3617RPxs, DS3617xs and DS3617xsII: 7.0.1 or later version

Manufacturer Part No:
E10M20-T1
Brand:
Synology
Product Type:
-
UPC
846504003488
Product Family:
-
Shipping Weight:
0.3 kg
PB Part No:
IDESYN1020
Product Model:
E10M20-T1
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
