ADLINK Express-SL-i7-6820EQ Express Type 6 module with 6th Intel Core i7-6820EQ processor at 2.8/3.5GHz with QM170 chipset

Normally $1,998.02
Normally $1,998.02
You save $361
You save $361
AUD $ 1,636 .99
$ 1,636 .99
$1,636.99  +GST
$1,636.99

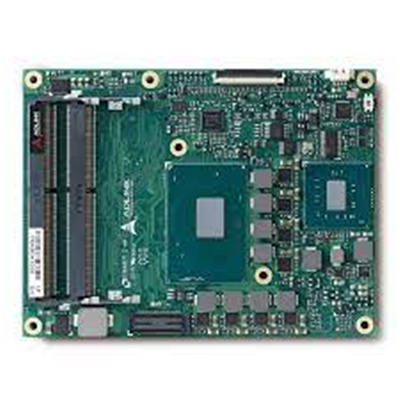

ADLINK Express-SL-i7-6820EQ Express Type 6 module with 6th Intel Core i7-6820EQ processor at 2.8/3.5GHz with QM170 chipset

  • Brand: ADLINK
  • MPN: 91-72128-0050
  • Part #: IPCADL00001
  • UPC:
Normally $1,998.02
Normally $1,998.02
You save $361
You save $361
PB Tech price
AUD $ 1,636 .99 $ 1,636 .99


Delivery: Order now and it ships on 28 Nov
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$1,636.99  +GST
$1,636.99

Features

The Express-SL/SLE is a COM Express® COM.0 R2.1 Basic Size Type 6 module supporting the 64-bit 6th Generation Intel® Core™ and Xeon® E3-and Celeron® processors (codename "Skylake-H") with IntelR QM170, HM170, CM236 Chipset.

The Express-SL/SLE is specifically designed for customers who need excellent graphics performance and high-level processing performance in a long product life solution. The Express-SL/SLE features Intel® Hyper-Threading Technology (up to 4 cores, 8 threads) and DDR4 dual-channel memory at 1866/2133 MHz with ECC/non-ECC support determined by CPU/chipset combination to provide excellent overall performance.

Intel® Flexible Display Interface and Direct Media Interface provide high speed connectivity from the CPU to the Intel® QM170, HM170, CM236 Chipset. Integrated Intel® Generation 9 Graphics includes features such as OpenGL 4.4/4.3/4.2, DirectX 11, IntelR Clear Video HD Technology, Advanced Scheduler 2.0, 1.0, XPDM support, and DirectX Video Acceleration (DXVA) support for full H.265/HEVC, MPEG2 hardware codec. Graphics outputs include LVDS and three DDI ports supporting HDMI/DVI/DisplayPort and eDP as a build option.

The Express-SL/SLE is specifically designed for customers with high-performance processing graphics requirements who want to outsource the custom core logic of their systems for reduced development time. The Express-SL/SLE has dual stacked SODIMM sockets supporting up to 32 GB of DDR4 ECC/non-ECC memory. In addition to the onboard integrated graphics, a multiplexed PCIe x16 graphics bus is available for discrete graphics expansion. Input/output features include a single onboard Gigabit Ethernet port, eight PCIe x1 Gen3 lanes, USB 3.0 ports and USB 2.0 ports, and SATA 6 Gb/s ports. Support is provided for SMBus and I2C. The module is equipped with SPI AMI EFI BIOS with CMOS backup, supporting embedded features such as remote console, hardware monitor, and watchdog timer.

Specifications

Specifications

6th Gen Intel® Core™, Xeon® and Celeron® Processor with Intel QM170/HM170/CM236 Chipset (codename: Skylake)
Up to 32GB dual channel ECC or non-ECC DDR4 at 2133 MHz
3x DDI channels, 1x LVDS (or 4 lanes eDP), supports up to 3 independent displays
8 PCIe x1 and 1 PCIe x16
GbE, 4x SATA 6 Gb/s, 4x USB 3.0 and 4x USB 2.0
Supports Smart Embedded Management Agent (SEMA) functions
Extreme Rugged operating temperature: -40°C to +85°C (build option for Core & Celeron 25W TDP SKUs)

Manufacturer Part No:
91-72128-0050
Brand:
Product Type:
Express Type 6 module
UPC
-
Product Family:
Express-SL-i7-6820EQ
Shipping Weight:
1 kg
PB Part No:
IPCADL00001
Product Model:
-
Warranty: 12 months *
