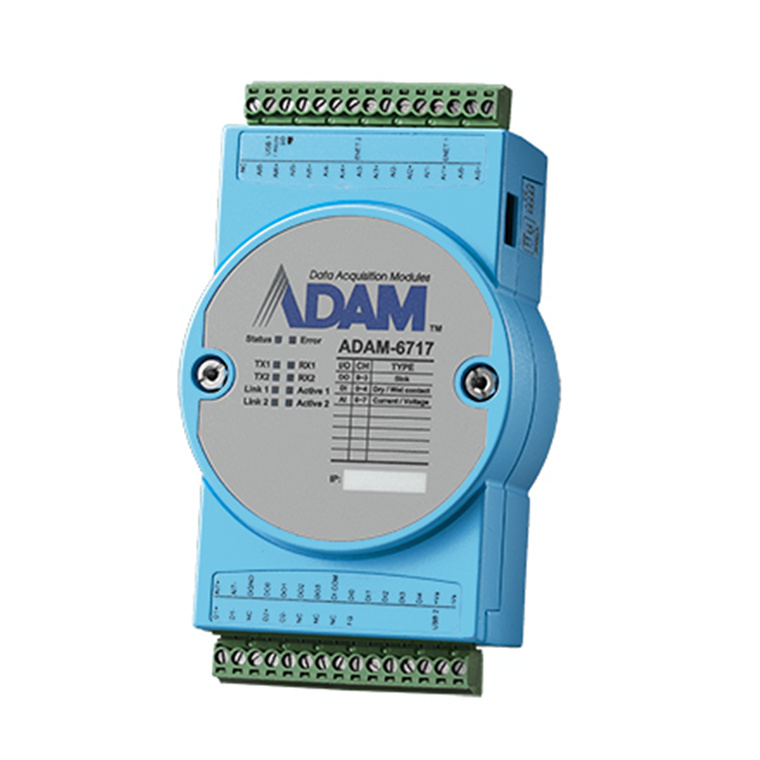

Advantech ADAM-6717-A 8AI/5DI/4DO Intelligent I/O Gateway

Normally $659.49

You save $26

AUD $ 632 .57

$ 632 .57

Advantech ADAM-6717-A 8AI/5DI/4DO Intelligent I/O Gateway

Brand: Advantech
MPN: ADAM-6717-A
Part #: IPCAVH010028
UPC:

Normally $659.49

You save $26

PB Tech price

AUD $ 632 .57

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: ADAM-6717-A
Part #: IPCAVH010028
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

ADAM-6700 is the edge compact intelligent gateway offers an integrated solution in the form of a Linux-based gateway capable of performing multiple tasks at the edge. Unlike many of its competitors, the ADAM-6700 is equipped with a range of I/O for comprehensive data acquisition functionality

- Linux Open Platform
- 8ch analog input(current or voltage)/5ch digital input/4ch digital output
- Program by linux C API, Node-RED (graphic programming environment)
- Cloud/Database access ,edge data analysis and logic control, data visulization by dashboard
- Interfaces: RS-485x2, Ethernet port x 2 ,1 x USB Type-A 2.0, 1 x USB Micro-B 2.0

Specifications

Channels

Input Range

±0.15 V ±0.5 V, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA, 0~0.15V, 0~0.5 V, 0~1 V, 0~5 V, 0~10 V

lnput Type

V, mV, mA

Resolution(Bits)

16-bit

Sampling Rates(S/s)

100 S/s (sum)

Isolation Voltage

2,500 VDC

Operating Temperature

-40~70 °C (-40~158 °F)

No. of Ports

Speed

10/100 Mbps

Connectors

1 x 9-pin plug-in screw terminal, 2 x 15-pin plug-in screw terminal

Programming Language

Node-RED, Liunx C

I/O

2 x RS-485, 1 x Micro USB, 1 x USB 2.0

OS Support

Linux

Storage

1 x micro SD Slot

Channels

Input Voltage

Dry Contact
Logic level 1: close to GND
Logic level 0: open
Wet Contact
Logic level 1: 10~30 VDC
Logic level 0: 0~3 VDC

Channels

Output Type

Sink

Output Voltage

0~30 VDC

Sink Current

100 mA max./channel

Input Voltage

10~30 VDC

Manufacturer Part No:

ADAM-6717-A

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH010028

Product Model:

ADAM-6717-A

Warranty: 12 months *
