Advantech AI Platform Based on NVIDIA Jetson MIC-711-OX4A1 Orin NX 16GB w/128GB SSD
- Brand: Advantech
- MPN: MIC-711-OX4A1
- Part #: IPCAVH080018
Product URL: https://www.pbtech.com/product/IPCAVH080018/Advantech-AI-Platform-Based-on-NVIDIA-Jetson-MIC-7
Features
AI Inference System Based on NVIDIA Jetson Orin NX
- Fanless and ultra-compact design
- Embedded with NVIDIA® Jetson Orin™ NX up to 100 TOPS
- Support 1 x GbE, 2 x USB3.2 Gen1 (5Gbit/s)
- Support 1 x mPCIe, 1 x M.2 3052, 1 x M.2 2280
- Supports Allxon 24/7 remote monitoring and OTA deployment
- Supports Super mode with Jetpack 6.2 and above
Specifications
NVIDIA® Jetson Orin™ NX
Processor System
CPU
16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3)
GPU
1024-core NVIDIA Ampere GPU with 32 Tensor Cores
Memory
16GB: 16GB LPDDR5
Flash
-

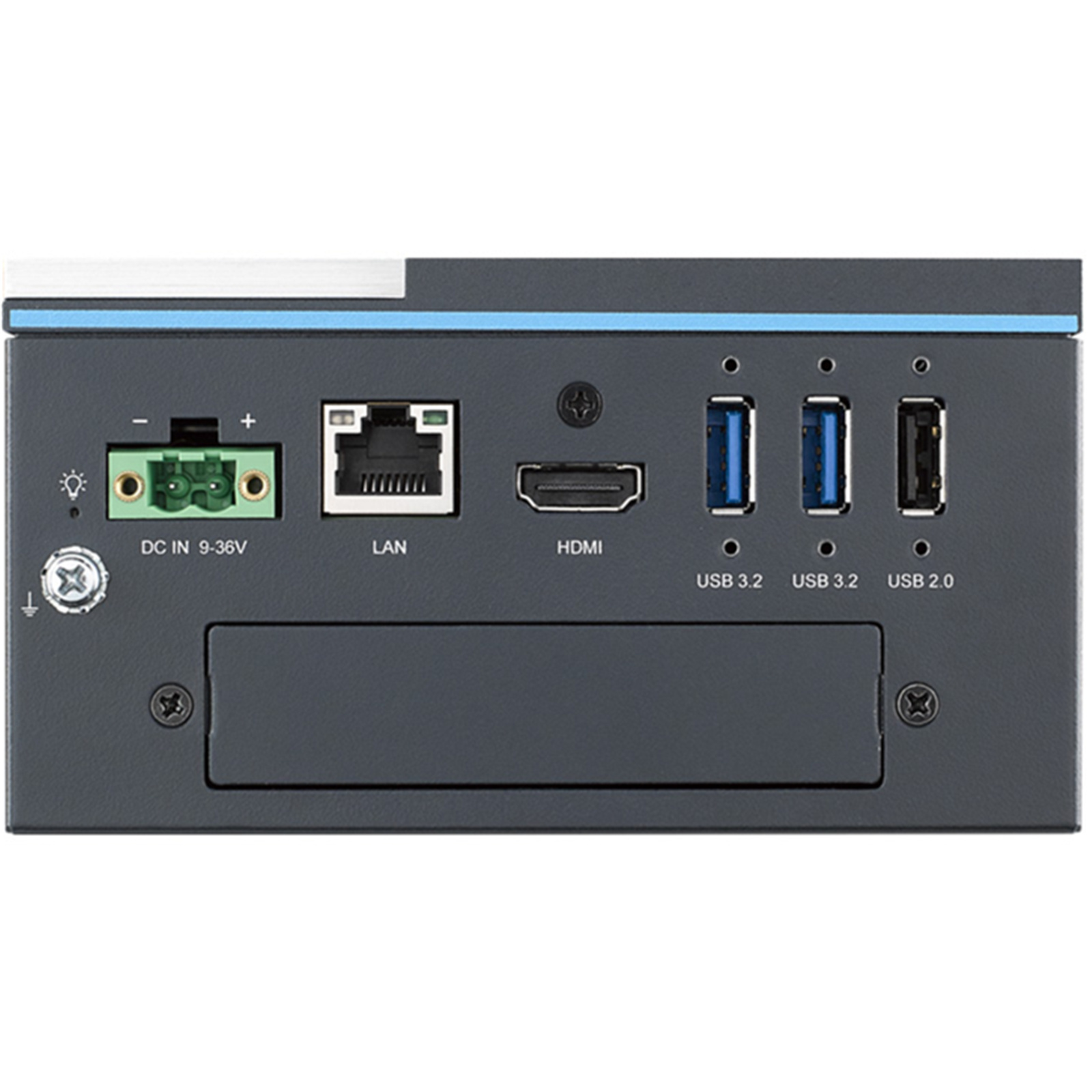

I/O
Ethernet
1 x 10/100/1000 Mbps
Display
HDMI (Max. resolution 3840x2160 @ 60Hz)
USB
External: 2 x USB 3.2 Gen 1, 1 x USB 2.0
Internal: 1 x USB 2.0 (by pin header)
OTG
USB 1 x Micro USB
Expansion
Mini PCIe
1 x mPCIe (Signal: PCIe + USB 2.0)
M.2
1 x M.2 3052 (B-Key, Signal: USB)
SIM
2 x Nano SIM slots
Storage
M.2
1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4)
SD Card
1 x Micro SD
Power
Mode
Terminal block, 2-pin, AT
Input Voltage
9 ~ 36 VDC
Environment
Operating Temperature*
-10 ~ 60 °C with 0.7 m/s air flow
Operating Humidity
95% @ 40 °C (non-condensing)
Vibration
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock
10G / 11ms
Mechanical
Dimensions (W x D x H)
130 x 130 x 46 mm (5.1" x 5.1" x 1.8")
Weight
1.2 kg (2.65 lb)
Installation
Desktop / Wall mount
BSP
Jetpack
Above 5.1
Certifications
Certifications
CB/UL/CE/FCC/BSMI/CCC (No RED certification)
