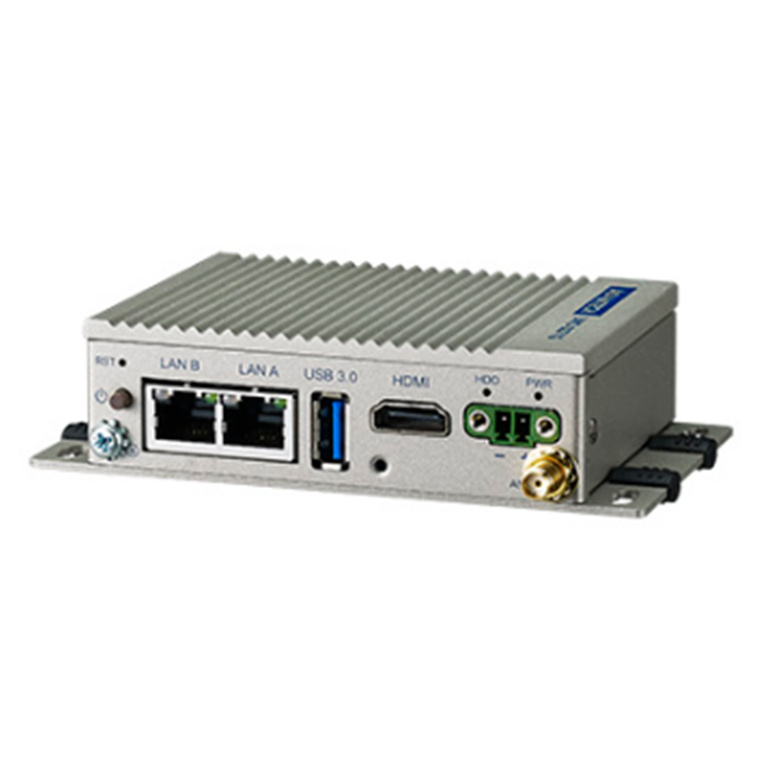

Advantech UNO-2271G-E21BE Pocket-Size Edge IoT Gateway with Intel Atom E3815 CPU

Normally $742.49

You save $30

AUD $ 712 .19

$ 712 .19

Advantech UNO-2271G-E21BE Pocket-Size Edge IoT Gateway with Intel Atom E3815 CPU

Brand: Advantech
MPN: UNO-2271G-E21BE
Part #: IPCAVH120003
UPC:

Normally $742.49

You save $30

PB Tech price

AUD $ 712 .19

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: UNO-2271G-E21BE
Part #: IPCAVH120003
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Intel® Atom™ E3815/E3825 processor with 4GB DDR3L onboard memory
2 x GbE, 1 x USB 3.0, 1 x HDMI, Option 2 x RS-232/422/485 or 3 x USB2.0
Compact Fanless Design and Rubber Stopper Design with internal reserved screws for 2nd layer assembly
Diverse system I/O and Isolated Digital I/O by iDoor Technology
Supports Fieldbus Protocol by iDoor Technology
3G/GPS/GPRS/Wi-Fi communication by iDoor technology
Supports 30+ iDoor combination with four main categories of smart factory applications
32GB eMMC storage onboard
RED Compliance for LTE solution

For more information: https://advdownload.advantech.com/productfile/PIS/UNO-2271G/file/UNO-2271G_DS(090920)20200909185121.pdf

Specifications

MPN

UNO-2271G-E21BE

Environment

Ingress Protection

IP30

Operating Temperature

0~50 °C (32~122 °F)

Relative Humidity

10~95% RH (non-condensing)

Shock Protection

50 G, half sine

Storage Temperature

-20~70 °C (-4~158 °F)

Vibration Protection

2 Grms, random

Hardware

Certification

CE, FCC, UL, CCC, BSMI

CPU

Intel® ATOM E3815 1.46GHz Single-Core

Graphics Engine

Intel® HD Graphics

Memory

1 x Onboard Memory with 4 GB DDR3L 1066 MHz

OS Support

Microsoft® Windows 10 2019 LTSC, WES7, Linux

Power Input

10~30 VDC

Storage

32 GB eMMC, 1 x mSATA (shared with mPCIe)

I/O Interface

Displays

1 x HDMI

Expansion

1 x Full-size mPCIe Slot

LAN Ports

2 x 10/100/1000 Mbps

Power Connector

1 x 2-Pin Terminal Block

USB Ports

1 x USB 3.0

Mechanical

Dimension (W x H x D)

100 x 70 x 30 mm

Enclosure

Aluminum housing

Weight (Net)

0.5 kg (1.1 lb)

Manufacturer Part No:

UNO-2271G-E21BE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH120003

Product Model:

UNO-2271G-E21BE

Warranty: 12 months *
