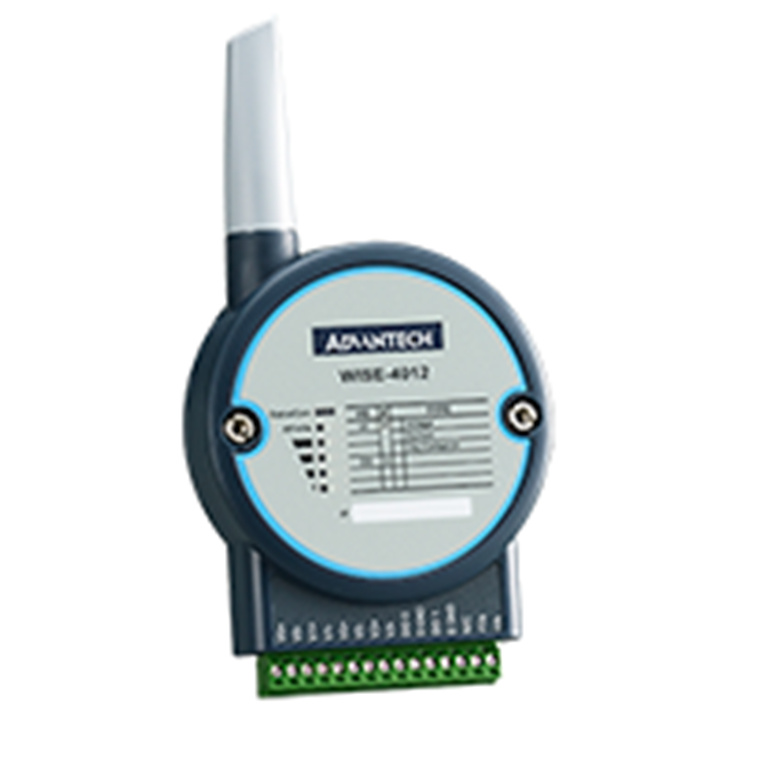

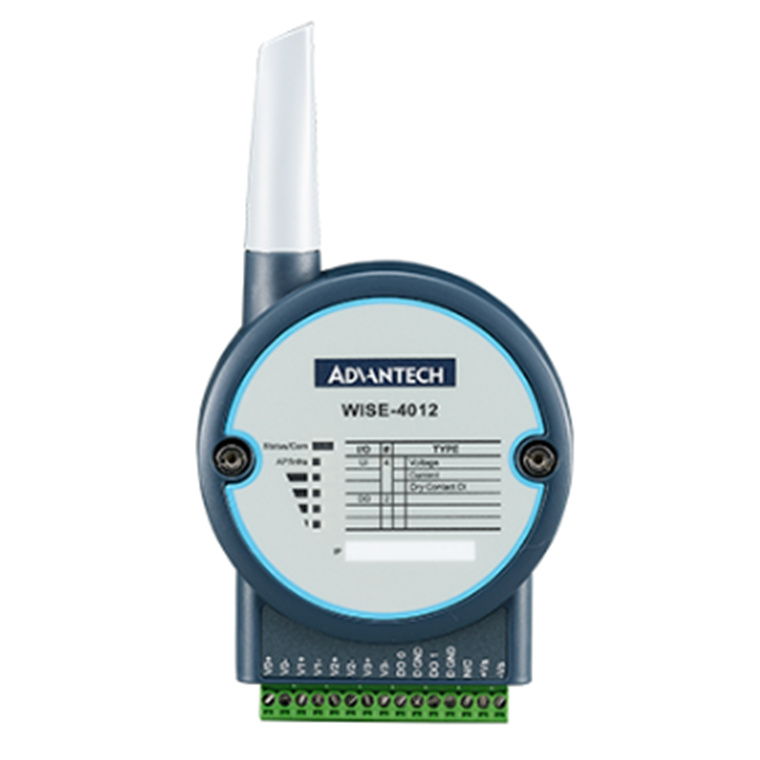

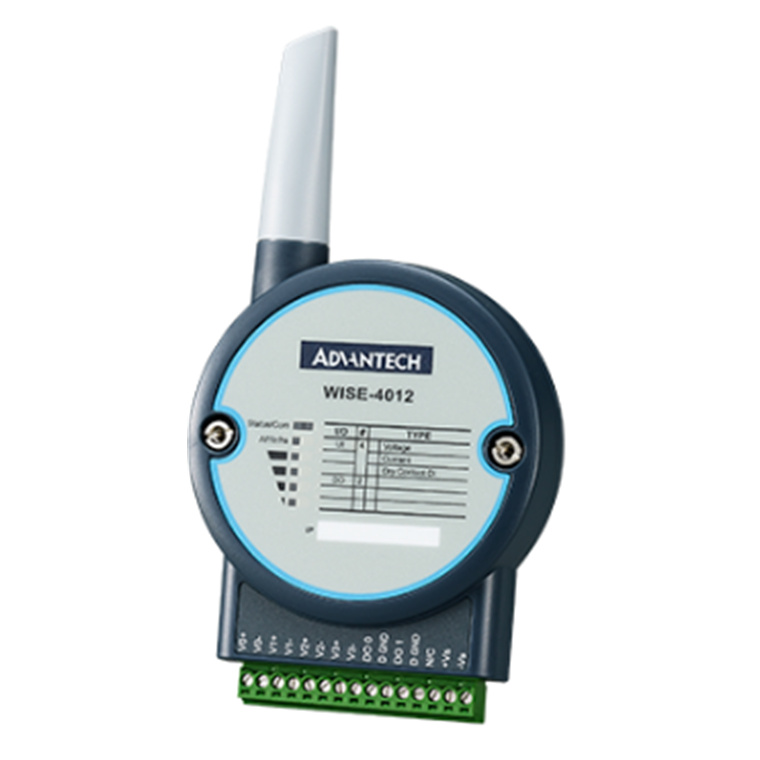

Advantech WISE-4012-AE 4AI/2DO 2.4G WiFi IoT Wireless I/O

Normally $279.72

You save $11

AUD $ 268 .30

$ 268 .30

Advantech WISE-4012-AE 4AI/2DO 2.4G WiFi IoT Wireless I/O

Brand: Advantech
MPN: WISE-4012-AE
Part #: IPCAVH140001
UPC:

Normally $279.72

You save $11

PB Tech price

AUD $ 268 .30

In stock at Supplier

Delivery: Order now and it ships on 14 Nov

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: WISE-4012-AE
Part #: IPCAVH140001
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- 2.4 GHz IEEE 802.11b/g/n WLAN
- Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
- Supports file-based cloud storage and local logging with RTC time stamp
- Supports RESTful web API in JSON format for IoT integration
- Configured by mobile devices directly without installing software or App

For more infomation: https://advdownload.advantech.com/productfile/PIS/WISE-4012/file/WISE-4012_DS(062724)20240628104734.pdf

Specifications

MPN

WISE-4012-AE

Analog Input

Burn-out Detection

Yes

Channels

Input Range

±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, 0~150 mV, 0~500 mV, 0~1 V, 0~5 V, 0~10 V, 0~20 mA, 4~20 mA, ±20 mA

Isolation Protection

4,200 VDC

lnput Type

V, A, Dry contact DI

Resolution(Bits)

16-bit

Sampling Rates(S/s)

10/100 Hz (sum)

General

Connectors

1 x Plug-in screw terminal

Humidity (Operating)

20~95% RH (non-condensing)

General Humidity (Storage)

0~95% RH (non-condensing)

Protocol

Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT

Hardware

Certification

CE, FCC Class A, R&TTE, NCC, SRRC, RoHS, KC

LED Indicators

Status, Communication (TX/RX), AP/Infra, Signal Strength

Power Consumption

2.5 W @ 24 VDC

Power Input

10~30 VDC

Watchdog Timer

1.6 s

Digital Input

Channels

4 (TTL)

Input Voltage

Dry Contact
Logic level 0: open
Logic level 1: close to Iso.GND

Isolation Protection

4,200 VDC

Digital Output

Channels

2 (TTL)

Isolation Protection

4,200 VDC

Environment

Operating Temperature

-25~70 °C (-13~158 °F)

Relative Humidity

20~95% RH (non-condensing)

Storage Humidity

0~95% RH (non-condensing)

Storage Temperature

-40~85 °C (-40~185 °F)

Power Requirements

Input Voltage

10~30 VDC

Mechanical

Dimension (W x H x D)

80 x 148 x 25 mm

Enclosure

Mounting

DIN-rail, Wall, Stack

Weight (Net)

0.15 kg

Wireless Communication

Frequency Band

IEEE 802.11 b/g/n 2.4 (GHz)

Standard(Technology)

WIFI

Manufacturer Part No:

WISE-4012-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH140001

Product Model:

WISE-4012-AE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
