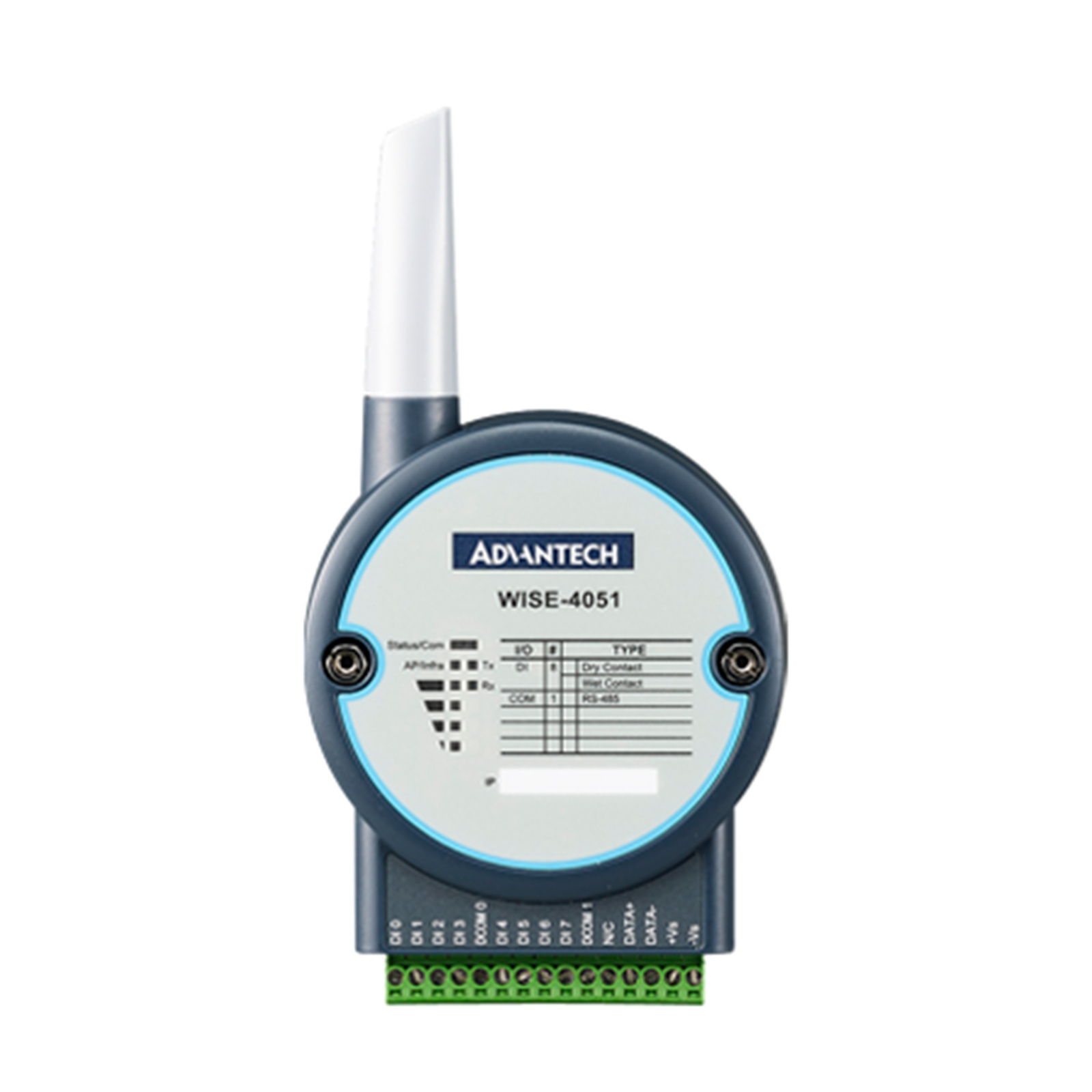

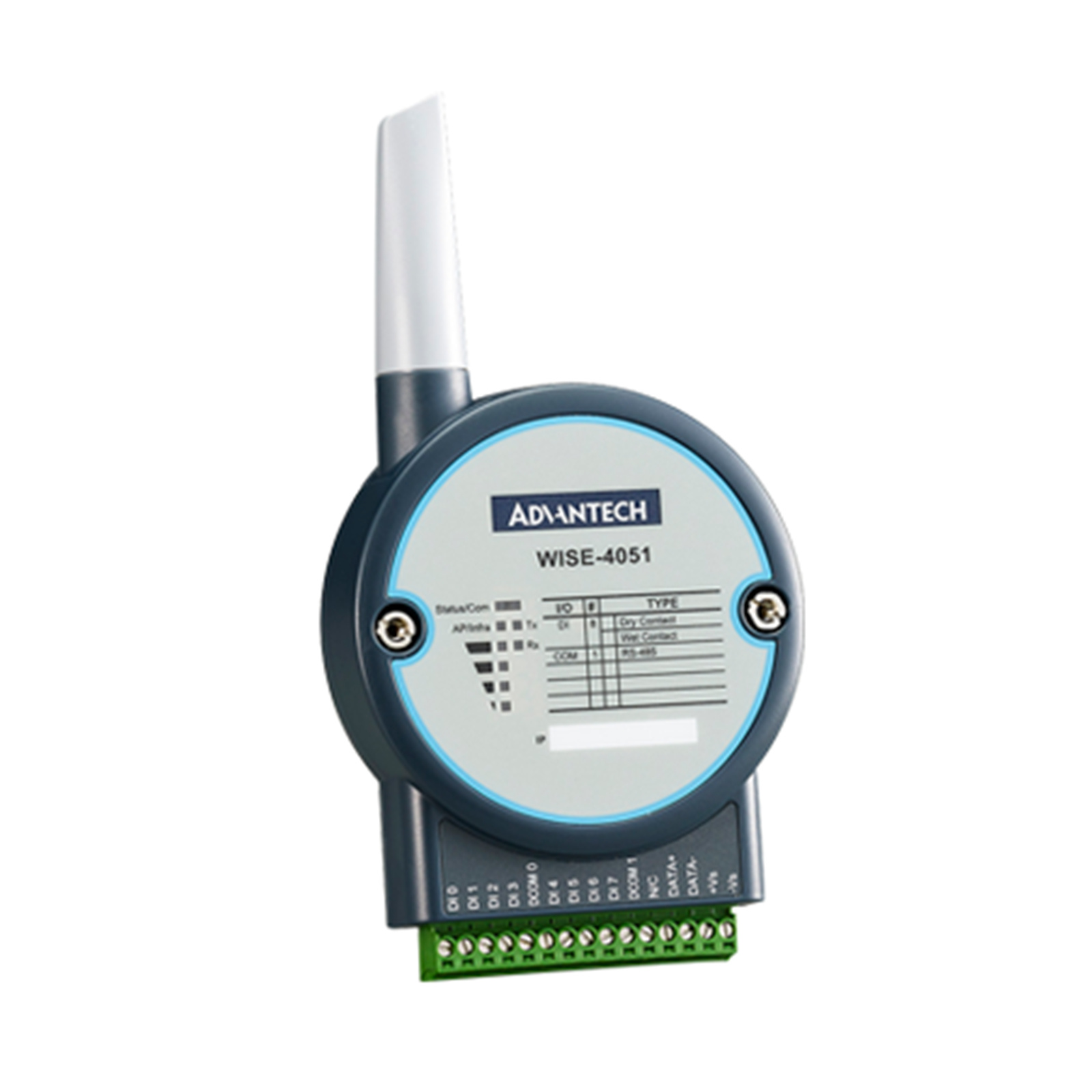

Advantech WISE-4051-AE 8CH DI + RS485 IOT WLAN
- Brand: Advantech
- MPN: WISE-4051-AE
- Part #: IPCAVH140005

Product URL: https://www.pbtech.com/product/IPCAVH140005/Advantech-WISE-4051-AE-8CH-DI--RS485-IOT-WLAN
Features
- Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
- Supports file-based cloud storage and local logging with RTC time stamp
- Supports RESTful web API in JSON format for IoT integration
- Configured by mobile devices directly without installing any software or App
Specifications
Digital Input
Channels
8 (TTL)
Input Voltage
Dry Contact
Logic level 0: Open
Logic level 1: Close to DI COM
Wet Contact
Logic level 0: 0~3 VDC
Logic level 1: 10~30 VDCDry Contact
Isolation Protection
4,200 VDC
Environment
Operating Temperature
-25~70 °C (-13~158 °F)
Relative Humidity
20~95% RH (non-condensing)
Storage Humidity
0~95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
General
Connectors
1 x Plug-in screw terminal
Protocol
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT
Hardware
Certification
CE, FCC Class A, R&TTE, NCC, SRRC, RoHSCE, FCC Class A, R&TTE, NCC, SRRC, RoHS
LED Indicators
Status, Com, AP/Station, Signal Strength
Power Consumption
2.2 W@24VDC
Power Input
10~30 VDC
Watchdog Timer
1.6 s
I/O Interface
Serial Ports
1 x RS-485
Mechanical
Dimension (W x H x D)
80 x 148 x 25 mm
Enclosure
PC
Mounting
DIN-rail, Wall, Stack
Weight (Net)
0.15 kg
Power Requirements
Input Voltage
10~30 VDC
Serial Communication
Baud Rate (bps)
1200 bps~115.2 kbps
Data Bits
7, 8
Data Signals
RS-485: DATA+, DATA-
Parity
None, Even, Odd
Stop Bits
1, 2
Wireless Communication
Frequency Band
IEEE 802.11 b/g/n 2.4 (GHz)
Standard(Technology)
WIFI
