Advantech ADAM-6541/ST-AE Media Converter, 100Mbps, Multimode 1310nm, 2km, ST

Normally $286.01

AUD $ 277 .44

$ 277 .44

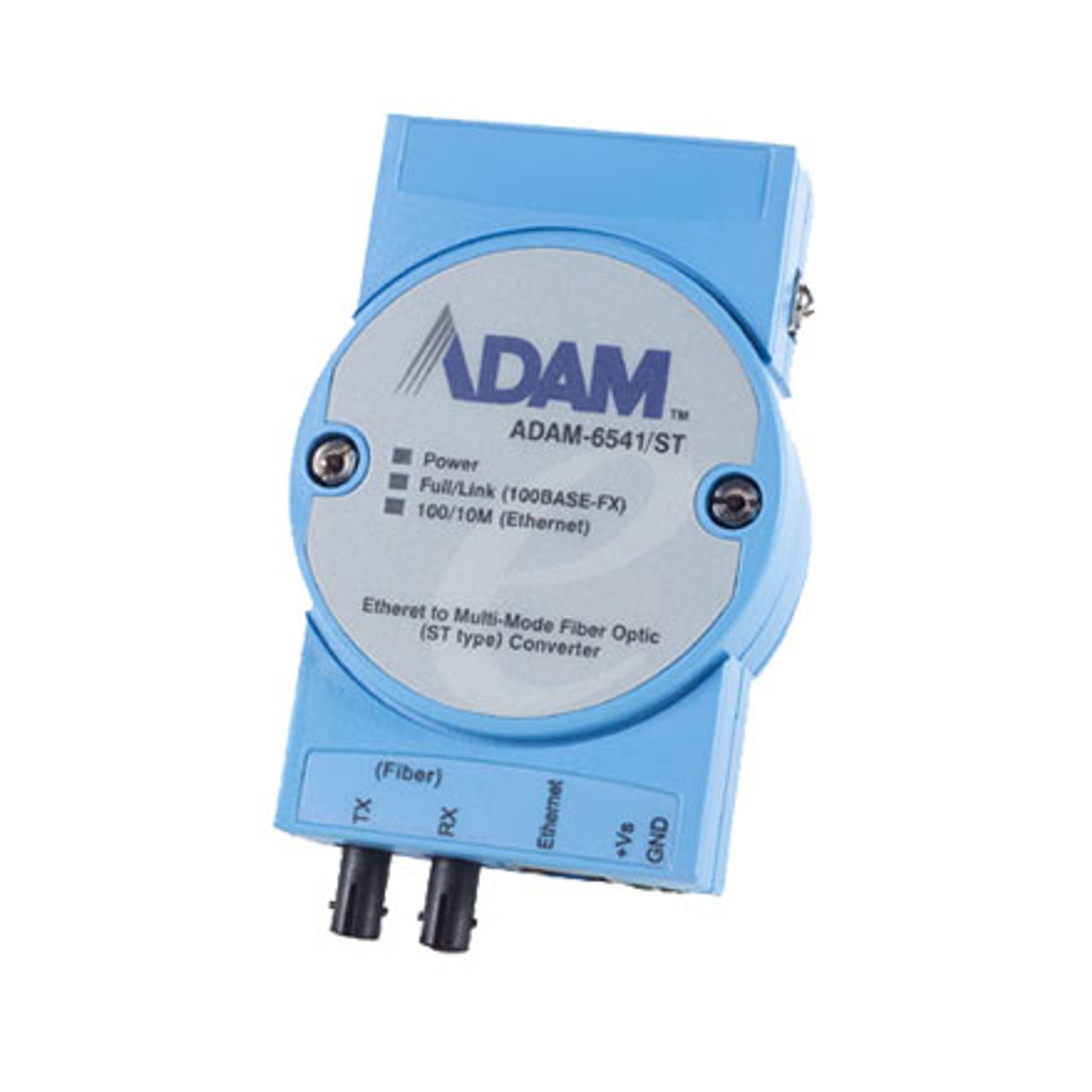

Advantech ADAM-6541/ST-AE Media Converter, 100Mbps, Multimode 1310nm, 2km, ST

Brand: Advantech
MPN: ADAM-6541/ST-AE
Part #: IPCAVH220175
UPC:

Normally $286.01

PB Tech price

AUD $ 277 .44

In stock at Supplier

Delivery: Order now and it ships on 10 Oct

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: ADAM-6541/ST-AE
Part #: IPCAVH220175
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Media Converter, 100Mbps, Multimode 1310nm, 2km, ST

ADAM-6541 is designed to convert Ethernet networks to fiber networks. It does so by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide
bandwidth, EMI immunity and long-distance transmission capability. Therefore, ADAM-6541 is an ideal solution for "fiber to building" applications at central offices or local sites. ADAM-6541 supports MDI/MDIX auto detection, so you don't need to use crossover wires. It also includes a switch controller that can sense the transmission speed (10/100 Mbps automatically.Both the Ethernet port and the fiber port have memory buffers that support store-and-forward mechanisms. This assures data can be transmitted properly. ADAM-6541 is extremely compact and can be mounted in three different ways: DIN-rail, Wall and Stack. ADAM-6541 can work normally from 0 ~ 60°C and accepts a wide voltage range from +10 ~ 30 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.

- Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
- Provides 1 x 100 Mbps Multi-mode fiber optic port
- Supports full/half duplex flow control and internal jumper for setting
- Supports store and forward transmission
- Supports auto-negotiation
- Supports MDI/MDI-X auto crossover
- Provides surge protection (EFT) 3,000 VDC for power line
- Provides 4,000 VDC Ethernet ESD protection
- Supports +10 ~ 30 VDC power input
- Provides flexible mounting : DIN-rail, Panel Mounting, Piggy-back
- Supports operating temperature from 0 ~ 60°C

Specifications

Communications

?Standard

IEEE 802.3, 802.3u, 802.3x

LAN

10/100Base-TX, 100Base-FX

Transmission Distance

Ethernet : Up to 100 m
Fiber: Multi-mode : Up to 2 km
Single-mode : Up to 20 km

Transmission Speed

Up to 100 Mbps

Interface

?Connectors

1 x RJ-45
1 x SC type fiber connector (ADAM-6541) or 1 x ST
type fiber connector (ADAM-6541/ST)
2-pin removable screw terminal (power)

LED Indicators

ADAM-6541, ADAM-6541/ST : Power, Full/Link
(100BASE-FX), 100/10M (Ethernet)

Power

?Power Consumption

ADAM-6541, ADAM-6541/ST : Max. 3W

Power Input

1 x Unregulated 10 ~ 30 VDC

Mechanism

?Dimensions (W x H x D)

70 x 112 x 27 mm

Enclosure

IP30, ABS+PC with solid mounting kits

Mounting

DIN 35 rail, Wall, Stack

Protection

ESD (Ethernet)

4,000 VDC

Isolation (Ethernet)

1,500 Vrms

Surge (EFT for power)

3,000 VDC

Environment

?Operating Temperature

0 ~ 60°C (32 ~ 140°F)
Stack: 0 ~ 55°C (32 ~ 131°F)

Storage Temperature

- 10 ~ 70°C (-14 ~ 158°F)

Operating Humidity

20 ~ 95% (non-condensing)

Storage Humidity

0 ~ 95% (non-condensing)?

MTBF

550,000 hrs

Certification

Safety

UL 60950-1, CAN/CSA-C22.2 No.60950

EMC

U.S.A.: FCC Part 15 CISPR 22
EU: EN55011, EN61000-6-4
EN55022 Class A,
EN61000-3-2/3
EN55024,
IEC61000-4-2/3/4/5/6/8/11
EN61000-6-2

Manufacturer Part No:

ADAM-6541/ST-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220175

Product Model:

ADAM-6541/ST-AE

Warranty: 12 months *
