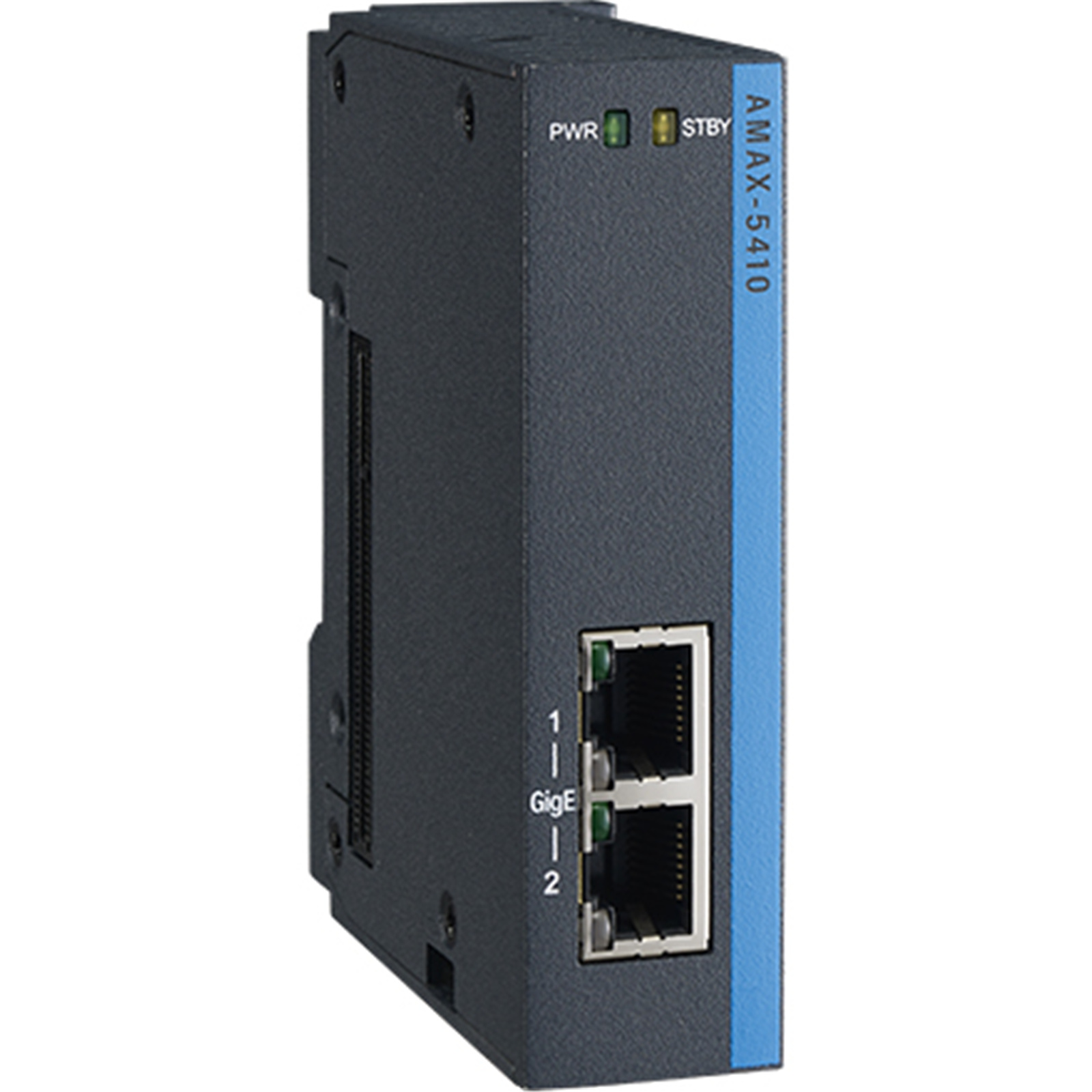

Advantech AMAX-5410-A 2-port GigE Vision Frame Grabber Module
Advantech AMAX-5410-A 2-port GigE Vision Frame Grabber Module
- Brand: Advantech
- MPN: AMAX-5410-A
- Part #: IPCAVH220191
- UPC:
- Brand: Advantech
- MPN: AMAX-5410-A
- Part #: IPCAVH220191
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech AMAX-5410-A 2-port GigE Vision Frame Grabber Module
- Brand: Advantech
- MPN: AMAX-5410-A
- Part #: IPCAVH220191

Product URL: https://www.pbtech.com/product/IPCAVH220191/Advantech-AMAX-5410-A-2-port-GigE-Vision-Frame-Gra
Features
2-port GigE Vision Frame Grabber Module
- Compatibility: IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af
- Speed: 10/100/1000 Mbps
- No. of Ports: 2 Gigabit Ethernet Media Access Control (MAC) andphysical layer (PHY) ports
- Input Voltage: 24 VDC direct from WISE-5000 CPU module
Specifications
Environment
Isolation Voltage
2,500 VDC
Operating Temperature
-10~60 °C (14~140 °F)
Relative Humidity
5~95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Ethernet
Compatibility
IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af
Input Voltage
24 VDC direct from AMAX-5580 controller
No. of Ports
2
Speed
10/100/1,000 Mbps
General
Bus Interface
1 x PCIe x1
Hardware
Certification
CE, FCC class A
LED Indicators
PWR, Standby
Power Consumption
2.5 W @ 24 VDC
Mechanical
Enclosure
Aluminum housing
Mounting
DIN-rail
Weight (Net)
195 g
