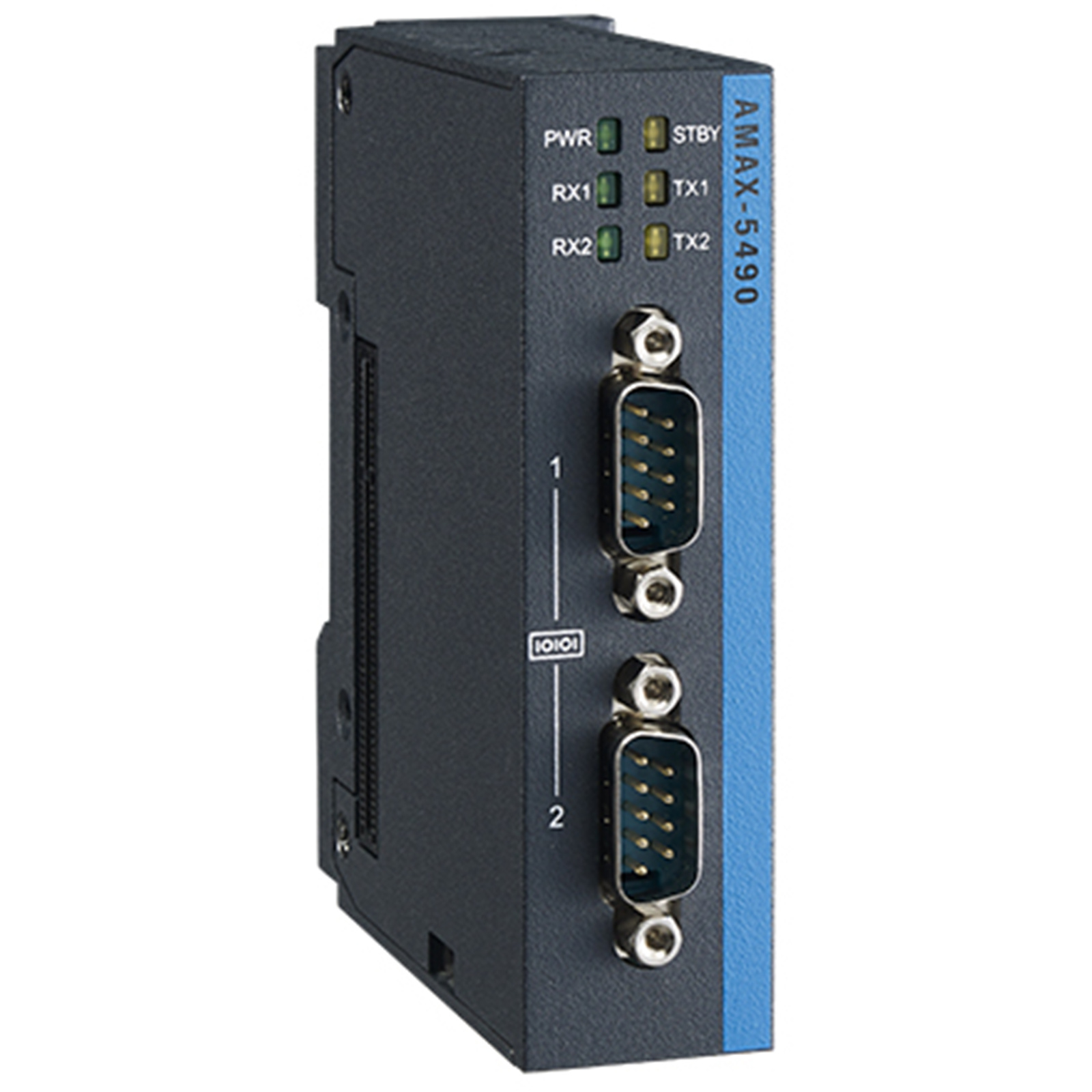

Advantech AMAX-5490-A 2-port Isolated RS-232/422/485 Communication Module
- Brand: Advantech
- MPN: AMAX-5490-A
- Part #: IPCAVH220194

Product URL: https://www.pbtech.com/product/IPCAVH220194/Advantech-AMAX-5490-A-2-port-Isolated-RS-232422485
Features
2-port Isolated RS-232/422/485 Communication Module
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, even, odd
- Baud Rate: 50 bps ~ 230.4 kbps
- Data Signals: RS-232: TxD, RxD, GND RS-422: Tx+, Tx-, Rx+, RXRS-485: Data+, Data-
- FIFO: 256 bytes
- Flow Control: Xon/Xoff
Specifications
Environment
Isolation Voltage
2,500 VDC
Operating Temperature
-10~60 °C (14~140 °F)
Relative Humidity
5~95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
General
Bus Interface
1 x PCIe x1
Hardware
Certification
CE, FCC class A
LED Indicators
PWR, STBY, TX1, RX1, TX2, RX2
Power Consumption
2 W@ 24 VDC
Mechanical
Enclosure
Aluminum housing
Mounting
DIN-rail
Weight (Net)
200 g
Serial Communication
Baud Rate (bps)
50 bps~230.4 kbps
Data Bits
5, 6, 7, 8
Data Signals
RS-232: TxD, RxD, GND
RS-422: Tx+, Tx-, Rx+, RX
RS-485: Data+, Data-
FIFO
256 bytes
Flow Control
Xon/Xoff
Parity
None, Even, Odd
Stop Bits
1, 1.5, 2
