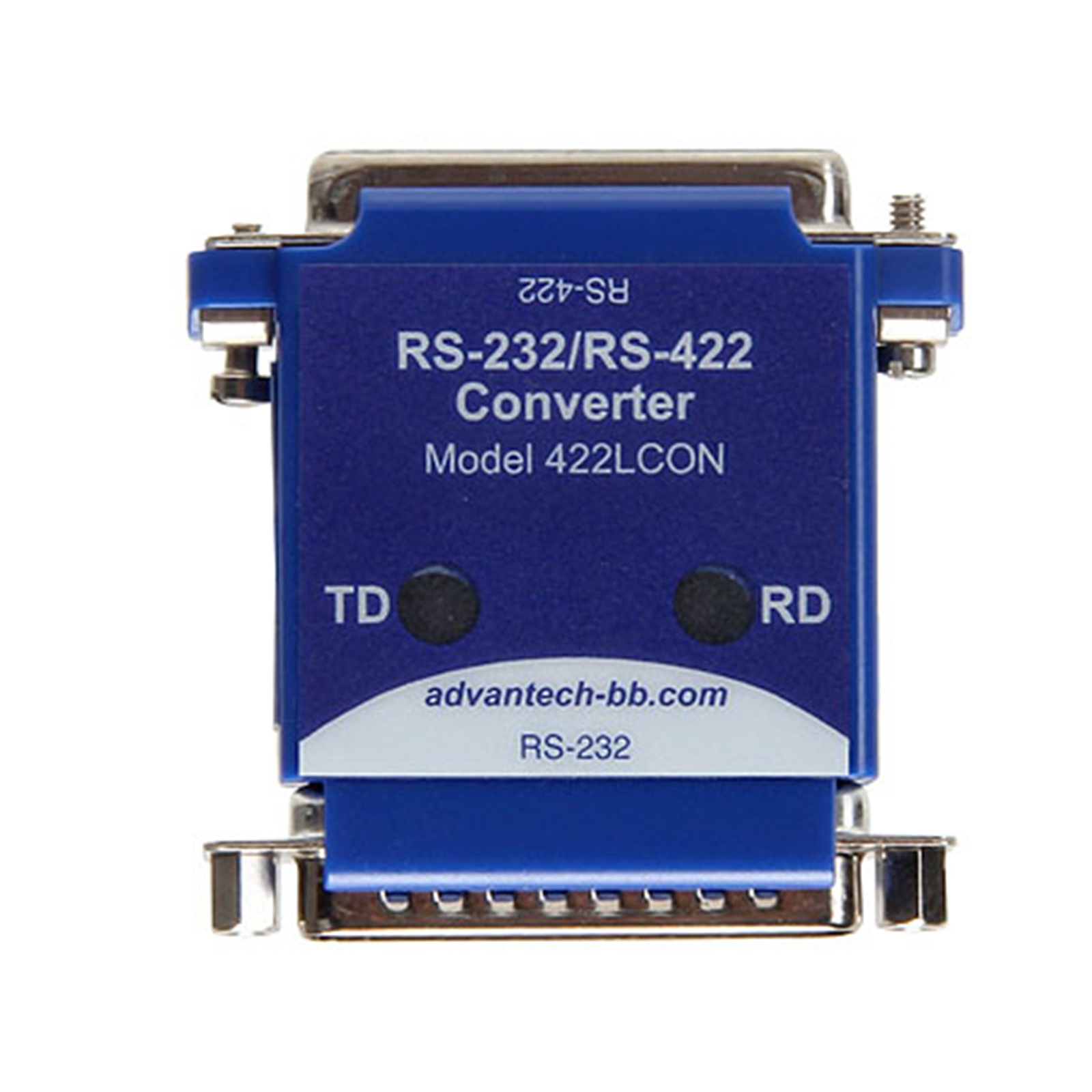

Advantech BB-422LCON Serial Converter, RS-232 DB-25 M to RS-422 DB25 F
- Brand: Advantech
- MPN: BB-422LCON
- Part #: IPCAVH220232

Product URL: https://www.pbtech.com/product/IPCAVH220232/Advantech-BB-422LCON-Serial-Converter-RS-232-DB-25
Features
Serial Converter, RS-232 DB-25 M to RS-422 DB25 F
- Converts unbalanced RS-232 signals to balanced RS-422 signals
- Extends RS-232 line up to 1200 m (4000 ft)
- Data rates up to 90 Kbps
- RS-422 driver can drive 10 RS-422 receivers in parallel ( use in multi-drop systems)
- DB25 M / DB25 F
- Power supply required (not included, sold separately)
Model BB-422LCON, non-isolated serial converter, converts unbalanced RS-232 signals to balanced RS-422 signals. The RS-422 Standard uses a balanced voltage digital interface to allow communications of 90K bits per second on cable lengths of 1200 meters (4000 ft). Ten receivers can be connected to any one driver for use in multi-drop systems. The RS-232 port is a male DB-25 connector with pins 2 (TD input) and 3 (RD output) supported. Protective Ground (pin 1) and Signal Ground (pin 7) are also connected. The RS- 422 port uses a female DB-25 connector with the Send Data outputs on pins 2 and 14, and the Receive Data inputs on pins 5 and 17. Protective Ground (pin 1) and Signal Ground (pin 7) are connected through to the RS-232 connector
Specifications
Technology
Serial
Mounting
Inline
Power
12VDC
Serial Type
RS-422
