Advantech BB-485FPP Serial Surge Protector, RS-422/485 Data Line, Fused
- Brand: Advantech
- MPN: BB-485FPP
- Part #: IPCAVH220243

Product URL: https://www.pbtech.com/product/IPCAVH220243/Advantech-BB-485FPP-Serial-Surge-Protector-RS-4224
Features
Serial Surge Protector, RS-422/485 Data Line, Fused
- Protects RS-422 or RS-485 ports
- 600W serial circuit surge suppression
- 125 mA fast-acting PCB fuses
- Simple in-line installation
- One time use, disposable unit
Single stage surge protectors offer a high degree of protection with Transient Voltage Suppressors (TVS) for each protected line.
Model BB-485FPP has 600W Transient Voltage Suppressors to clamp voltages without adversely affecting normal RS-422/485 data. Fast-acting 125 mA PCB fuses to protect RS-422 and RS-485 circuits against transient voltages that are too long or too large for normal suppression.

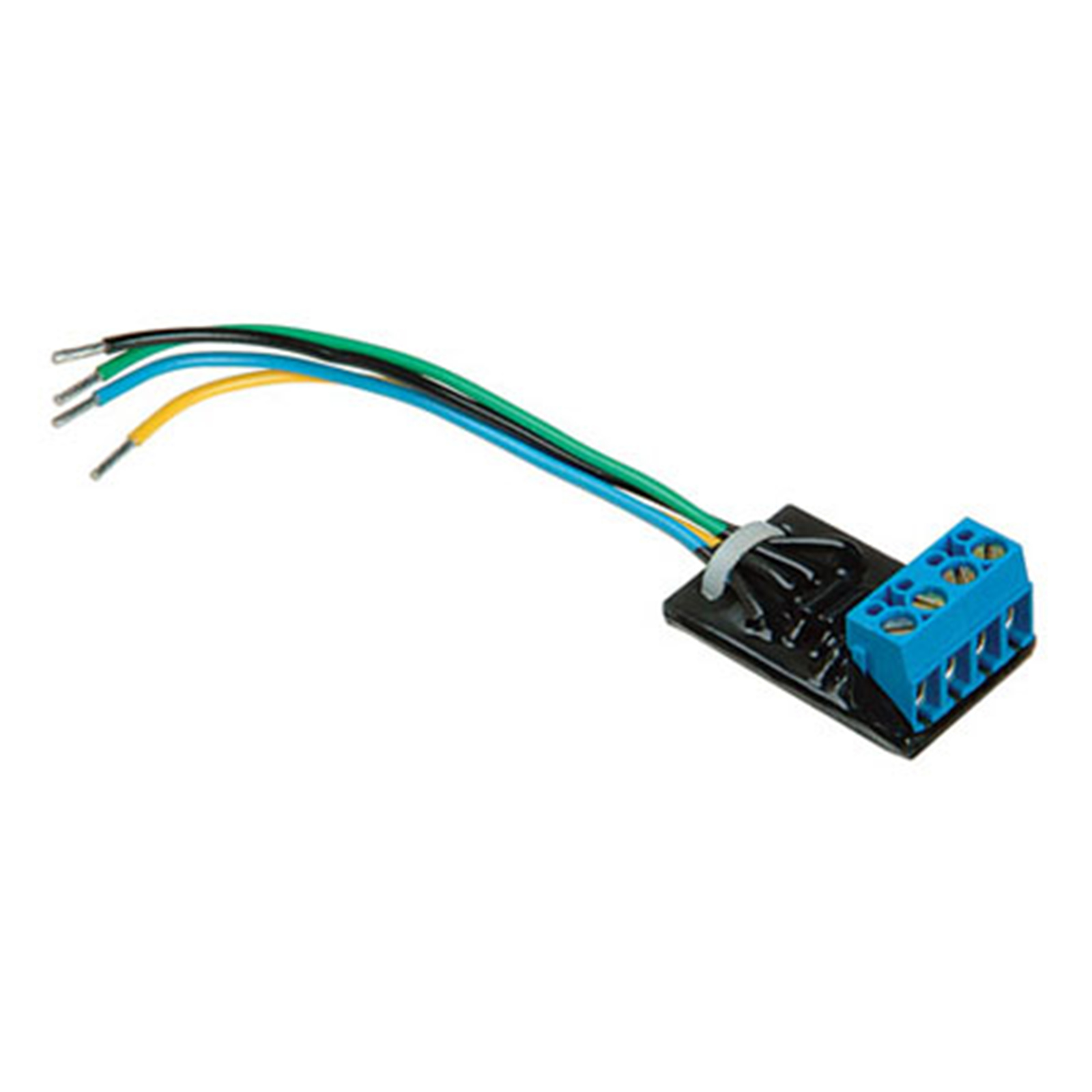

The BB-485FPP has 4 wires and terminal blocks for easy installation inline between the data cables - as close as possible to the serial port. Once a fuse is blown, the unit should be disposed and replaced.
Specifications
Technology
Serial
