Advantech BB-485OPDR ULI-234TC - RS-422/485 Repeater / Isolator, Industrial, Terminal Blocks

Normally $379.52

You save $11

AUD $ 367 .86

$ 367 .86

Advantech BB-485OPDR ULI-234TC - RS-422/485 Repeater / Isolator, Industrial, Terminal Blocks

Brand: Advantech
MPN: BB-485OPDR
Part #: IPCAVH220247
UPC:

Normally $379.52

You save $11

PB Tech price

AUD $ 367 .86

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: BB-485OPDR
Part #: IPCAVH220247
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

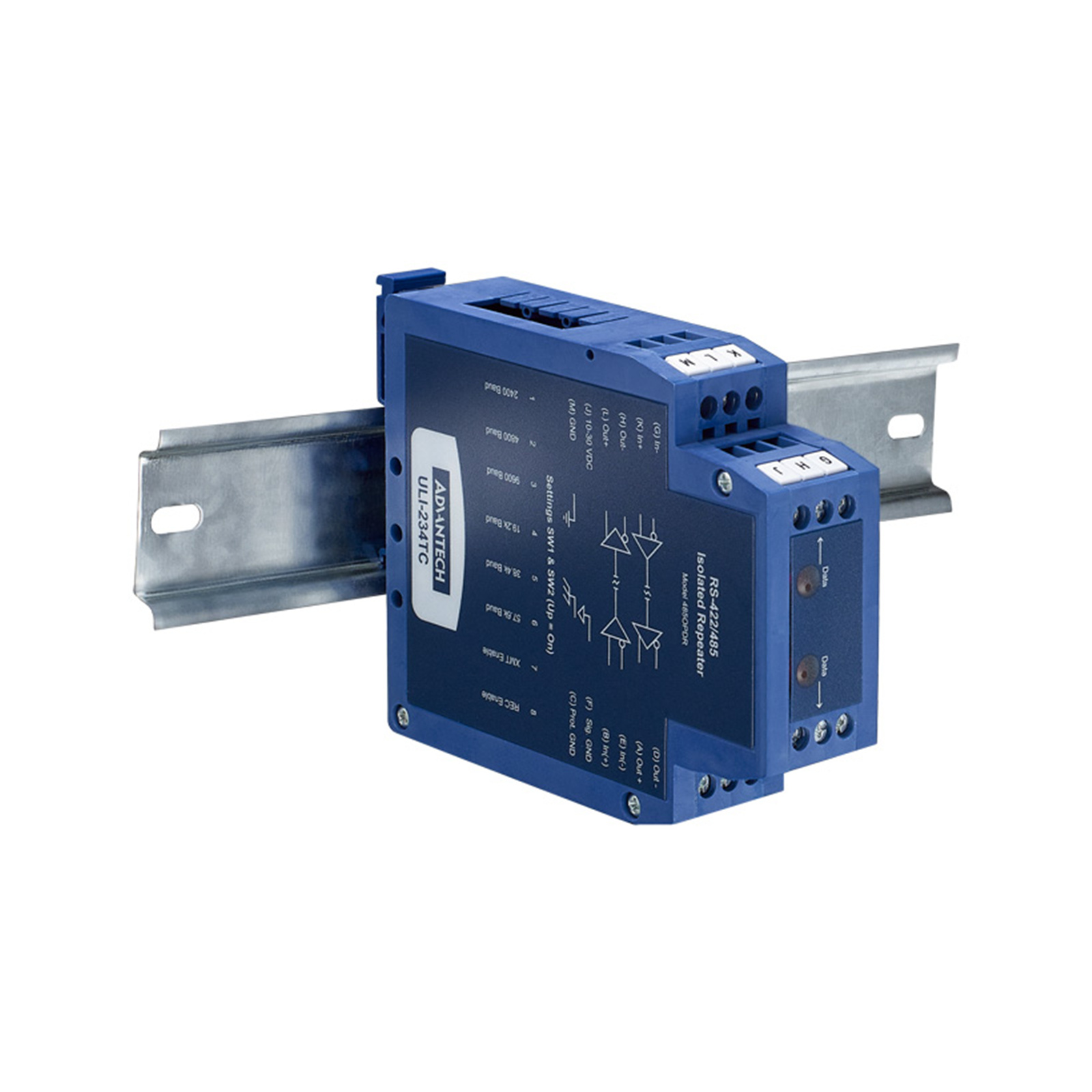

ULI-234TC - RS-422/485 Repeater / Isolator, Industrial DIN Mount, Terminal Blocks

- Extends RS-422/485 additional 1.2km
- 2 KV isolation; 600W surge suppression
- -40 to +80 °C wide operating temperature
- 10-30 Vdc power supply required (not included, sold separately)
- DIN rail mount (panel mount adapter available)
- cULus Recognized, UL508

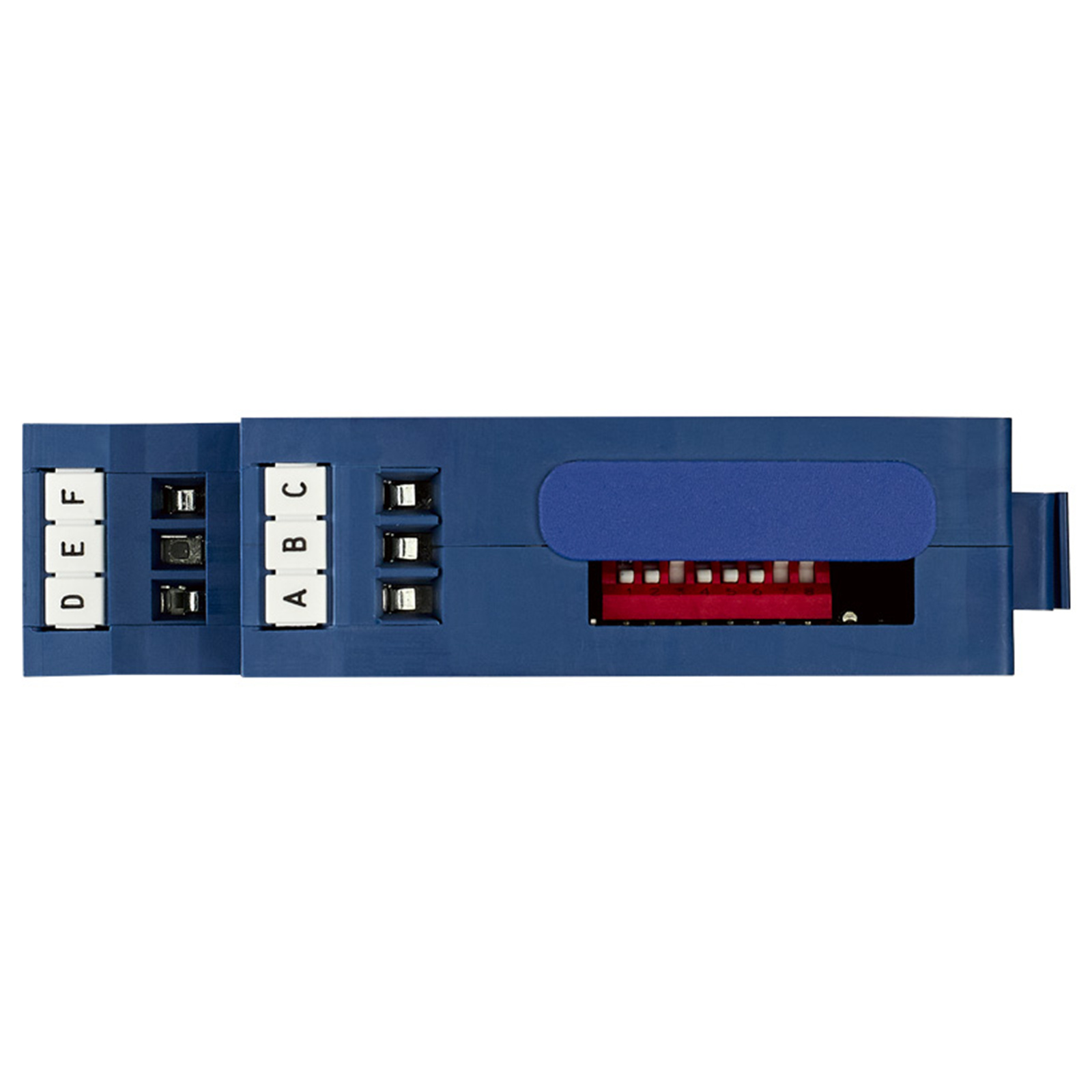

Model ULI-234TCL is an RS-422/485 signal repeater with 2 kV optical isolation on data lines and terminal blocks for RS-422, RS-485 2 or 4-wire modes. It extends RS- 422/485 an additional 1.2 km to double the communication range. Another benefit is the ability to add another 32 nodes to an RS-485 network and join 2 and 4 wire systems. Its compact design fits almost anywhere. Wiring schematic on the label eliminates guesswork. 12 Vdc PSU is required and included with USA, EU, UK, AU, UP and CN blades.

Specifications

General

Technology

Serial

Mounting

DIN

Power

10-30VDC

Temperature

-40 to 80C

Isolation

2kV

Serial Type

RS-422/485

Serial Communication

Serial Standard

RS-422 / RS-485

Maximum Serial Transmission Speed

115.2 Kbps

Serial Port Connector Type

Terminal block

Serial Port Number

Repeater Maximum Distance

1.2 Kilometers

Environment

Operating Temperature

-40 ~ 80°C (-40 ~ 176°F)

Protection

Isolation

2,000 VDC

Surge Protection

600W

Power

Power Input (DC)

10 ~ 30 VDC

Accessory General

Mounting

DIN

Manufacturer Part No:

BB-485OPDR

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220247

Product Model:

BB-485OPDR

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
