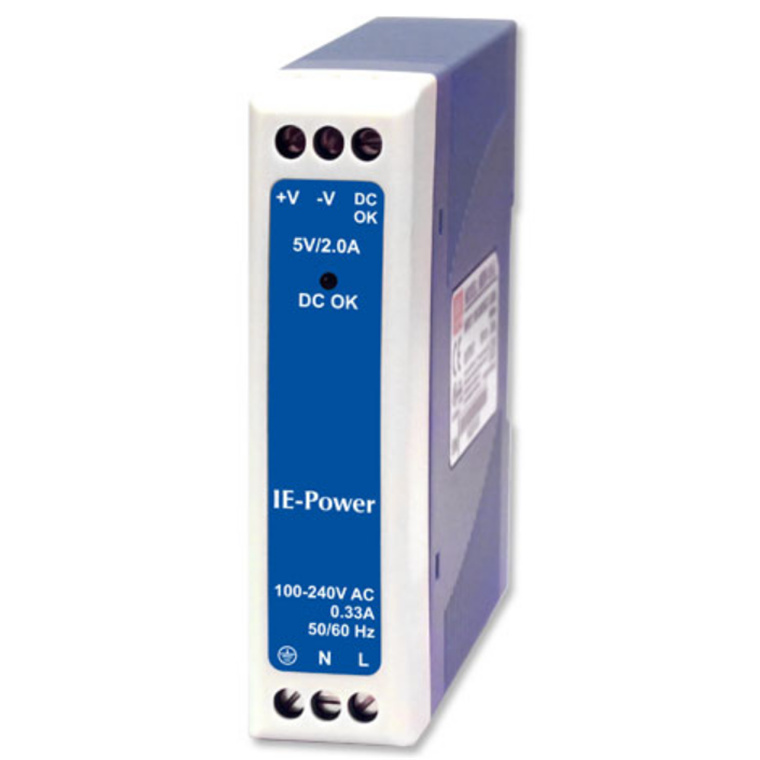

Advantech BB-806-39753 IE-POWER/5V Module
- Brand: Advantech
- MPN: BB-806-39753
- Part #: IPCAVH220274

Product URL: https://www.pbtech.com/product/IPCAVH220274/Advantech-BB-806-39753-IE-POWER5V-Module
Features
Industrial Ethernet AC to DC DIN Rail Power Supply
- Universal AC Input/Full Range
- Short circuit/Overload/Over voltage protection
- Low no load power consumption <0.75W
- Compact, fully isolated enclosure
- Includes 12" Barrel-Connector Power Cable
- Built-in DIN Rail mount
- DC OK active LED signal
For more information: https://advdownload.advantech.com/productfile/PIS/BB-806-39753/Product%20-%20Datasheet/DS-IE-Power5V-IE-Giga-MiniMc-2016_AB+B20160519051549.pdf
Specifications
Model Number
806-39753
Description
IE-Power/5V Module, AC to DC DIN Rail Power Adapter (-20° to 70° C)
Regulatory Approvals
FCC Class B UL 508/cUL CE, TUV EN 60950-1, NEC Class 2/LPS Compliant
Dimensions
3.54"H x 0.89"W x 3.94"D (9 x 2.25 x 10cm)
Power Information
Range: 85 - 264 VAC, 120 - 370 VD
Input: 47 - 63Hz, 0.33A/115VAC, 0.21A @ 230 VAC
Output
5V @ 2.0A
Operating Temperature
-4° to +158° F (-20° to +70° C)
20 to 90% (non-condensing)
Storing Temperature
-40° to +185° F (-40° to +85° C)
10 to 95%(non-condensing)
MTBF
584K hours (min.)
