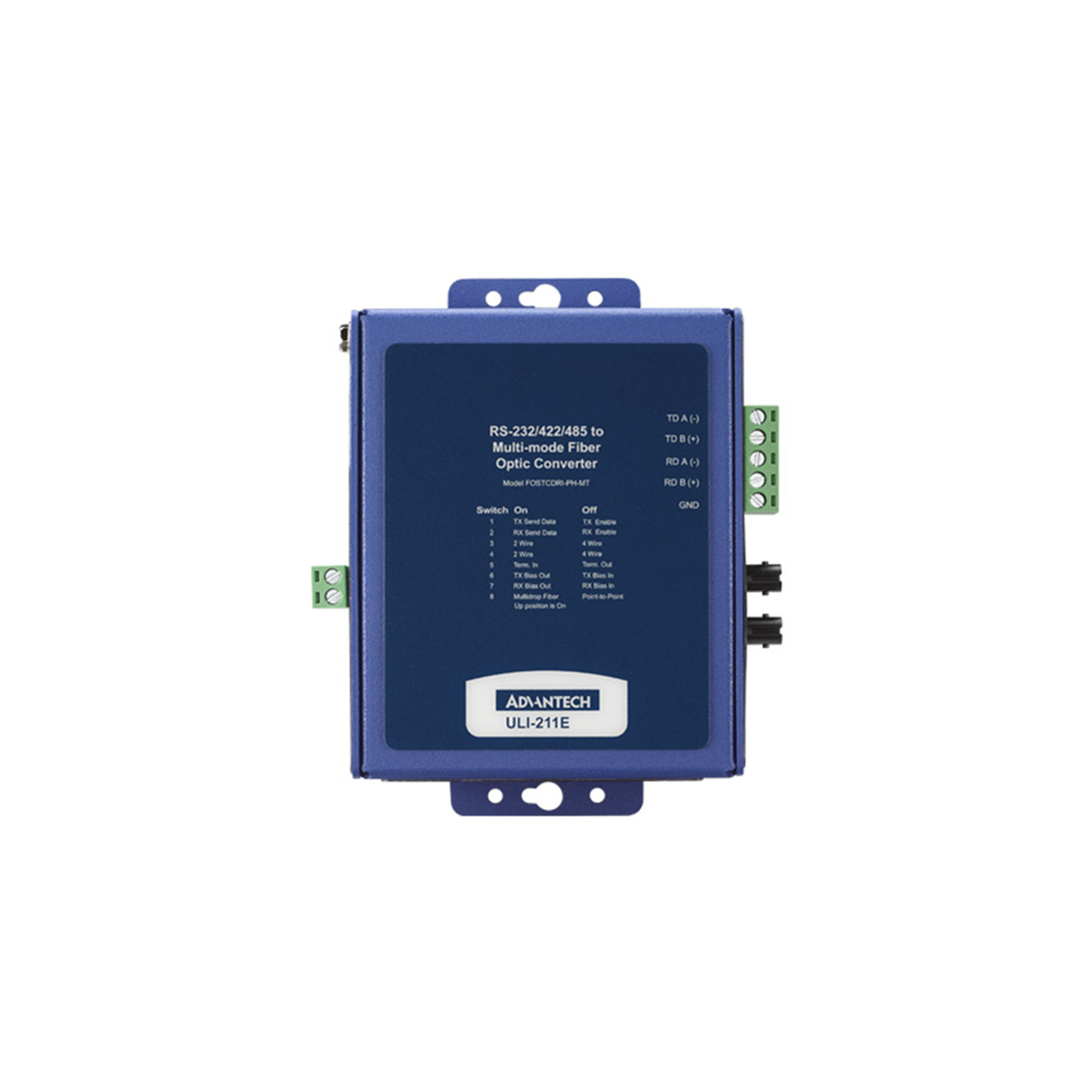

Advantech BB-FOSTCDRI-PH-MT ULI-211E Serial to Fiber Converter, RS-232/422/485 TB to MM Fiber ST, Ind. Panel, C1D2

Normally $716.81

You save $22

AUD $ 694 .78

$ 694 .78

Advantech BB-FOSTCDRI-PH-MT ULI-211E Serial to Fiber Converter, RS-232/422/485 TB to MM Fiber ST, Ind. Panel, C1D2

Brand: Advantech
MPN: BB-FOSTCDRI-PH-MT
Part #: IPCAVH220300
UPC:

Normally $716.81

You save $22

PB Tech price

AUD $ 694 .78

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: BB-FOSTCDRI-PH-MT
Part #: IPCAVH220300
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

ULI-211E - Heavy Industrial RS-232/422/485 (Terminal Block) to Multimode Fiber (ST Connector). Panel Mount Metal Chassis

- Converts serial data signals to multi- or single-mode fiber
- 2 KV, 3-way isolation (input, output, power circuits)
- Data rate: 9.6 to 115.2 kbps (bit-wise enable)
- -40 to +85°C wide operating temperature
- IP30 metal panel mount case (DIN rail adaptable)
- FCC, CE, IEC-61850-3, IEEE 1613, UL C1/D2
- Note: 2 units required to extend data via fiber optic connection (see datasheet)
- 10-48 VDC power source required (not included, sold separately)

Specifications

General

Technology

Serial

Mounting

Panel

Power

10-48VDC

Temperature

-40 to 85C

Serial Type

RS-232/422/485

Serial Connector

Terminal Block

Fiber Type

Multi-mode

Serial Communication

Serial Standard

RS-232 / RS-422 / RS-485

Serial Port Connector Type

Terminal block

Serial Port Number

Maximum Serial Transmission Speed

115.2 Kbps

Fiber General

Optical Mode

Multi-mode

Max. Distance

2 km

Optical Connector

Optical Wavelength

1310 nm

Optical Port Number

Environment

Operating Temperature

-40 ~ 85°C (-40 ~ 185°F)

Protection

Isolation

2,000 VDC

Surge Protection

600W

Certification

Safety

UL C1/D2 (Class I, Division 2)

Substation

IEC-61850-3

Power

Power Input (DC)

10 ~ 48 VDC

Accessory General

Mounting

Panel

Mechanism

Enclosure (Metal)

Metal

Manufacturer Part No:

BB-FOSTCDRI-PH-MT

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220300

Product Model:

BB-FOSTCDRI-PH-MT

Warranty: 12 months *
