Advantech BB-FOSTCDRI-PH-SC ULI-213E - Serial to Fiber Converter, RS-232/422/485 TB to SM Fiber SC, Ind. Panel, C1D2
- Brand: Advantech
- MPN: BB-FOSTCDRI-PH-SC
- Part #: IPCAVH220301

Product URL: https://www.pbtech.com/product/IPCAVH220301/Advantech-BB-FOSTCDRI-PH-SC-ULI-213E---Serial-to-F
Features

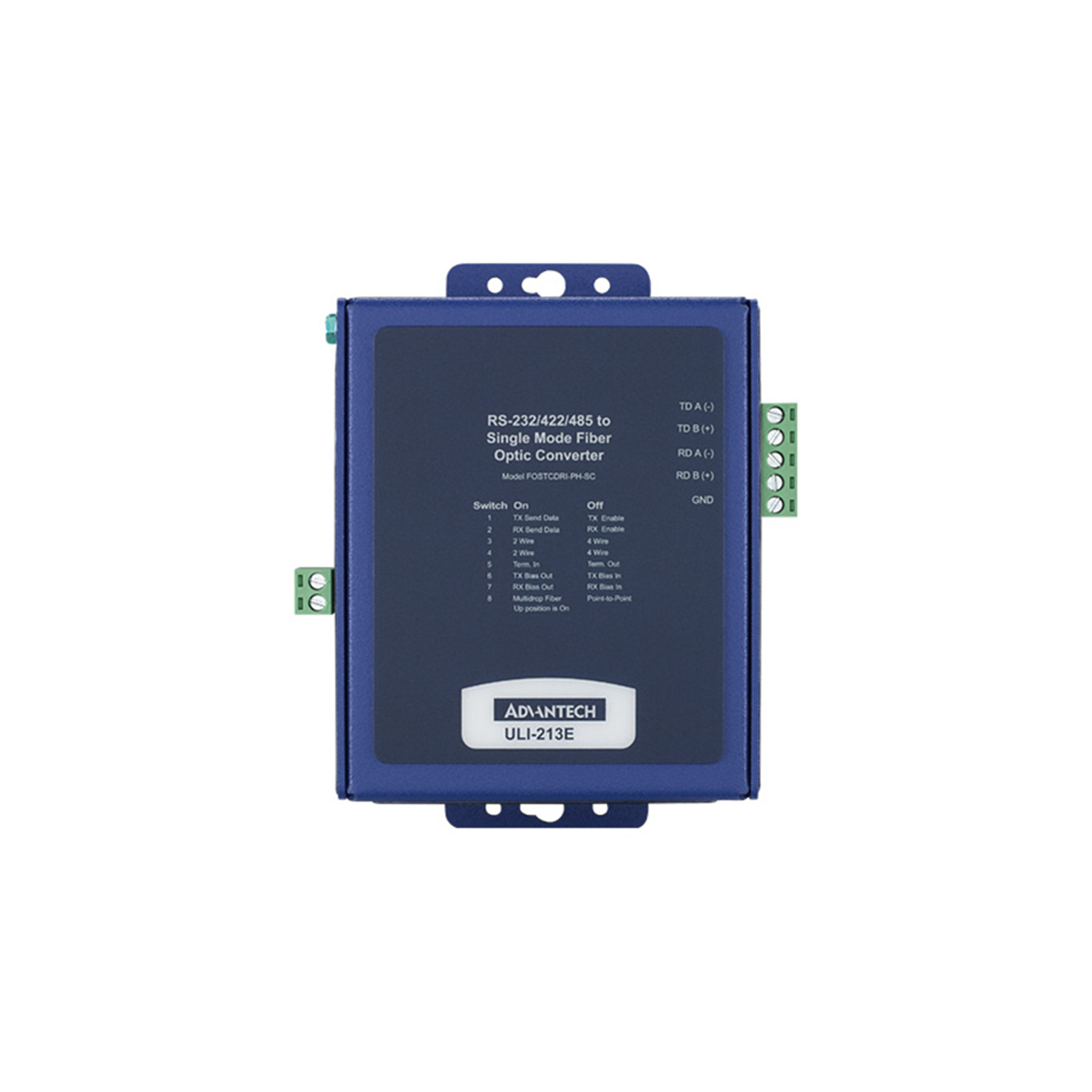

ULI-213E - Heavy Industrial RS-232/422/485 (Terminal Block) to Single Mode Fiber (SC Connector) Panel Mount Metal Chassis
- Converts serial data signals to multi- or single-mode fiber, SC connector
- 2 KV, 3-way isolation (input, output, power circuits)
- Data rate: 9.6 to 115.2 kbps (bit-wise enable)
- -40 to +85°C wide operating temperature
- IP30 metal panel mount case (DIN rail adaptable)
- FCC, CE, IEC-61850-3, IEEE 1613, UL C1/D2
- 10-48 VDC power source required (not included, sold separately)
Note: 2 units required to extend data via fiber optic connection
Specifications
General
Technology
Serial
Mounting
Panel
Power
10-48VDC
Temperature
-40 to 85C
Serial Type
RS-232/422/485
Serial Connector
Terminal Block
Fiber Type
Single-mode
Serial Communication
Serial Standard
RS-232 / RS-422 / RS-485
Serial Port Connector Type
Terminal block
Serial Port Number
1
Maximum Serial Transmission Speed
115.2 Kbps
Fiber General
Optical Mode
Single-mode
Max. Distance
15 km
Optical Connector
SC
Optical Wavelength
1310 nm
Optical Port Number
1
Environment
Operating Temperature
-40 ~ 85°C (-40 ~ 185°F)
Protection
Isolation
2,000 VDC
Surge Protection
600W
Certification
Safety
UL C1/D2 (Class I, Division 2)
Substation
IEC-61850-3
Power
Power Input (DC)
10 ~ 48 VDC
Accessory General
Mounting
Panel
Mechanism
Enclosure (Metal)
Metal
