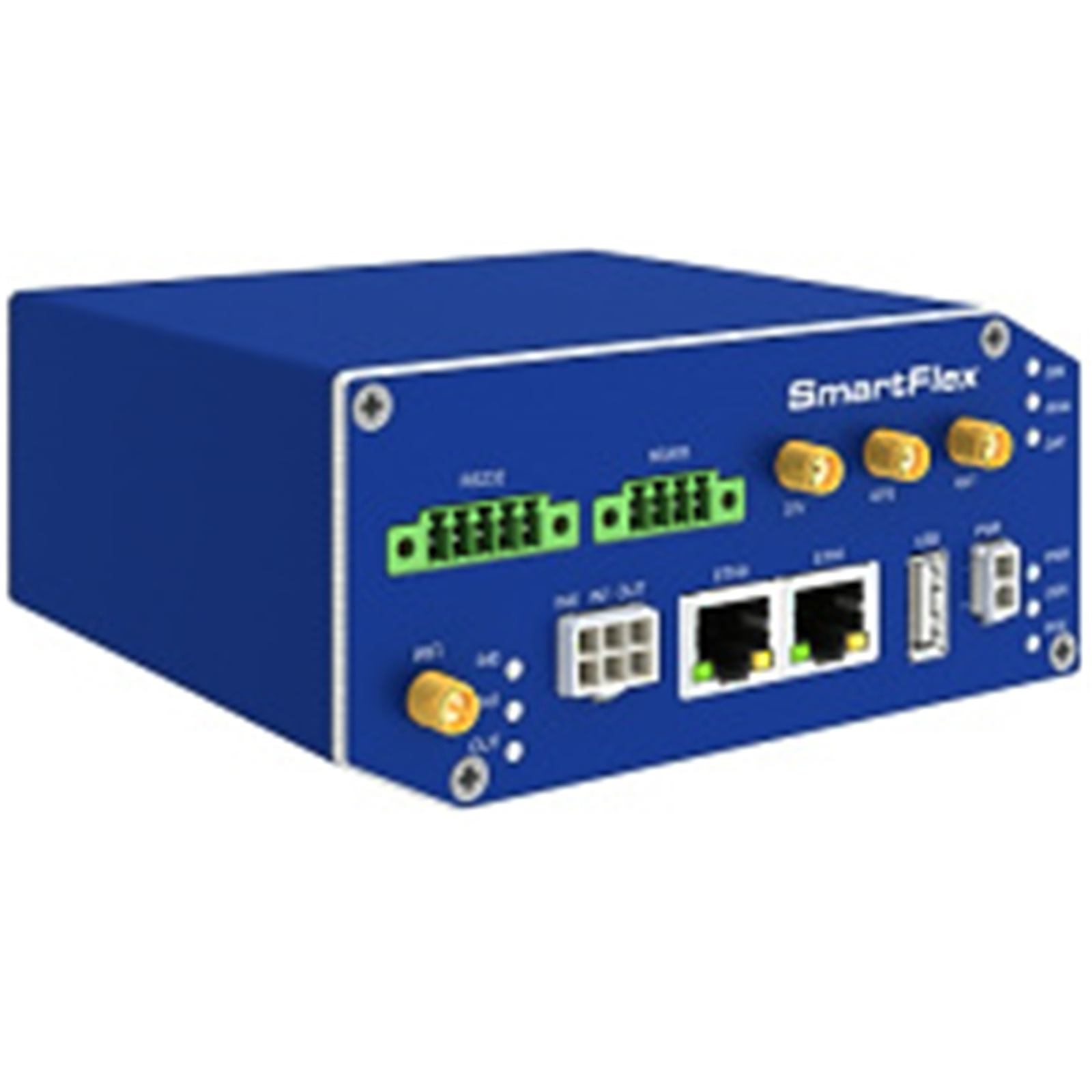

Advantech BB-SR30810325-SWH SmartFlex, AUS/NZ, 2x Ethernet, 1x RS232, 1x RS485, Wi-Fi, Metal, International Power Supply (EU, US, UK, AUS)

Normally $1,542.22

You save $47

AUD $ 1,494 .83

$ 1,494 .83

Advantech BB-SR30810325-SWH SmartFlex, AUS/NZ, 2x Ethernet, 1x RS232, 1x RS485, Wi-Fi, Metal, International Power Supply (EU, US, UK, AUS)

Brand: Advantech
MPN: BB-SR30810325-SWH
Part #: IPCAVH220350
UPC:

Normally $1,542.22

You save $47

PB Tech price

AUD $ 1,494 .83

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: BB-SR30810325-SWH
Part #: IPCAVH220350
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- LTE cat.4, 3G/HSPA+, GPRS/EDGE, AUS/NZ, 2x SIM
- LTE B1, B2, B3, B4, B5, B7, B8, B28, B40
- Powerful CPU and Memory, Hosting of SW IoT applications
- DIN rail mounting, Sleep mode
- 2x ETH;1x RS232, 1x RS485/422
- WiFi 2.4/5 GHz, GPS, USB, I/O 2x DI + 1x DO, MicroSD
- Operating temp. -40 °C to +75 °C, Power supply 10 to 60 V DC
- Certifications: RCM;Advanced networking, Diagnostics, VPN support, Firewall;

Specifications

PORTS, LED, ANTENNAS

Up to 5x ETH ports

RJ45, 10/100 Mbps

SIM

2 Mini SIMs (2FF) (rear panel)

LED Indicators

PWR, DAT, WAN, ETH, SIM, USR, POE, IN0,
IN1, OUT

USB

USB Host connector 2.0

SD Card

1x Micro SD Card slot (rear panel)

RST

RESET button (rear panel)

*Optional 3-port SWITCH

3x RJ45, 10/100 Mbps

*Optional ETH - R232 - RS485

RJ45, 4-pin terminal block, 3-pin terminal block
connectors - Isolation up to 2.5 kV

*Optional RS232 - RS485

5-pin terminal block, 4-pin terminal block
connectors - Isolation up to 2.5 kV

POWER

Power Supply

(sold separately) 10 - 60 VDC (2-Way Molex connector

Power Consumption

Idle: 2.5 W
Average: 4 W
Peak: 11 W
Sleep Mode: 10mW

ENVIRONMENTAL

Temperature

Range Operating: -40 to +75 °C
Storage: -40 to +85 °C

Humidity

Operating: 0 to 95 %
Storage (Non-condensing): 0 to 95 %

Cold Start

-40 °C

Operating Altitude

2000 m / 70 kPa

Ingress Protection Rating

IP30

MECHANICAL

Enclosure Dimensions

55x97x125 mm

Weight Plastic

170 g

Weight Metal

375 g

OTHER TECHNICAL PARAMETERS

CPU Power

2 DMIPS per MHz

Flash memory

256 MB

RAM

512 MB

M-RAM

128 kB

Manufacturer Part No:

BB-SR30810325-SWH

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220350

Product Model:

BB-SR30810325-SWH

Warranty: 12 months *
