Advantech BB-TTL3USB9M Serial Converter, USB 2.0 to 3.3 V TTL DB9 M

Normally $178.14

You save $5

AUD $ 172 .67

$ 172 .67

Advantech BB-TTL3USB9M Serial Converter, USB 2.0 to 3.3 V TTL DB9 M

Brand: Advantech
MPN: BB-TTL3USB9M
Part #: IPCAVH220364
UPC:

Normally $178.14

You save $5

PB Tech price

AUD $ 172 .67

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

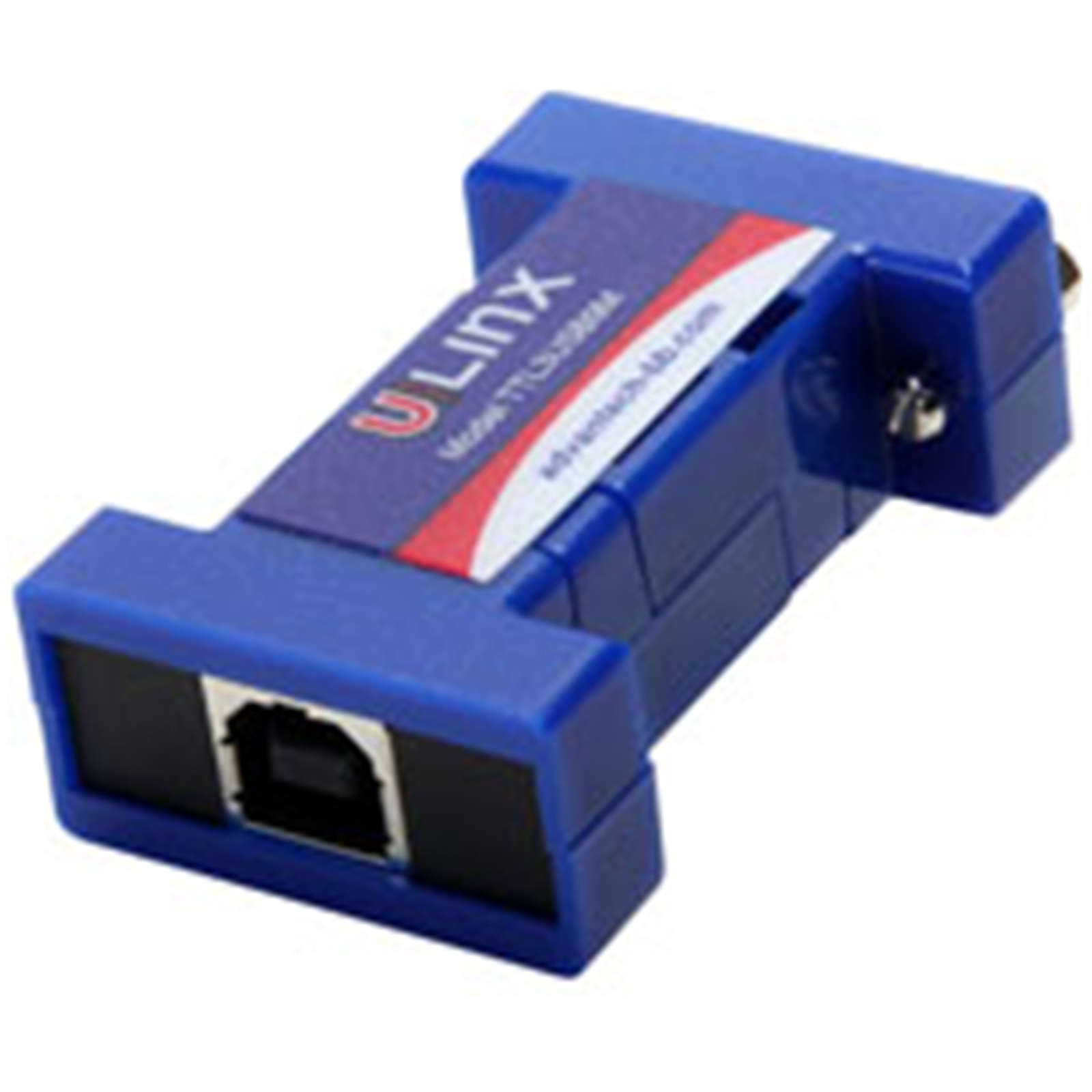

Click or hover over image to enlarge

Brand: Advantech
MPN: BB-TTL3USB9M
Part #: IPCAVH220364
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

USB to TTL Miniature Converter Model BB-TTL3USB9M

- Connect 3.3V TTL devices to your USB port
- TTL data rate: up to 460.8 Kbps
- Quick, convenient in-line installation
- USB port-powered
- Small easily fits in laptop bag - perfect for field service
- USB 2.0 (12 Mbps) compatible
- Supports Windows 98, ME, 2000, XP, Vista, 7 (32/64 bit), 8 (32/64 bit)
- USB cable included

Universal Serial Bus (USB) has become the connectivity workhorse of today's PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the TTL interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution. The BB-TTL3USB9M, USB to 3.3V TTL converter, offers this solution in a space saving, port-powered package. Simply install the drivers supplied on CD ROM and plug the converter into an
available USB port on your computer or USB hub. The device will show up as an additional COM port in the Windows Device Manager which is fully compatible with your Windows applications. A one meter USB cable is included.

Download data sheet: https://advdownload.advantech.com/productfile/PIS/BB-TTL3USB9M/file/BB-TTL3USB9M_2220ds20200528170424.pdf

Specifications

SERIAL TECHNOLOGY

TTL

TD, RD, CTS, RTS, GND

Level

3.3V

Connector

DB9 Male

Data Rate

Up to 460.8 Kbps

USB TECHNOLOGY

Connector

USB Type B Female

Standard

2.0 (backward compatible)

Data Rate

12 Mbps

POWER

Source

USB Port

Input Voltage

5 VDC

Consumption

~ 0.5 W (Low power device, draws less than 100 mA)

SOFTWARE

Driver CD

Windows 98, ME, 2000, XP, Vista, 7 (32/64 bit), 8 (32/64 bit)

MECHANICAL

Dimensions

5.8 x 3.2 x 1.6 cm (2.3 x 1.3 x .6 in)

Enclosure

In-line mounted, plastic

Weight

104.3 g (0.23 lb) with USB cable

ENVIRONMENTAL

Operating Temperature

0 to +70 °C (+32 to +158 °F)

Storage Temperature

-40 to +85 °C (-40 to +185 °F)

Operating Humidity

0 to 95% (non-condensing)

MEANTIME BETWEEN FAILURES (MTBF)

TTL3USB9M

1981564 hours

MTBF Method

Parts Count Reliability Prediction

Manufacturer Part No:

BB-TTL3USB9M

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220364

Product Model:

BB-TTL3USB9M

Warranty: 12 months *
