Advantech BB-UHR207 ULI-417I USB 2.0 Hub, 7 Port, Industrial
- Brand: Advantech
- MPN: BB-UHR207
- Part #: IPCAVH220368

Product URL: https://www.pbtech.com/product/IPCAVH220368/Advantech-BB-UHR207-ULI-417I-USB-20-Hub-7-Port-Ind
Features

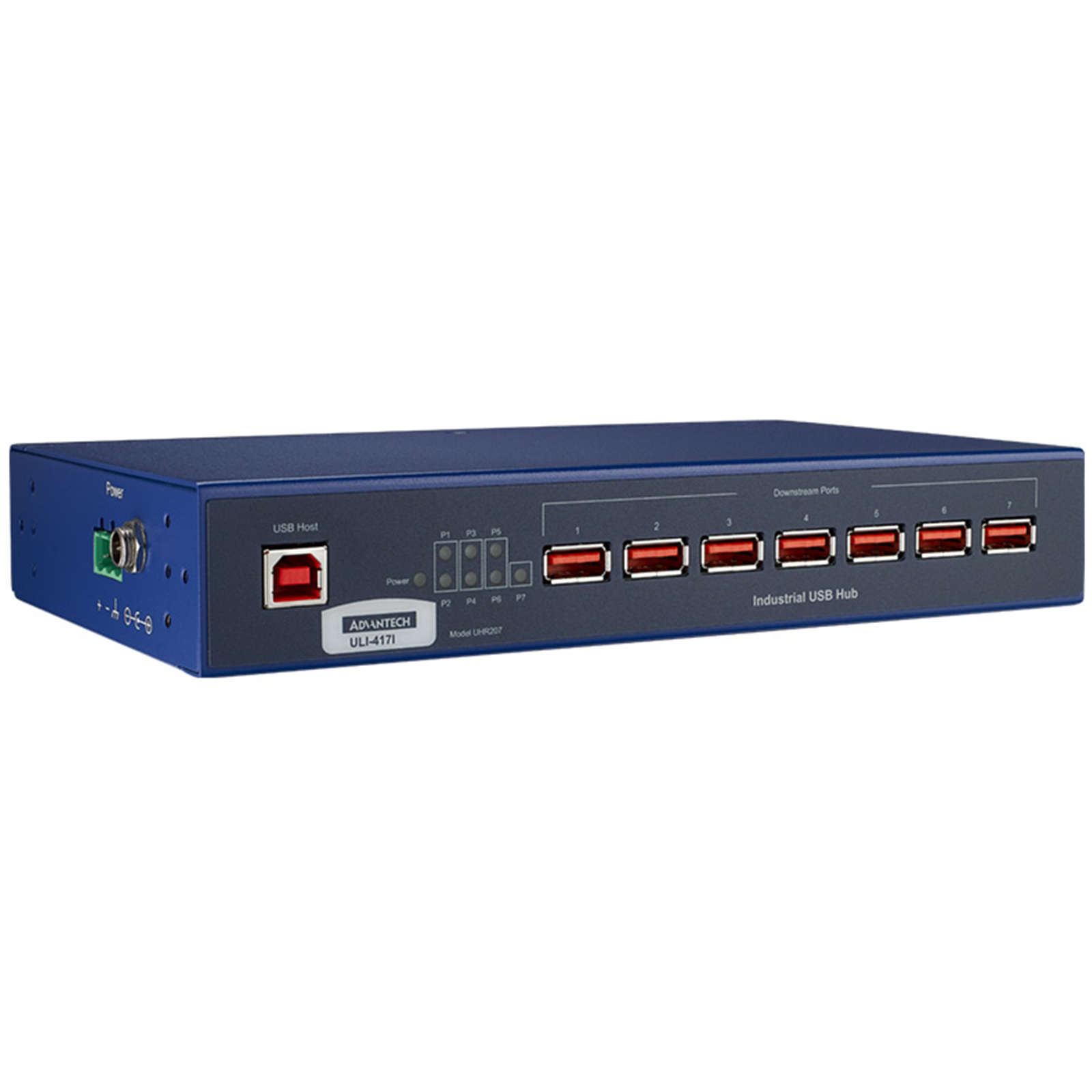

BB-UHR207 ULI-417I - Industrial USB 2.0 Hub, 7 Ports with High Retention Connectors
- Expands one USB port to 7 USB ports (USB 2.0)
- ESD Level 4 (contact 8 kV, air 15 kV) Performance Criteria B
- Data rate: 480 Mbps full speed
- Wide operating temperature: -40 to +80 °C
- Rugged metal case - desk, DIN rail or panel mount (brackets included)
- FCC, CE, UL, EMC heavy industrial
- High retention USB port connectors
- USB cable included, 1.8 m (6 ft)
- External power source required (not included, sold separately)
Specifications
Protection
ESD Protection
15 kV
Power
Power Input (DC)
10 ~ 30 VDC
Environment
Operating Temperature
-40 ~ 80°C (-40 ~ 176°F)
Certification
Safety
UL508, Class 1 Division 2
Upstream USB Port
Standard
USB 2.0
Maximum Transfer Rate
Hi-Speed (480 Mbps)
Connector Type
Type B (Female) High Retention
Port Number
1
Downstream USB Port
Standard
USB 2.0
Maximum Transfer Rate
Hi-Speed (480 Mbps)
Connector Type
Type A (Female) High Retention
Port Number
7
Supply Current
500mA for each downstream port
Mechanism
Enclosure (Metal)
Metal
Accessory General
Mounting
DIN
