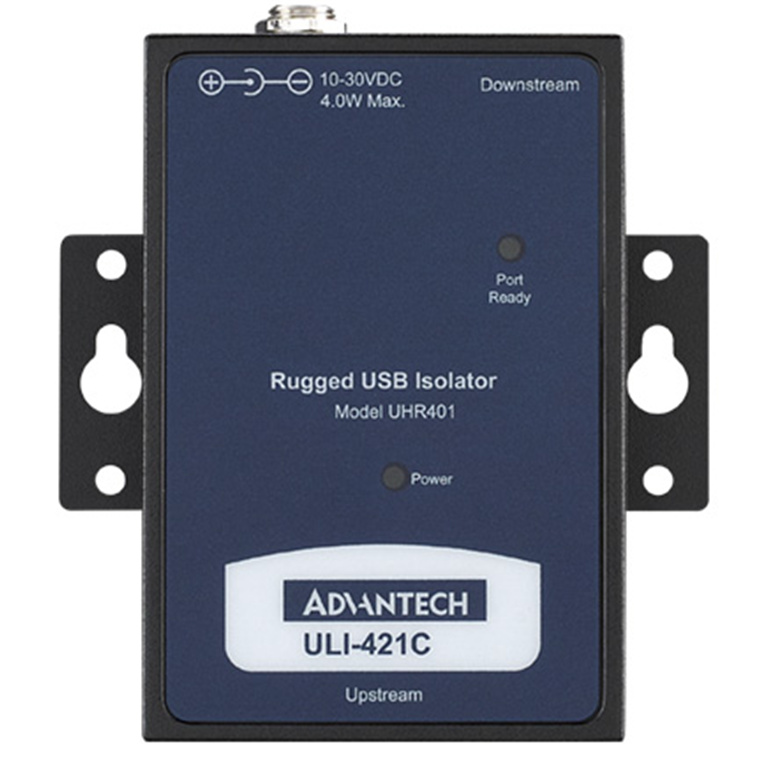

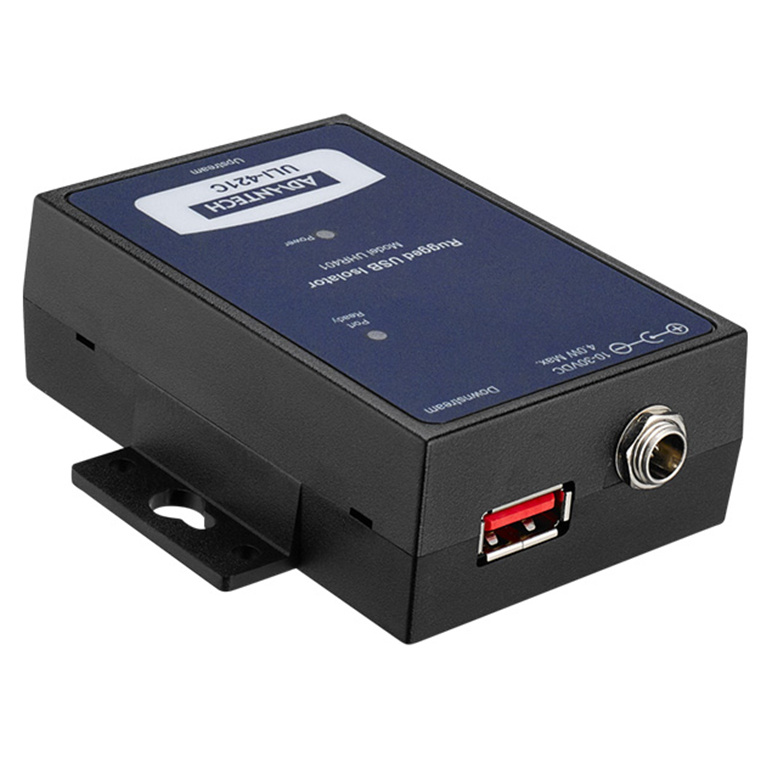

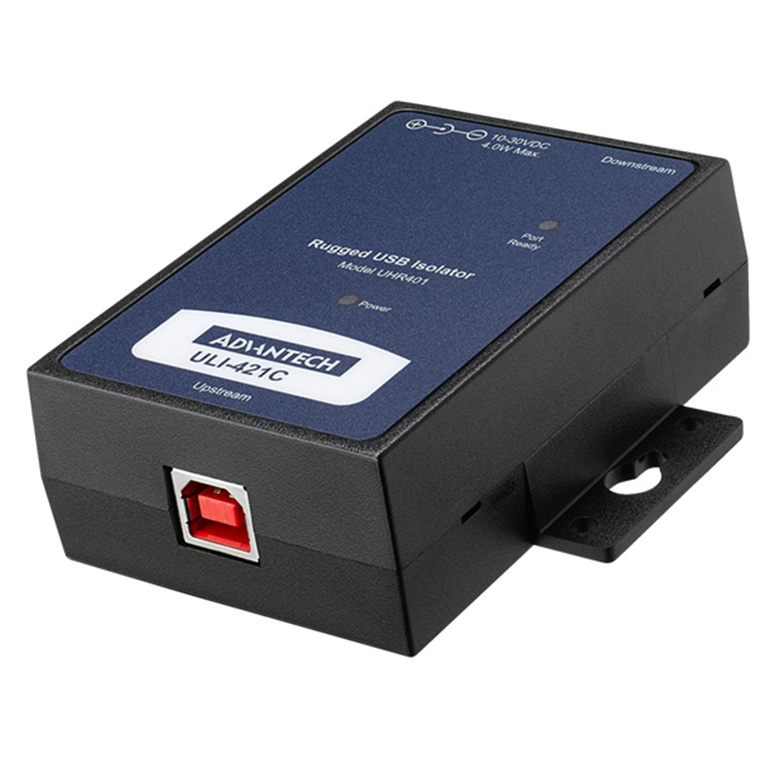

Advantech BB-UHR401 ULI-421C - USB 2.0 Isolator, 4 kV, High Retention Connectors
Advantech BB-UHR401 ULI-421C - USB 2.0 Isolator, 4 kV, High Retention Connectors
- Brand: Advantech
- MPN: BB-UHR401
- Part #: IPCAVH220370
- UPC:
- Brand: Advantech
- MPN: BB-UHR401
- Part #: IPCAVH220370
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Advantech BB-UHR401 ULI-421C - USB 2.0 Isolator, 4 kV, High Retention Connectors
- Brand: Advantech
- MPN: BB-UHR401
- Part #: IPCAVH220370

Product URL: https://www.pbtech.com/product/IPCAVH220370/Advantech-BB-UHR401-ULI-421C---USB-20-Isolator-4-k
Features
- 4 kV isolation protects equipment and data
- ESD Protection - 8 kV Air
- USB 2.0, full speed (12 Mbps)
- Panel mount, heavy-duty case (optional DIN rail adaptor clips)
- High Retention USB Connectors
- Both a power supply and a USB cable are included
For more information: https://advdownload.advantech.com/productfile/PIS/BB-UHR402/file/ULI-421_422-Series_DS(092823)20231005131529.pdf
Specifications
General
Technology
USB
Mounting
Panel
Power
10-30VDC
Temperature
0 to 50C
Isolation
4kV
USB Port Count
1
USB Speed
12Mbps
Power
Power Input (DC)
10 ~ 30 VDC
Interface
Port Number
1
Protection
ESD Protection
4 kV (Contact) ; 8 kV (Air)
Isolation
4,000 VDC
Upstream USB Port
Standard
USB 2.0
Maximum Transfer Rate
Full-Speed (12 Mbps)
Connector Type
Type B (Female) High Retention
Port Number
1
Downstream USB Port
Standard
USB 2.0
Maximum Transfer Rate
Full-Speed (12 Mbps)
Connector Type
Type A (Female) High Retention
Port Number
1
Supply Current
500mA for each downstream port
Environment
Operating Temperature
0 ~ 50°C (32 ~ 122°F)
