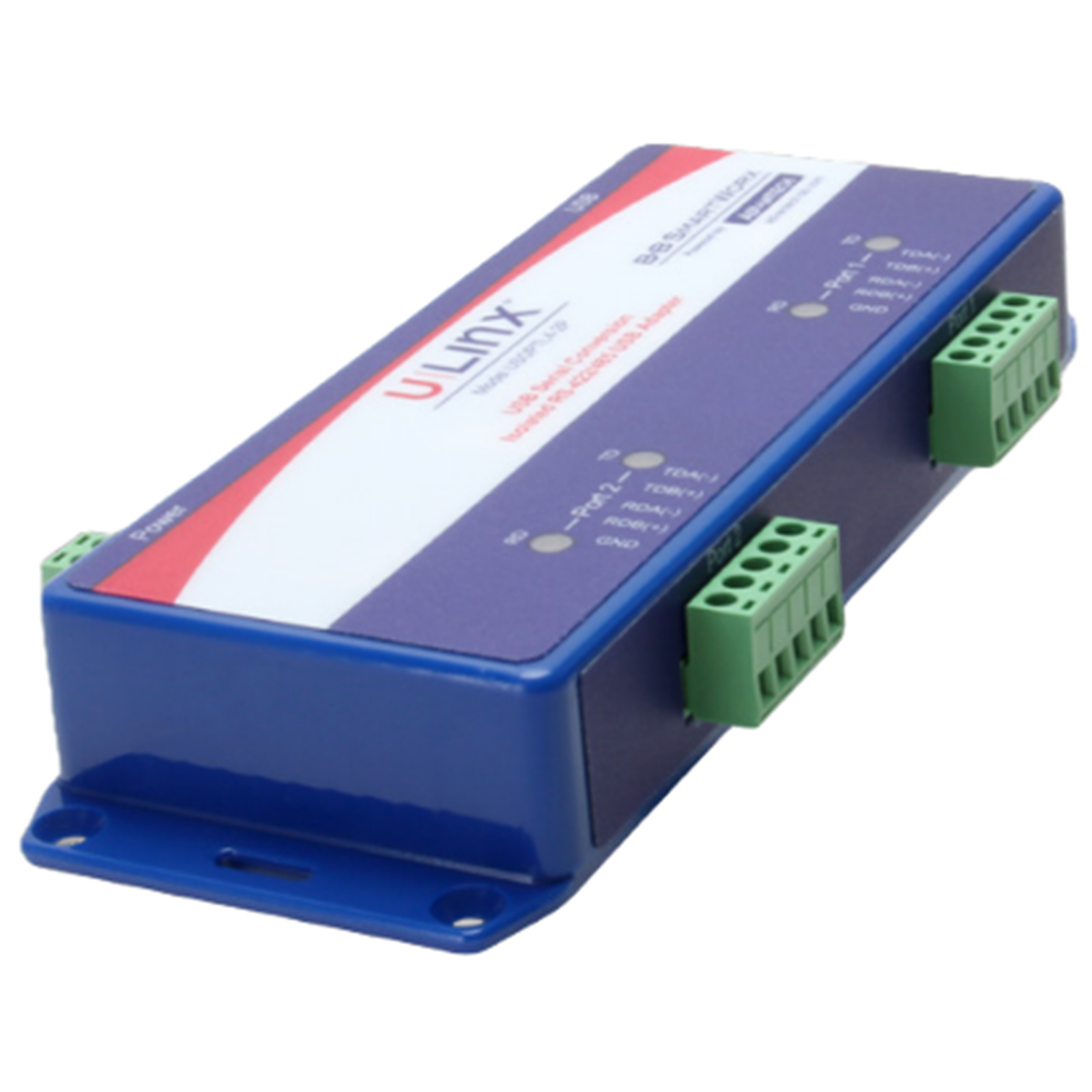

Advantech BB-USOPTL4-2P Serial Converter, USB 2.0 to 2 x RS-422/485 TB, Isolated

Normally $414.78
Normally $414.78
You save $12
You save $12
AUD $ 402 .03
$ 402 .03
$402.03  +GST
$402.03

Advantech BB-USOPTL4-2P Serial Converter, USB 2.0 to 2 x RS-422/485 TB, Isolated

  • Brand: Advantech
  • MPN: BB-USOPTL4-2P
  • Part #: IPCAVH220382
  • UPC:
Normally $414.78
Normally $414.78
You save $12
You save $12
PB Tech price
AUD $ 402 .03 $ 402 .03


Delivery: Order now and it ships on 30 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$402.03  +GST
$402.03

Features

Connect RS-422 and RS-485 (2-wire) devices to a USB port and gain 2000 RMS isolation from voltage spikes and ground loops.

Universal Serial Bus (USB) has become the connectivity workhorse of today's PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the RS-422/485 interface. To connect these devices to modern PCs and provide protection from electrical transients, you need a simple and reliable conversion solution.

Models BB-USOPTL4-2P offer this solution and are great for any application that requires long range or multi-drop capabilities. Both models offer a high retention USB interface, removable terminal blocks on the serial side and have LED's to indicate data flow. Simply plug the converter into an available USB port on your computer or USB hub and install the drivers (available for download from website). The device will show up as additional COM ports in the Windows Device Manager, which are fully compatible with your Windows applications. A USB cable is included.

Powering options included USB port-powering or an external power source (power supply not included, sold separately).

- Connect multiple RS-422/485 devices to your USB port
- 2kV optical isolation
- RS-422/485 data rates up to 921.6 kbps
- USB: 12 Mbps, USB 2.0 (backward compatible)
- USB port-power or external source (power supply not included, sold separately)
- High retention USB ports hold connections securely
- Removable serial terminal blocks for easy wiring
- USB cable included

For more information: https://advdownload.advantech.com/productfile/PIS/BB-USOPTL4-2P/file/BB-USOPTL4-2P_BB-USOPTL4-4P_0221ds20210121110336.pdf

Specifications

Serial Technology

RS-422/485

Connectors Removable terminal blocks

RS-422/485 Data Rate

921.6 kbps

Isolation

2kV, optical

USB Technology

Connector

USB Type B female, high retention withdrawal >15N

Standard

1.1 and 2.0 compatible

Data Rate

12 Mbps

Power

Source

USB port or external source (not included, sold separately)

Input Voltage

Vdc from USB port or 10 - 30 Vdc external power supply

Consumption

Higher power device (>100 mA)
BB-USOPTL4-2P: 3W, external power supply

Software

Driver O/S Support

Windows 10 (32/64 bit), Server 2016, Server 2019

Mechanical

Dimensions, w/ flanges

19.10L x 7.09W x 2.93H cm (7.52L x 2.79W x 1.15H in)

Weight

2 port: 340.2 g (0.75 lb)

Environmental

Operating Temperature

0 to +70 °C (+32 to +158 °F)

Storage Temperature

-40 to +85 °C (-40 to +185 °F)

Operating Humidity

0 to 95% (non-condensing)

Meantime Between Failures (MTBF)

BB-USOPTL4-2P

125224 hours

MTBF Method

MIL 217F Parts Count Reliability Prediction

Regulatory

Approvals

FCC, UL

CE Standards

EMC:
EN 55032 Class B - Electromagnetic Compatibility of
Multimedia eEquipment - Emission Requirements
EN 55024 - Information Technology Equipment - Immunity
Characteristics - Limits and Methods of Measurement

CE Directives

2014/30/EU Electromagnetic Compatibility Directive
2011/65/EU amended by (EU) 2015/863 Reduction of
Hazardous Substances Directive (RoHS)
2012/19/EU Waste Eectrical and Electronic Equipment (WEEE)

Manufacturer Part No:
BB-USOPTL4-2P
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220382
Product Model:
BB-USOPTL4-2P
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews
