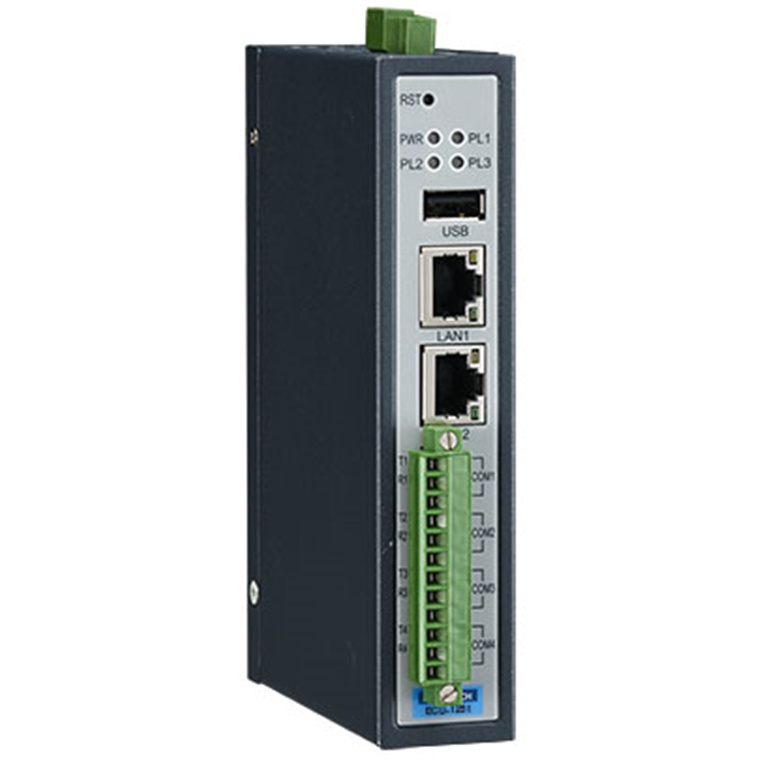

Advantech ECU-1251TL-R10ABE A8 800MHz,2xLAN,4xCOM,1xmPCIe,w/EdgeLink,48V
- Brand: Advantech
- MPN: ECU-1251TL-R10ABE
- Part #: IPCAVH220405

Product URL: https://www.pbtech.com/product/IPCAVH220405/Advantech-ECU-1251TL-R10ABE-A8-800MHz2xLAN4xCOM1xm
Features
For solar power, electricity and factory related applications which require a total wireless and Ethernet communication solutions, Advantech has released the ECU-1251 RISC-based industrial communication gateway. ECU-1251 has an open platform design with Cortex A8 processor, up to four RS-232/485 isolated serial ports, two 10/100 Ethernet ports and operating temperature range of -40~70°C.WithLinux operating system and open Edgelink SDK, which enable to system integrators to develop applications which precisely fit their need.
- TI Cortex A8 800MHz CPU
- DDR3L256MB RAM
- 1GB Micro-SD card for system storage
- 1x Micro-SD Slot
- 4x RS-232/485 isolated serial ports
- 2x 10/100 Base-T Ethernet ports
- 1x Mini-PCIe for WIFI/Cellular/4G
- Support web service for remotely on-line monitoring
- Support SD card & on-line firmware update
- Support Modbus, IEC-60870-101/104 protocol
- Support Data logger on SD card
- Operation System: RT-Linux
- Operation Temperature -40~70°
Specifications
System
CPU
TI Cortex A8, 800MHz
RAM
DDR3L 256MB
Storage
4GB Micro-SD card
SD Slot
1 x Micro-SD
Real Time Clock
Yes
Watchdog Timer
Yes
Node ID
Yes
TPM
NA
I/O Interfaces
Serial Ports
4 x RS-232/485 isolation 3000VDC, 1 x 12-Pin Terminal Block, 50 ~ 115.2kbps
LAN Ports
2 x 10/100 RJ-45
USB Ports
1 x USB 2.0
Displays
NA
Mini-PCIE
1x Mini-PCIe (Full-size),Type: WIFI/Cellular/4G,Signal: USB 2.0
WISE-Edgelink
Protocol Support
OPC-UA Client & Server,BACNet/IP Client & Server,Modbus RTU/TCP,
IEC-60870-5-101,IEC-60870-5-103,IEC-60870-5-104
PLC driver support
Siemens/Mitsubishi/Omron/Allen-Bradley, Delta etc 200+ PLC drivers
Programming
Support Linux C, Phython
Configuration Tool
WISE-EdgeLink Studio
Data Monitoring
2000 Tags MAX.
Cloud Connectivity
WISE-Edge365, MQTT, AWS, Azure, LwM2M, Google Cloud IoT Core and more
Database Transmission
SQL Server, MySQL, ORACEL, FTP Server
VPN
Open VPN
Gerneral
Certification
CE, FCC,EN-62368-1,UKCA
Dimensions (W x D x H)
140 x 96.5 x 30mm
Form Factor
Small Size
Enclosure
SGCC
Mounting
Wall-Mount/DIN-Rail
Weight(Net)
0.6kg
Power Requirement
10 ~ 48 VDC
Power Consumption
2.2W @ 24VDC
Power Connector
1 x 3-Pin Terminal Block
Environment
Operating Temperature
-40~70°C
Storage Temparature
-40~85°C
Relative Humidity
5 ~ 95% (non-condensing)
Ingress Protection
IP30
Vibration Protection
2Grms, Random/Sine, 5 ~ 500Hz
