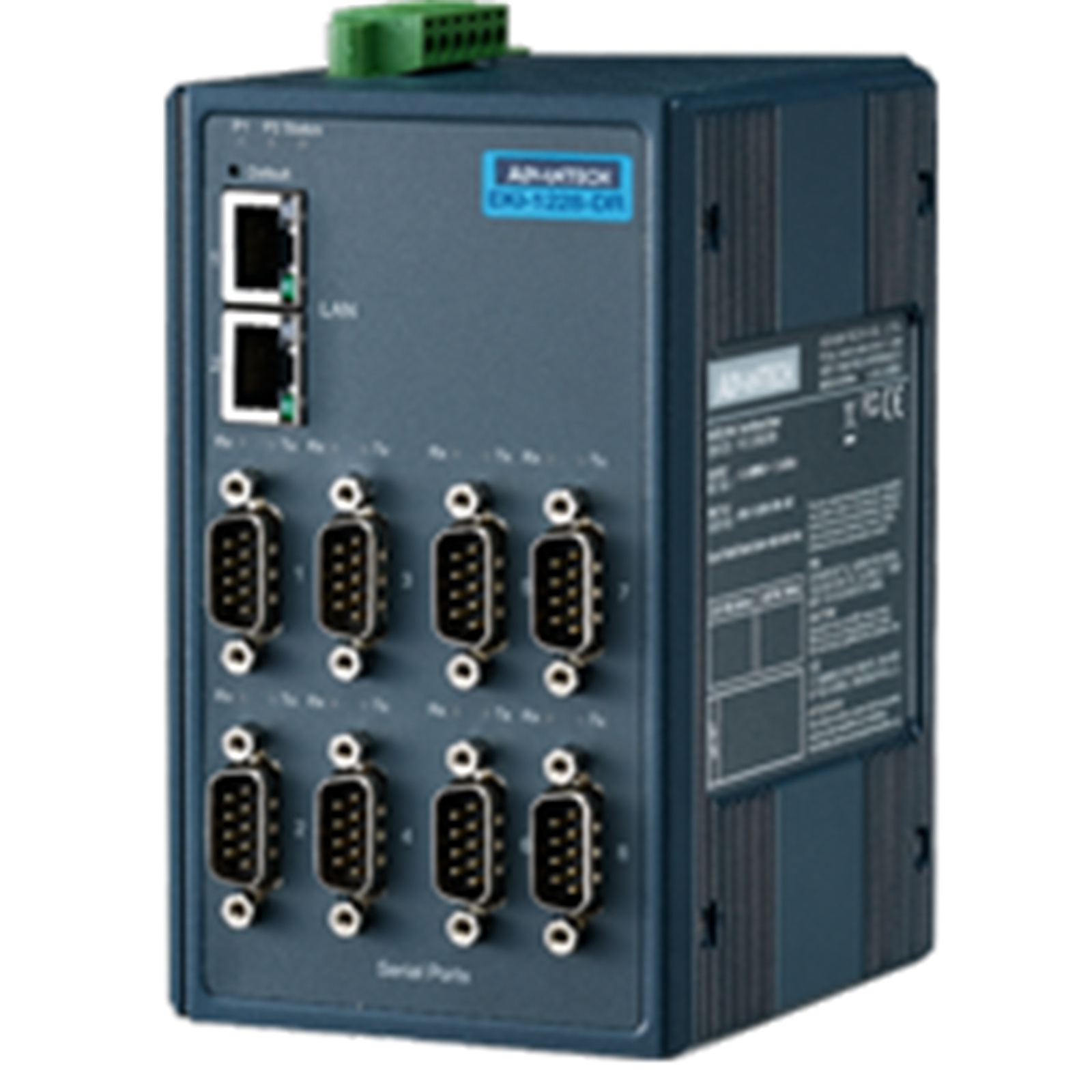

Advantech EKI-1228-DR-AE 8-Port Modbus Gateway

PB Tech price

AUD $ 1,352 .62

$ 1,352 .62

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-1228-DR-AE 8-Port Modbus Gateway

Brand: Advantech
MPN: EKI-1228-DR-AE
Part #: IPCAVH220421
UPC:

PB Tech price

AUD $ 1,352 .62

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: EKI-1228-DR-AE
Part #: IPCAVH220421
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

?- Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
-? Integration of Modbus TCP and Modbus RTU/ASCII networks
-? Supports up to 921.6 kbps, and any baud rate setting
?- Support up to 16 connections on each serial port under Modbus Client mode and 128 sessions under Modbus Server mode
?- Software selectable RS-232/422/485 communication
-? Mounts on DIN-rail and Wall mount
-? Built-in 15 KV ESD protection for all serial signals
-? Automatic RS-485 data flow control
?- Supports surge protection for D.C. power ports with line to line 2 KV, and line to earth 4 KV; for signal ports with 4 KV

Specifications

Ethernet Communications

Compatibility

IEEE 802.3, IEEE 802.3u

Speed

10/100 Mbps

No. of Ports

Port Connector

8-pin RJ45

Protection

Built-in 1.5 KV magnetic isolation

Serial Communications

Port Type

RS-232/422/485, software selectable

No. of Ports

Port Connector

DB9 male

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Odd, Even, Space, Mark

Flow Control

XON/XOFF, RTS/CTS, DTR/DSR

Baud Rate

50 bps ~ 921.6 kbps, any baud rate setting

Serial Signals

RS-232: TxD, RxD, CTS, RTS, DTR, DSR, DCD, RI,
GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485: Data+, Data-, GND

Protection

Built-in 15 KV ESD for all signals

Software

OS Support

Windows XP/7/8.1/10, Windows Server
2003/2008/2012/2016/2019, and Linux

Utility Software

Advantech EKI Device Configuration Utility

Operation Modes

Modbus RTU Client/Server mode
Modbus ASCII Client/Server mode

Configuration

Windows Utility, Web Browser

Protocols

ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, HTTP, DNS, SMTP, ARP, NTP

Mechanics

Dimensions (W x H x D)

86.6 x 140 x 95 mm (3.41" x 5.51" x 3.74")

Enclosure

Metal with solid mounting hardware

Mounting

DIN-rail, Wall

Weight

900g

General

LED Indicators

System: Power, System Status/LAN: Speed, Link/Active
Serial: Tx, Rx

Power Requirements

Input

12 ~ 48 VDC, redundant dual inputs

Connector

Terminal block

Consumption

Environment

Operating Temperature

EKI-1228-DR: -10 ~ 60°C (14 ~ 140°F)

Storage Temperature

-40 ~ 85°C (-40 ~ 185°F)

Operating Humidity

10 ~ 95% RH

Manufacturer Part No:

EKI-1228-DR-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220421

Product Model:

EKI-1228-DR-AE

Warranty: 12 months *
