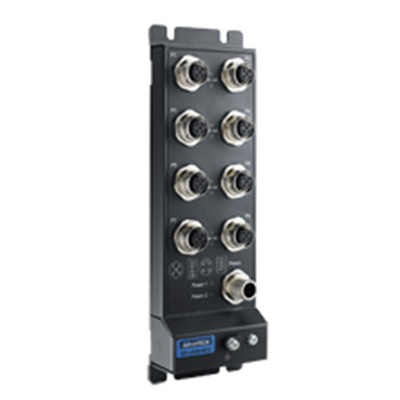

Advantech EKI-2528I-M12-AE 8 10/100Mbps M12 Unmanaged Ethernet Switch, IP67 Rating
Out of stock
Advantech EKI-2528I-M12-AE 8 10/100Mbps M12 Unmanaged Ethernet Switch, IP67 Rating
- Brand: Advantech
- MPN: EKI-2528I-M12-AE
- Part #: IPCAVH220476
- UPC:
- Brand: Advantech
- MPN: EKI-2528I-M12-AE
- Part #: IPCAVH220476
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Advantech EKI-2528I-M12-AE 8 10/100Mbps M12 Unmanaged Ethernet Switch, IP67 Rating
- Brand: Advantech
- MPN: EKI-2528I-M12-AE
- Part #: IPCAVH220476

Product URL: https://www.pbtech.com/product/IPCAVH220476/Advantech-EKI-2528I-M12-AE-8-10100Mbps-M12-Unmanag
Features
8FE M12 Unmanaged Ethernet Switch, IP67 Rating
- M12 Connectors and IP67 housing
- Provides 8 fast Ethernet ports with Auto MDI/MDI-X
- Supports 10/100 Mbps auto-negotiation
- Complies with IEC 61131-2 specifications
- Supports redundant 12 ~ 48 VDC power input
- Supports wide operating temperature range from -40 to 75 °C
- Complies with EN50155
Specifications
Certification
EMI
EN 61131-2, CE, CE-LVD, FCC Class A
EMS
EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4)
Safety
UL 61010
Environment
Temperature (Min. Operating)
-40°C (-40°F)
Temperature (Max. Operating)
75°C (167°F)
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
Fiber Port Number
-
Fiber Port Interface
-
Fiber Port Connector Type
-
Fiber Transmission Distance
-
Fiber Transmission Speed
-
RJ-45 Port Number
8
RJ-45 Port Connector Type
M12
RJ-45 Transmission Distance
100 m
RJ-45 Transmission Speed
10/100 Mbps
Mechanism
Mounting (DIN-rail)
Yes
Mounting (Stack)
-
Mounting (Panel)
-
Mounting (Wall)
Yes
Mounting (Rack Mount)
-
Mounting (Pole Mount)
-
Dimensions (W x H x D)
62 x 194 x 25 mm (2.44 x 7.63 x 1.00 in.)
Enclosure (Plastic)
-
IP Rating
IP67
PoE Information
PoE Port Number
-
PoE Budget
-
PoE Output
-
Support PoE
No
Power
Power Consumption
1.92W
Power Input (AC)
-
Power Input (DC)
12 ~ 48 VDC
Power Input (PoE)
-
Power Input (Battery)
-
Redundant Dual Inputs
Yes
