Advantech EKI-2712G-4FPI-AE 12 Port Gigabit Unmanaged Ethernet Switch with 8 PoE+ port,-40 75 ,48VDC
- Brand: Advantech
- MPN: EKI-2712G-4FPI-AE
- Part #: IPCAVH220507

Product URL: https://www.pbtech.com/product/IPCAVH220507/Advantech-EKI-2712G-4FPI-AE-12-Port-Gigabit-Unmana
Features

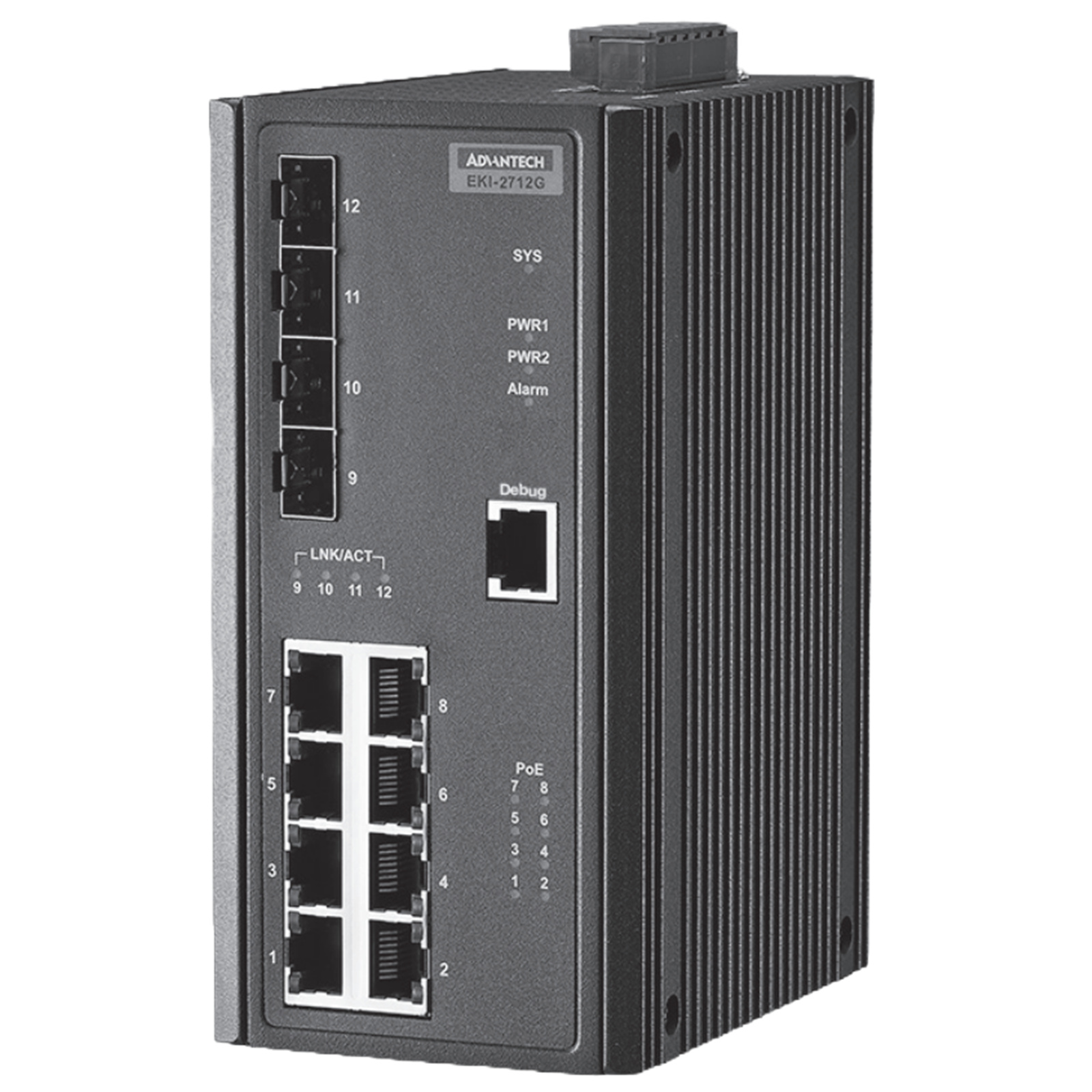

EKI-2712G-4FPI supports 8 Gigabit IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption PD (Power Device). The switch also features a wide -40° to 75°C operating temperature and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.
- 8 x IEEE 802.3 af/at PoE Gigabit ports + 4 x SFP ports
- SFP socket for easy and flexible fiber expansion
- NEMA TS2 for traffic control
- EN50121-4 approval for railway trackside deployment
- -40 ~ 75°C wide-range operating temperature
- Dual 48 VDC power input and 1 x relay output
Specifications
Model
EKI-2712G-4FPI-AE 8GE + 4SFP Port Unmanaged PoE Ethernet Switch w/Wide Temp
Interface
I/O Port
8 x 10/100/1000BASE-T/TX RJ-45
4 x SFP (mini-GBIC) port
Debug Port
RS-232 (RJ45)
Power Connector
6-pin screw Terminal Block (including relay)
Physical
Enclosure
Metal shell
Protection Class
IP 30
Installation
DIN-Rail

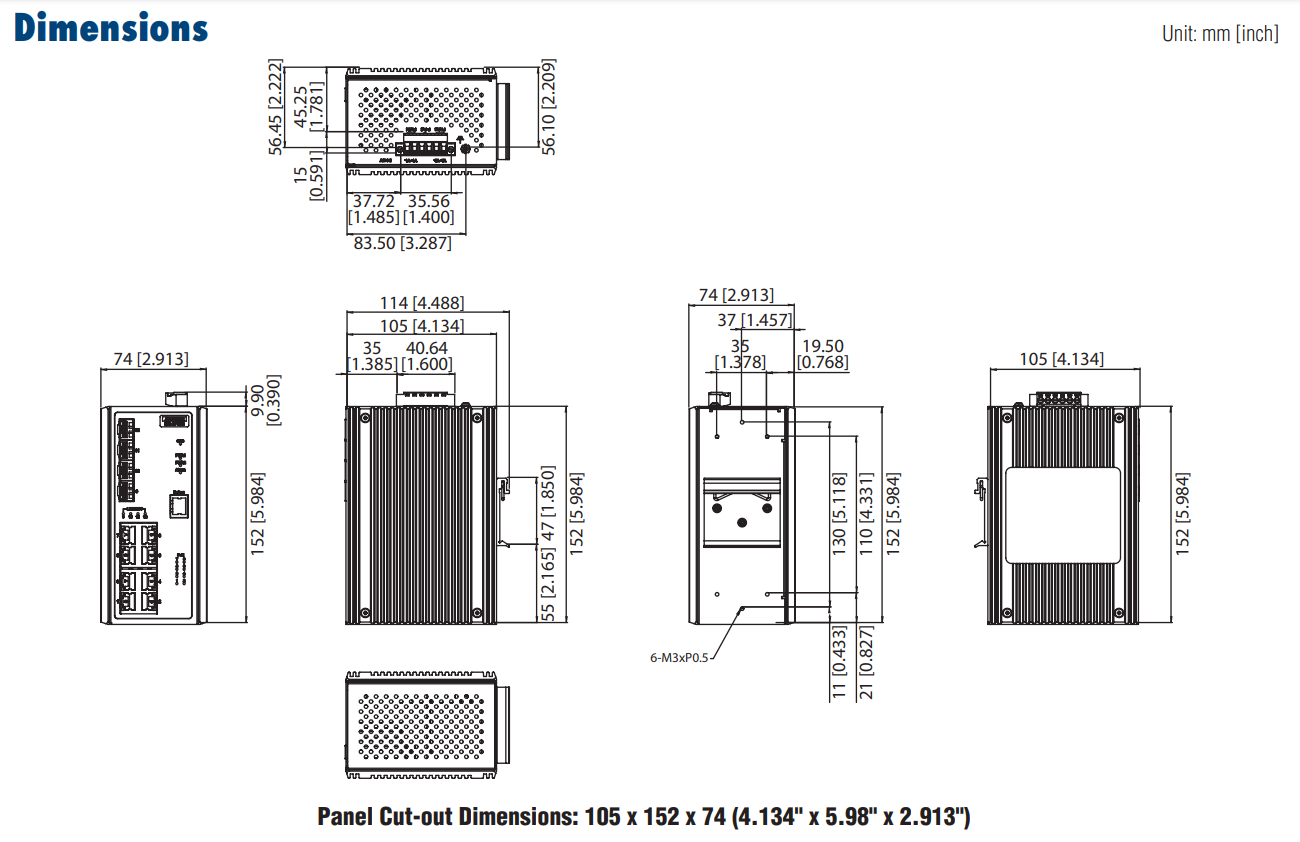

Dimensions (W x H x D)
74 x 152 x 105 mm (2.91" x 5.98" x 4.13")
LED Display
System LED
PWR1, PWR2, SYS, and Alarm
Port LED
Link / Speed / Activity
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C
Ambient Relative Humidity
10 ~ 90% (non-condensing)
Humidity
10 ~ 90% (non-condensing)
Power
Power Consumption Max.
12.1W @ 48VDC (System)
Power Input
48 VDC (46 to 57 VDC), 53 -57 VDC is recommended for 802.3at, redundant dual power input
Power Output
240W
Fault Output
1 Relay Output
Certification
EMI
CE, FCC Class A
Safety
UL61010
EMS
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN50121-4
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Traffic control
NEMA TS2
